Quick Details
-
Number of Row:
-
Single row
-
Model Number:
-
6902
-
Seals Type:
-
ZZ 2RS OPEN
-
Place of Origin:
-
Shandong, China
-
Material:
-
ZrO2 ceramic
-
Service:
-
OEM Customized Services
-
Stock:
-
Large
-
free Samples:
-
Avaliable
-
Certificate:
-
ISO9001:2008
-
Lubrication:
-
Oil
-
Package:
-
Tube
-
Cage:
-
ceramic cage
-
Feature:
-
Long Life ,High Speed
-
Item:
-
Full Ceramic Si3N4 Bearing
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Bore Size:
-
1 - 15 inch
-
Precision Rating:
-
P0 P6 P5 P4 P2
-
Number of Row:
-
Single row
-
Model Number:
-
6902
-
Seals Type:
-
ZZ 2RS OPEN
-
Place of Origin:
-
Shandong, China
-
Material:
-
ZrO2 ceramic
-
Service:
-
OEM Customized Services
-
Stock:
-
Large
-
free Samples:
-
Avaliable
-
Certificate:
-
ISO9001:2008
-
Lubrication:
-
Oil
-
Package:
-
Tube
-
Cage:
-
ceramic cage
-
Feature:
-
Long Life ,High Speed
-
Item:
-
Full Ceramic Si3N4 Bearing

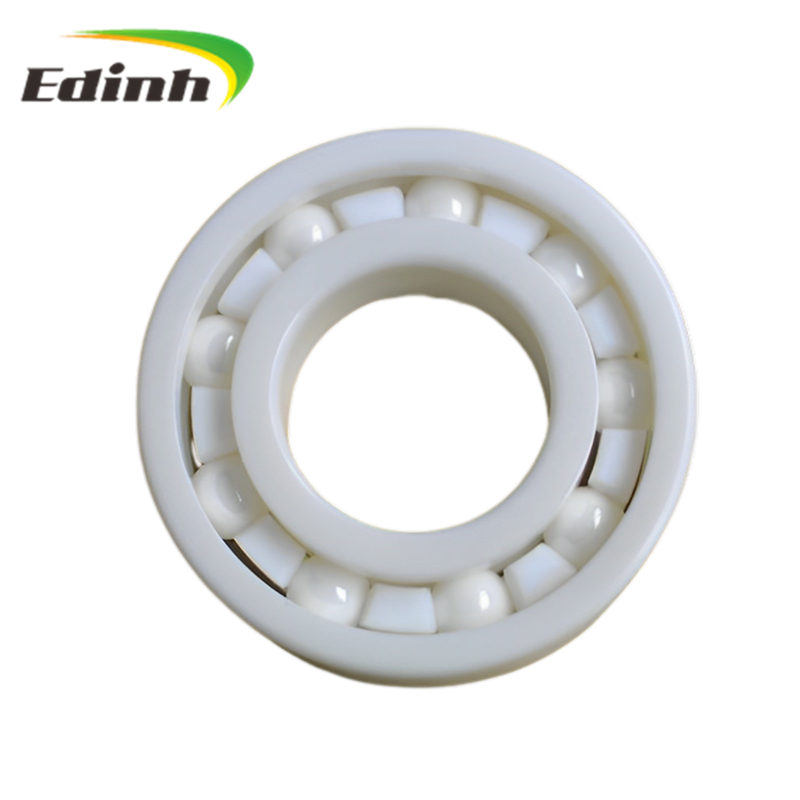

High Precision Heat Resistance Full Ceramic Si3N4 Bearing 6900 6901 6902 For Machine Tools
Product Description
Deep Groove ball bearings
are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders).
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders).
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
Full Ceramic bearing Applications:
* Aircraft generators
* Biotechnology equipment
* High speed machining and grinding spindles
* high speed mills
* Precision instruments
* Pumps and compressors
Other applications of ceramics
Ceramics can be used in place of steel for ball bearings. Their higher hardness means they are much less susceptible to wear and typically last for triple the lifetime of a steel part. They also deform less under load, meaning they have less contact with the bearing retainer walls and can roll faster. In very high speed applications, heat from friction during rolling can cause problems for metal bearings, which are reduced by the use of ceramics. Ceramics are also more chemically resistant and can be used in wet environments where steel bearings would rust. In some cases, their electricity-insulating properties may also be valuable in bearings. Two drawbacks to ceramic bearings are a significantly higher cost and susceptibility to damage under shock loads.
* Aircraft generators
* Biotechnology equipment
* High speed machining and grinding spindles
* high speed mills
* Precision instruments
* Pumps and compressors
Other applications of ceramics
Ceramics can be used in place of steel for ball bearings. Their higher hardness means they are much less susceptible to wear and typically last for triple the lifetime of a steel part. They also deform less under load, meaning they have less contact with the bearing retainer walls and can roll faster. In very high speed applications, heat from friction during rolling can cause problems for metal bearings, which are reduced by the use of ceramics. Ceramics are also more chemically resistant and can be used in wet environments where steel bearings would rust. In some cases, their electricity-insulating properties may also be valuable in bearings. Two drawbacks to ceramic bearings are a significantly higher cost and susceptibility to damage under shock loads.
size information
|
Item
|
ID(mm)
|
OD(mm)
|
Width(mm)
|
Cr(kN)
|
Cor(KN)
|
|
6900
|
10
|
22
|
6
|
2700
|
1250
|
|
6901
|
12
|
24
|
6
|
2900
|
1450
|
|
6902
|
15
|
28
|
7
|
4300
|
2250
|
|
6903
|
17
|
30
|
7
|
4600
|
2550
|
|
6904
|
20
|
37
|
9
|
6350
|
3700
|
|
6905
|
25
|
42
|
9
|
7000
|
4550
|
|
6906
|
30
|
47
|
9
|
7250
|
5000
|
|
6907
|
35
|
55
|
10
|
10900
|
7750
|
|
6908
|
40
|
62
|
12
|
13700
|
9950
|
|
6909
|
45
|
68
|
12
|
14100
|
10900
|
Our Main Products
|
1
|
Deep groove ball bearings
|
|
2
|
Insert bearings
|
|
3
|
Angular contact ball bearings
|
|
4
|
Self-aligning ball bearings
|
|
5
|
Thrust ball bearings
|
|
6
|
Cylindrical roller bearings
|
|
7
|
Needle roller bearings
|
|
8
|
Tapered roller bearings
|
|
9
|
Spherical roller bearings
|
|
10
|
Toroidal roller bearings
|
|
11
|
Cylindrical roller thrust bearings
|
|
12
|
Needle roller thrust bearings
|
|
13
|
Tapered roller thrust bearings
|
|
14
|
Spherical roller thrust bearings
|
|
15
|
Ball and roller screws
|
|
16
|
Linear guides and tables
|
|
17
|
Pollow block bearing
|
|
18
|
Wheel Bearings
|
|
19
|
Cam followers
|
|
20
|
Track rollers
|
|
21
|
Super-precision bearings
|
|
22
|
Plain bearings/Rod end bearings
|
|
23
|
Bearing Units
|
|
24
|
Bearing Housings
|
Packing & Shipping
|
package
|
1)Neutral package + carton package 2)Carton package + pallet 3)Wood package + pallet
|
|
Delivery Time
|
1-3 days after order
|
|
Shipping
|
by air to door address / by sea to sea port
|
