- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONETOP
-
Year:
-
2023
-
Voltage:
-
380V 50HZ 3Phase (Customized)
-
Dimension(L*W*H):
-
2300*950*2050mm
-
Hollow part volume:
-
7-25L
-
Clamping Force (kN):
-
60
-
Power (kW):
-
36
-
Weight (KG):
-
2600 KG
-
Bottle Preform:
-
PET
-
Air Compressor:
-
Shangair
-
Air Tank:
-
1Set
-
Air Dryer:
-
1 Set
-
Air Filter:
-
2 Sets
-
Water Chiller:
-
1Set
-
High Pressure Oil Pipe:
-
10m
-
Spare Part With Seals:
-
1 Set
-
Volume:
-
13.5 m2
-
Free Service:
-
Bottle Drawing
Quick Details
-
Neck Diameter(mm):
-
55 mm
-
Max.Bottle Diameter(mm):
-
280 mm
-
Max.Bottle Height(mm):
-
510 mm
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONETOP
-
Year:
-
2023
-
Voltage:
-
380V 50HZ 3Phase (Customized)
-
Dimension(L*W*H):
-
2300*950*2050mm
-
Hollow part volume:
-
7-25L
-
Clamping Force (kN):
-
60
-
Power (kW):
-
36
-
Weight (KG):
-
2600 KG
-
Bottle Preform:
-
PET
-
Air Compressor:
-
Shangair
-
Air Tank:
-
1Set
-
Air Dryer:
-
1 Set
-
Air Filter:
-
2 Sets
-
Water Chiller:
-
1Set
-
High Pressure Oil Pipe:
-
10m
-
Spare Part With Seals:
-
1 Set
-
Volume:
-
13.5 m2
-
Free Service:
-
Bottle Drawing
Products Description

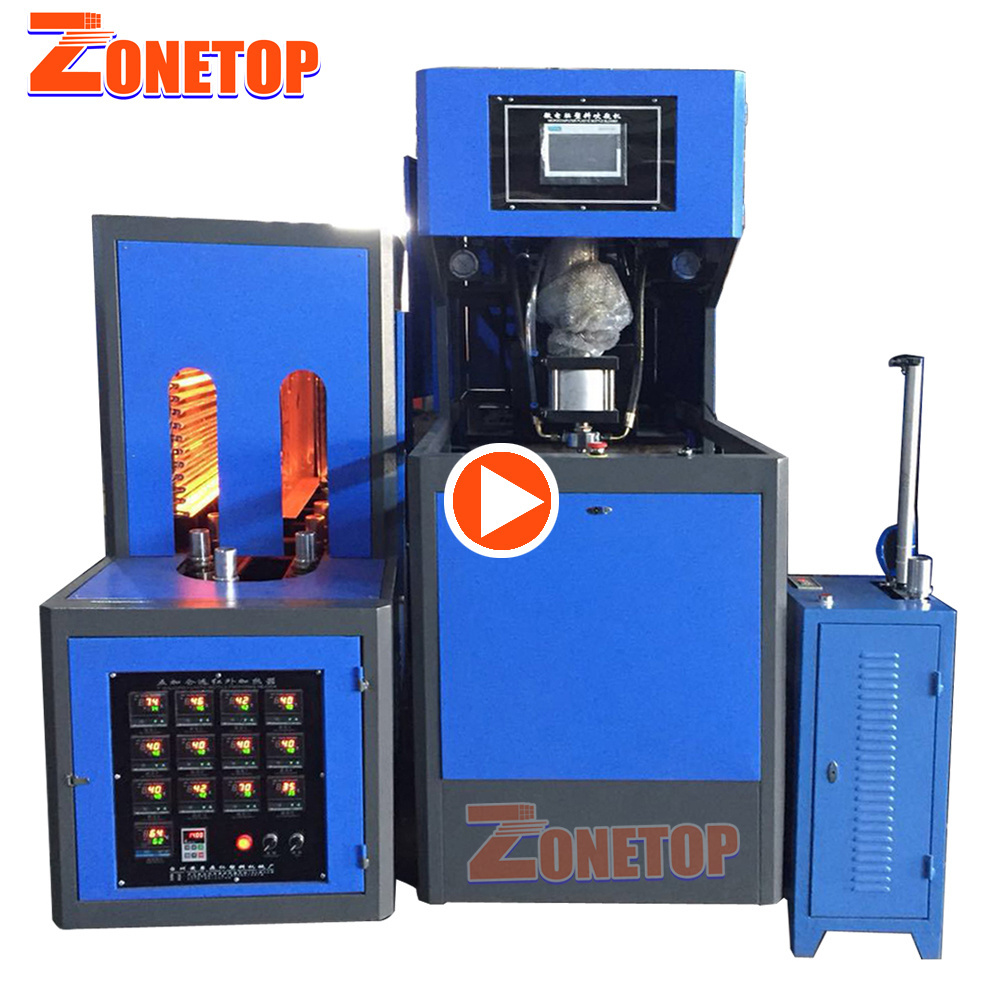

Semi automatic bottle blowing machine is especially used to produce 7-25L PET bottles
1). Easy to Operate
(The One Person without special training operates it easily and safely.)
2). FESTO Components
3). Inner Heating
4). It is widely used to produce PET bottle ranging from 7L to 25L
(especially 3 and 5 gallon water bottles).
5.Supply PET Preform, Bottle Cap and Label
Engineering item:
1 .Capacity: 90pcs/hr for 20L
2 . volume of product: 7L-25L
3 . Workers: 1 workers
4 .Application for :Water bottle ,Oil bottle ,PET jar
5 .Total power :43kw ; Actual power :23kw
6 .Power: 380V 50hz 3phase (Customized)
7.Occupy area : 50M2
Semi automatic bottle blowing machine
Equipment list:
|
ITEMS
|
NAME
|
MODEL
|
QUA.
|
NOTE
|
||||
|
1
|
Semi automatic bottle Blowing Machine
(Capacity: 90-120 pcs/hour for 5 gallon PET Bottle)
|
ZONETOP
|
1set
|
1pc blower +1pc oven And inside thickness heater
|
||||
|
2
|
Blowing mould
|
20L
|
1set
|
|
||||
|
3
|
HP Air Compressor
|
1.58m3 /min 30Kg
|
1set
|
|
||||
|
4
|
Air tank
|
1.0m3 /min30kg
|
1set
|
|
||||
|
5
|
Air dryer
|
3.0m3 /min30kg
|
1set
|
|
||||
|
6
|
Air filter
|
3.0m3 /min30Kg
|
2set
|
|
||||
|
7
|
Water Chiller
|
3HP
|
1set
|
|
||||
|
8
|
High pressure oil pipe
|
|
10m
|
Free
|
||||
|
9
|
Spare part with seals
|
|
1set
|
Free
|
||||
|
Spare parts list :Seal cushion(10pcs); Lamps(3pcs); Fuse(3pcs); Switch(1pcs); breaker(1pcs); Silicon controlled (1pcs) pressure adjust (1pc)
|
|
|
|
|
||||
Note:the quotation is based on 380V,50HZ, 3 Phases,for special voltage. Please inform me
Package
:
Standard export
wooden case
Delivery time
: 25 working days after receive down payment.
Guarantee time
: 12monthes after machines running in buyer's factory.
Payment terms:
30% as down payment, 70% before shipping, T/T OR L/C.
Details Images
If you would like to involve in bottle making machine, we can help for bottle design based on your preferable bottle shape-size.
