Quick Details
Quick Details
-
Weight (KG):
-
68
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Orchid Energy
Products Description

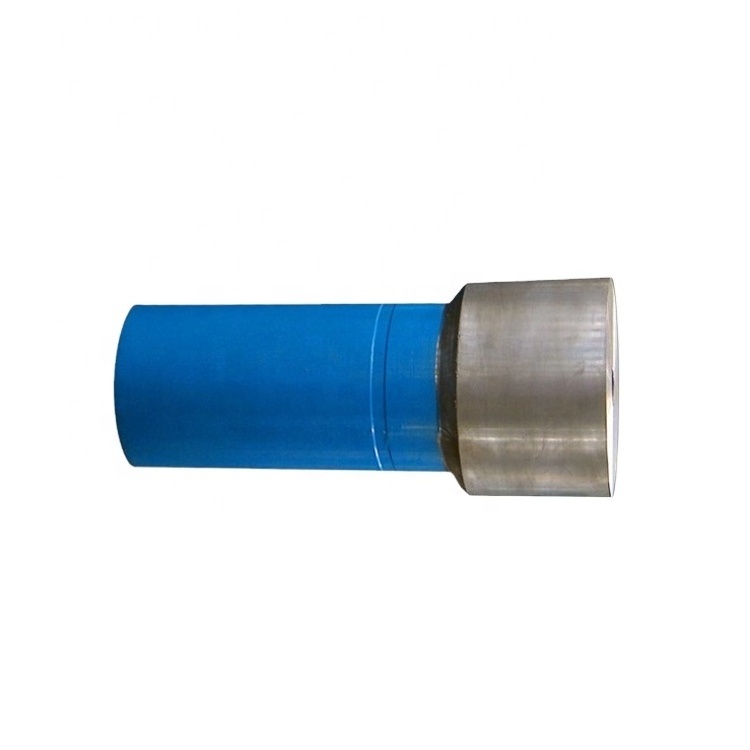

Impression block is used for judging the depth of fish and shape of fish’s top. To make workers know the shape of fishing top and location and choose suitable fishing tools to fish successfully.
Impression block is made of joint steel body and Pub rooted in bottom of joint steel body, there is a circle hole in center of impression block to circle drill fluid. there is ring groove on the casting part of joint so that fixing impression block, joint connects with pipe string with its upper connection thread.
Working Principle
The working principle of the impression block involves the use of a soft material, such as lead, to create an impression of the downhole feature. The tool is typically run on a wireline or slickline, and when it comes into contact with the feature, the soft material deforms and takes its shape. This impression is then analyzed and measured to gather relevant data.
Orchid Energy's Capabilities:
At Orchid Energy, we specialize in manufacturing high-quality impression blocks that meet international standards and exceed customer expectations. We offer both standard specifications and customized solutions, catering to the unique requirements of our clients. Our products are known for their superior quality, reliability, and competitive pricing. We are committed to delivering cost-effective solutions that adhere to the highest safety and performance standards. Orchid Energy takes pride in providing exceptional customer service and support throughout the entire process, from product selection to after-sales assistance. Our impression blocks are designed and manufactured with precision, ensuring accurate measurements and reliable performance in various wellbore conditions.
Specification
|
Model
|
Conn.
|
OD mm(inch)
|
ID mm(inch)
|
OAL mm(inch)
|
|
PQY406
|
7 5/8REG
|
406(16)
|
35(1 3/8)
|
483(19)
|
|
PQY206
|
NC50
|
206(8 1/8)
|
30(1 3/16)
|
420(16 35/64)
|
|
PQY168
|
NC50
|
168(6 5/8)
|
30(1 3/16)
|
400(15 3/4)
|
|
PQY130
|
NC38
|
130(5 1/8)
|
20(25/32)
|
380(14 31/32)
|
|
PQY127
|
3 1/2REG
|
127(5)
|
20(25/32)
|
380(14 31/32)
|
|
PQY105
|
2 3/8REG
|
105(4 1/8)
|
15(19/32)
|
360(14 11/64)
|
