Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Golden Bridge
-
Model Number:
-
JQT-1500-C
-
Voltage:
-
350V/50Hz
-
Max Pressure:
-
24kPa Air Blower
-
Vacuum:
-
-18kPa
-
Output:
-
210m3/h Air Blower
-
Weight:
-
25kg
-
Dimension:
-
345*360*371mm
-
Invertory:
-
In stock
Quick Details
-
Application:
-
Air Blower
-
Pressure:
-
High Pressure
-
Warranty:
-
1 years, 1.5 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Golden Bridge
-
Model Number:
-
JQT-1500-C
-
Voltage:
-
350V/50Hz
-
Max Pressure:
-
24kPa Air Blower
-
Vacuum:
-
-18kPa
-
Output:
-
210m3/h Air Blower
-
Weight:
-
25kg
-
Dimension:
-
345*360*371mm
-
Invertory:
-
In stock

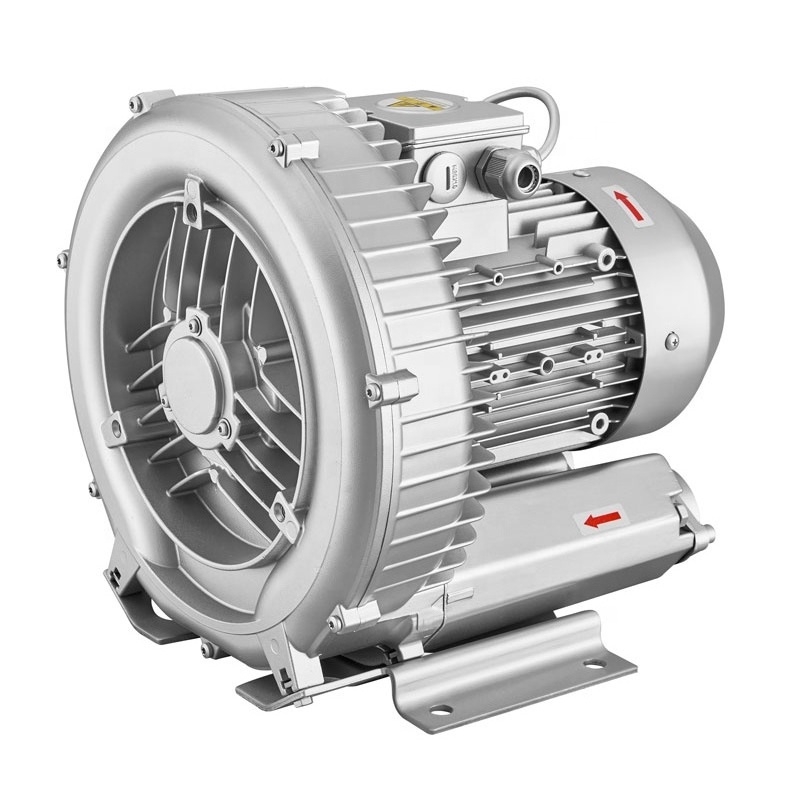

JQT 1.5KW 380V Power Tools electric Ring Blower JQT-1500-C
| Model Number | JQT1500C |
| Structure | Single stage |
| Type | Air Blower |
| Pressure | High pressure |
| Power source | Electric Blower |
| Rated voltage | Single phase 220V or other |
| Rated power | 1500W |
| Max pressure | 25Kpa |
| Max vacuum | -18Kpa |
| Maximum flow | 210m3/h |
| Weight | 25Kgs |
| Outline dimension | 345mm*360mm*371mm |
| Insulation | F |
| Certification | CE |
| Application | Used in filter cigarette shapers pulverizing |
| Place of origin | Shandong China(Mainland) |
| Brand Name | Golden Bridge |
| Warranty | 1 year |
Double Stage Ring Blower
Principle
The impellers in the R_series machines are mounted directly on the motor shaft for noncontact compression entirely without friction.Maximum operational reliability,even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.
The gas it taken in through the inlet 1 .As it enters the side channel 2 ,the rotating impeller 3 imparts velocity to the gas in the direction of rotation.Centrifugal force in the impeller blades aceelerates the gas outward and the pressure increase.Every accelerates the gas outward and the pressure increase.Every rotation adds kinetic energy resulting in the further increase of the pressure along the side channel.The side channel narrow at the rotor,sweeping the gas off the impeller blades and discharging it through the outlet silencer4 where it exits the side channel blower.
Machine Fittings
Q1:How long can I get the feedbacks after we sent the inquiry?
We will reply you within 12 hours in working day.
Q2:Are you direct manufacturer or trading company?
We have our own factory and international department.
We produce and sell all by ourselves.
Q3:How to guarantee the quality and after s a les service of your goods?
1,Strict detection during production.
2,Strict sampling inspection on products before shipment and intact product packaging are insured.
3,Follow up and adopt customers feedbacks in a timely manner after sales.
Q4:What is your warra
nty term?
There is a 12 months warra
nty for our export products from the date of shipment.If warr
a
nty has run out,our customer should pay for the replacement parts.
Q5:Is the sample available?
Yes,Usually we send our sample by DHL,TNT,FEDEX or UPS,it will take around 3 or 4 days for our customers to receive them,but customer will charge all cost related to the samples,such as sample cost and air freight.We will refund our customer the sample cost after receiving the order.
Note:
Please leave me the supply you used.
Such as,220V or 380V or Others? 50Hz or 60Hz?Single phase or three phase?
Or other special requirements to make sure the machine will work well.
