- Product Details
- {{item.text}}
Quick Details
-
Output Voltage (V):
-
DC12-36V
-
Output Frequency:
-
50/60HZ
-
Pre-sales project design:
-
support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COMLEDS
-
Model Number:
-
EGWT
-
Output Voltage (V):
-
DC12-36V
-
Output Frequency:
-
50/60HZ
-
Pre-sales project design:
-
support
Good Quality 1Kw Price 10 Kw 3Kw 15Kw Machine Vertical 600W Mini Wind Turbine
why chooes us?
portable wind turbine
why chooes us?
generator 220v 10kw vertical axis turbines 230v 3kw prices 5kw wind turbine fan
why chooes us?
Product application
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
|
Packing list (Average daily energy storage 3-5kw/h) |
||
| Item | Model | Quantity |
| 1 | Wind turbine(1kw-M5) | 1 |
| 2 | Wind controller | 1 |
| 3 | Inverter | 1 |
| 4 | Battery(12v100Ah) | 2 |
| 5 | Tower 6m(3m*2) | 1 |
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
Technical parameter
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
|

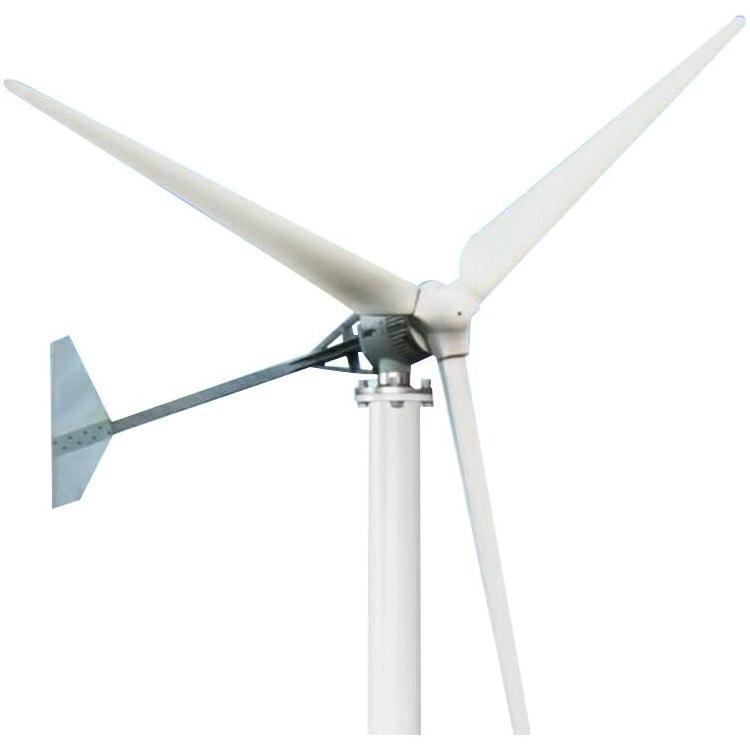

Wind turbine 1kw |
Model | ES-1000-M5 | ES-1000-L |
| Picture | |||
| Rated power | 1000W | 1000W | |
| Maximum power | 1050W | 1500w | |
| Rated voltage | 48V | 48V | |
| Start-up wind speed | 2.5m/s | 3m/s | |
| Rated wind speed | 12.5m/s | 10m/s | |
| Survival wind speed | 40m/s | 45m/s | |
| Top net weight | 30kg | 37kg | |
| Wheel diameter | 2.4m | 2.8m | |
| Number of blades | 3 | 3 | |
| Blades material | Nylon fiber | Nylon fiber/reinforced glass fiber | |
| Generator | Three phase permanent magnet ac synchronous generator | Three phase permanent magnet ac synchronous generator | |
| Magnet | NdFeB | NdFeB | |
| Generator case | Casting aluminum alloy | Casting aluminum alloy | |
| Control system | Electromagnet/wind wheel yaw | Electromagnet/wind wheel yaw | |
| Speed regulation | Automatically adjust windward direction | Tail furling | |
| Working temperature | -40℃-80℃ | -40℃-80℃ | |
| Suggest tower height (m) | 6m(3m*2) | 6m(3m*2) | |
|
Wind Controller 1kw |
Product Model | WWS10-24-N | WWS10-48-N |
| Rated Battery Voltage | 24V | 48V | |
| Rated Wind Turbine Input Power | 1kw | 1kw | |
| Maximum Wind Turbine Input Power | 1.5kw | 1.5kw | |
| Wind Turbine Brake Current | 42A | 21A | |
| Rated Solar Input Power | 300w | 300w | |
| Floating Charging Voltage | 29V | 58V | |
| Display Mode | LCD | ||
| Quiescent Current | ≤20mA | ||
| Ambient Temperature & Humidity | -20~+55℃/35~85%RH(Without Condensation) | ||
| Communication Mode (Optional) | RS232,RS485,RJ45,GPRS (optional) | ||
| Temperature Compensation Function (Optional) | -4mV/℃/2V ,–35℃--+80℃ ,Precision:±1℃ | ||
|
Dimension (L x W x H) |
440×425×170mm | ||
| Net Weight | 11kg | ||
| Data for Micro Current Charge Function | |||
| Wind Turbine Start Charge Voltage | 12V | 24V | |
|
Dimension (L x W x H) |
Controller Box: 440×300×170mm | Dumpload Box: 300×190×120mm | |
| Dumpload Box: 410×270×175mm | Controller: 7.5kg ; Dumpload Box: 3.5kg | ||
| Net Weight | |||
| Data for Low Voltage Charge Function | |||
| Wind Turbine Start Charge Voltage | 4V | 8V | |
| Input Admittance Value | 10/15 | 10/60 | |
|
Dimension (L x W x H) |
Controller Box: 440×305×170mm | Controller Box: 440×305×170mm | |
| Dumpload Box: 410×270×175mm | Dumpload Box: 300×190×120mm | ||
| Net Weight |
Controller: 7.5kg ; Dumpload Box: 7kg |
Controller: 7.5kg ; Dumpload Box: 3.5kg |
|
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||
| ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbineInverter | Model | ES-1210 | ES-1220 |
| Rated power | 1000W | 2000W | |
| Peak Power | 3000W | 6000W | |
| Battery Voltage | 12VDC/24VDC/48VDC | ||
| Working Model | PV(Phtovoltaic priority)/AC( AC priority) optional | ||
| Machine size | 520*280*180mm | ||
| Net weight | 12KG | 17KG | |
| Input | |||
| Mains input voltage range | 160-280VAC | ||
| Mains input frequency range | 45Hz-65Hz | ||
| DC input voltage range | 10.5VDC-15VDC (Single cell voltage) | ||
| Output | |||
| Inverter output efficiency | Inverter efficiency≈90% | ||
| Inverter output voltage | 110V/120V/220V230V/240VAC±1% Battery mode | ||
| Inverter output frequency | 50H2/60Hz | ||
| Inverter output waveform | Pure sine wave | ||
| Mains output voltage range | 110V/120V/220V/230V/240VAC±10% | ||
| Mains output frequency range | Intelligent recognition | ||
| Protect | |||
| Battery overvoltage protection | 16.5v machine alarm,17.5 v shutdown protection, below15.5v automatic startup | ||
| Overload alarm | Alarm at 110% load, shutdown at 120% load for one minute, and shutdown at 150% load for three seconds. Automatic startup when load islower than 98% | ||
| Other protection | Under voltage protection, over voltage protection, short circuitprotection, over input protection, over input protectionover temperature protection,ect | ||
| LCD display | mains mode≥86% | ||
| UPS priority DC | Mains priority, inverter backup | ||
| UPS priority AC | Inverter priority, mains backup | ||
| Battery compatibility | Lead acid battery/ lithium battery (optional) | ||
| Charging mode | Three stage charging: constant current, constant voltage and floating charging | ||
| Intelligent fan control | Implement intelligent speed regulation according to the internal temperature of the machine | ||
| Switching time | <3ms | ||
| Working environment temperature/ humidity | Intelligent recognition | ||
| Pure copper ring transformer | Standard | ||
| AVR voltage stabilizing function | Standard | ||
| ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine Battery | |||
|
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine Guyed cable tower WITH LOCKING POLE 6 METER |
|||
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
Working principle
To convert the kinetic energy of wind into mechanical kinetic energy, and then convert the mechanical energy into electric kinetic energy, this is wind power generation. The principle of wind power generation is to use the wind to drive the blades of the windmill to rotate, and then through the booster engine to increase the speed of rotation, so as to promote the power generation of the generator. According to the windmill technology, about three meters per second of breeze speed (the degree of breeze), you can start generating electricity. Wind power is becoming a worldwide craze because it doesn't require fuel, radiation or air pollution.
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
For homes winESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
advantage
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
Certification and reporting
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
Packaging and transportation
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
Project display
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
Company profile and team
ESG New Energy Technology Co. Ltd Committed to engage in off-grid system, We are producing batteries, pure sine wave inverter,solar controller , wind and solar power generation system ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine, We have a ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine line and scientific quality management system. Development and sales of high-tech enterprises.
Our factory has 33 years history, we have 3 brand in China. ESG was established in 2013, a newest brand are specialized in solve green energy project.
high-quality, high efficiency, ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
Exhibition
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
FAQ
1. Q: Does installation Easy ?
A: Very easy, every customer can do it by themselves, we will supply all the components for installation and very details installation manual.
2. Q: Does our wind is enough for a wind generator ?
A: As our wind generator can start running at low wind speed2.5m/s. so your average annual wind speed is more than 5m/s then you can use it .
3. Q: Which model of wind generator is suitable for me?
A: Please contact our sales with following points :
1. What appliance do you want to running by the system? How many watts are they and their working time .
2. Your annual wind speed .
3. What kinds of system do you want ? On-grid or off-grid
4. Q: Can I only buy parts not whole system?
A: Yes, for example you can manufacture tower on local , we can supply you tower drawing.
5. Q: For horizontal axis wind turbines VS vertical axis wind turbines, which kind of efficiency is better.
A: For same model at same wind speed, the output of horizontal axis wind turbines is more efficient than that of vertical axis wind turbines
Welcome for contacting with us
