Quick Details
-
Graphic Format Supported:
-
AI, PLT, BMP, Dwg
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Grentsun
-
Dimension(L*W*H):
-
70cm*48cm*58cm
-
Weight (KG):
-
85 KG
-
Core Components:
-
Laser source, Galvanometer, Lens, Mother board
-
marking speed:
-
≤7000mm/s
-
laser power:
-
30w 60w
-
frequency:
-
20KHZ-80KHZ
-
marking area:
-
110*110mm/200*200mm/300*300mm/400*400mm
-
cooling system:
-
air cooling
-
Laser wavelength:
-
10.6um/10.2um/9.3um
-
Laser source:
-
Synrad / Coherent
-
Lifetime of source:
-
20,000hrs
Quick Details
-
Engraving Area:
-
110*110mm/200*200mm/300*300mm/400*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
≤7000mm/s
-
Graphic Format Supported:
-
AI, PLT, BMP, Dwg
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Grentsun
-
Dimension(L*W*H):
-
70cm*48cm*58cm
-
Weight (KG):
-
85 KG
-
Core Components:
-
Laser source, Galvanometer, Lens, Mother board
-
marking speed:
-
≤7000mm/s
-
laser power:
-
30w 60w
-
frequency:
-
20KHZ-80KHZ
-
marking area:
-
110*110mm/200*200mm/300*300mm/400*400mm
-
cooling system:
-
air cooling
-
Laser wavelength:
-
10.6um/10.2um/9.3um
-
Laser source:
-
Synrad / Coherent
-
Lifetime of source:
-
20,000hrs
|
Name of Series
|
GSL series
|
|
Product Name
|

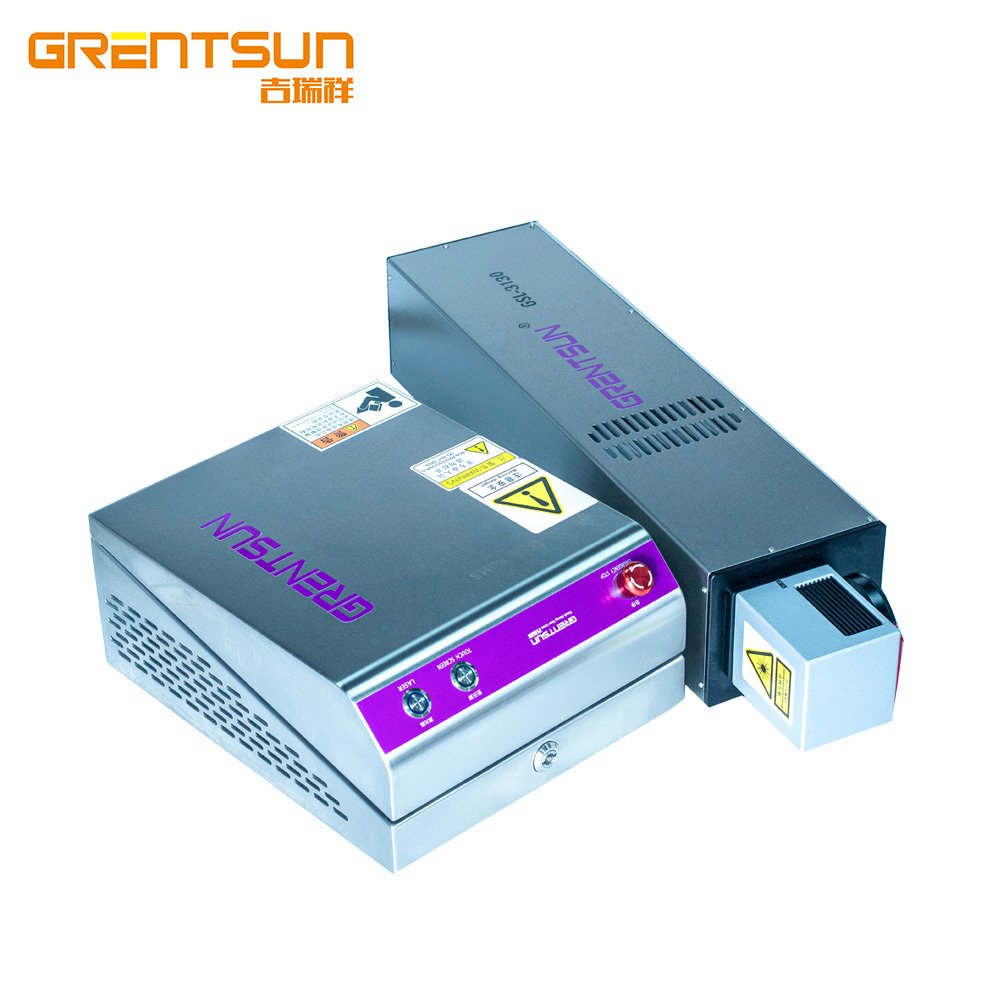

zippo lighter laser date code pet bottles direct selling 30w 60w laser engraver automatic 9.3um 10.2um 10.6um co2 laser marking
|
|
Laser Power
|
30W/55W
|
|
Laser Wavelength
|
9.3um/10.2um/10.6um
|
|
Laser Beam Quality
|
M2:<1.8
|
|
Beam Diamater
|
6-8mm
|
|
Repeat Frequency
|
20KHz-100KHz
|
|
Repeat Positioning Accuracy
|
0.025mm
|
|
Min.Linear Width
|
0.05mm
|
|
Marking Depth
|
≤2mm(varies with material)
|
|
Max.Marking Speed
|
7000mm/s
|
|
Optional Marking Area
|
110*110mm/150*150mm/175*175mm/300*300mm/400*400mm
|
|
Ranted Power
|
<500W
|
|
Rated Voltage
|
220V/50Hz/15A(optional)
|
|
Cooling
|
Water Cooling/Air Cooling
|
|
Lifetime of source
|
20,000hrs
|
|
Warranty
|
1 year for complete machine,2 years for core parts
|
|
Gross Weight
|
85kg
|
|
Dimension of Package
|
860*760*720mm
|
|
Space Needed
|
1550*1000*600mm
|
