Controlling airflow is very important during roast, Normally, we control airflow is only by manual damper.
But once you forget to clean up the exhaust pipe and exhaust fan motor in time, the dust and chaff may block the pipe or motor, or
if you meet the bad weather (like strong wind, heavy rain etc.), you may not get exact pressure value by manual damper.Then the
hot air pressure gauge can help you get the real airflow pressure value in any condition, that makes your roast more
precisely.
- Product Details
- {{item.text}}
Quick Details
-
Function:
-
Heat Adjustment
-
Power (W):
-
500
-
Voltage (V):
-
220
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WINTOP
-
Model Number:
-
WS-3
-
roaster drum:
-
Double-walled drum coffee roaster
-
Batch Roasting Capacity:
-
500g to 3.2kg
-
Roasting Time:
-
10-15 minutes/per drum
-
Hourly capacity:
-
3kg to 15kg green coffee beans
-
Heating Source:
-
: LPG/NG/PROPANE/Electric infrared
-
Heating Power:
-
8000W (Electric roaster model only)
-
Temperature Range:
-
0-300C
-
Roaster Weight:
-
N.W.:180kg, G.W.:310kg
-
Machine Dimension::
-
1120*730*1250 mm
-
Applications:
-
Cafe, coffee shop, restaurant, coffee House, Roastery house
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Hotel, Commercial
-
Type:
-
Commercial, Drum Coffee Roaster
-
Function:
-
Heat Adjustment
-
Power (W):
-
500
-
Voltage (V):
-
220
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WINTOP
-
Model Number:
-
WS-3
-
roaster drum:
-
Double-walled drum coffee roaster
-
Batch Roasting Capacity:
-
500g to 3.2kg
-
Roasting Time:
-
10-15 minutes/per drum
-
Hourly capacity:
-
3kg to 15kg green coffee beans
-
Heating Source:
-
: LPG/NG/PROPANE/Electric infrared
-
Heating Power:
-
8000W (Electric roaster model only)
-
Temperature Range:
-
0-300C
-
Roaster Weight:
-
N.W.:180kg, G.W.:310kg
-
Machine Dimension::
-
1120*730*1250 mm
-
Applications:
-
Cafe, coffee shop, restaurant, coffee House, Roastery house
Product Description

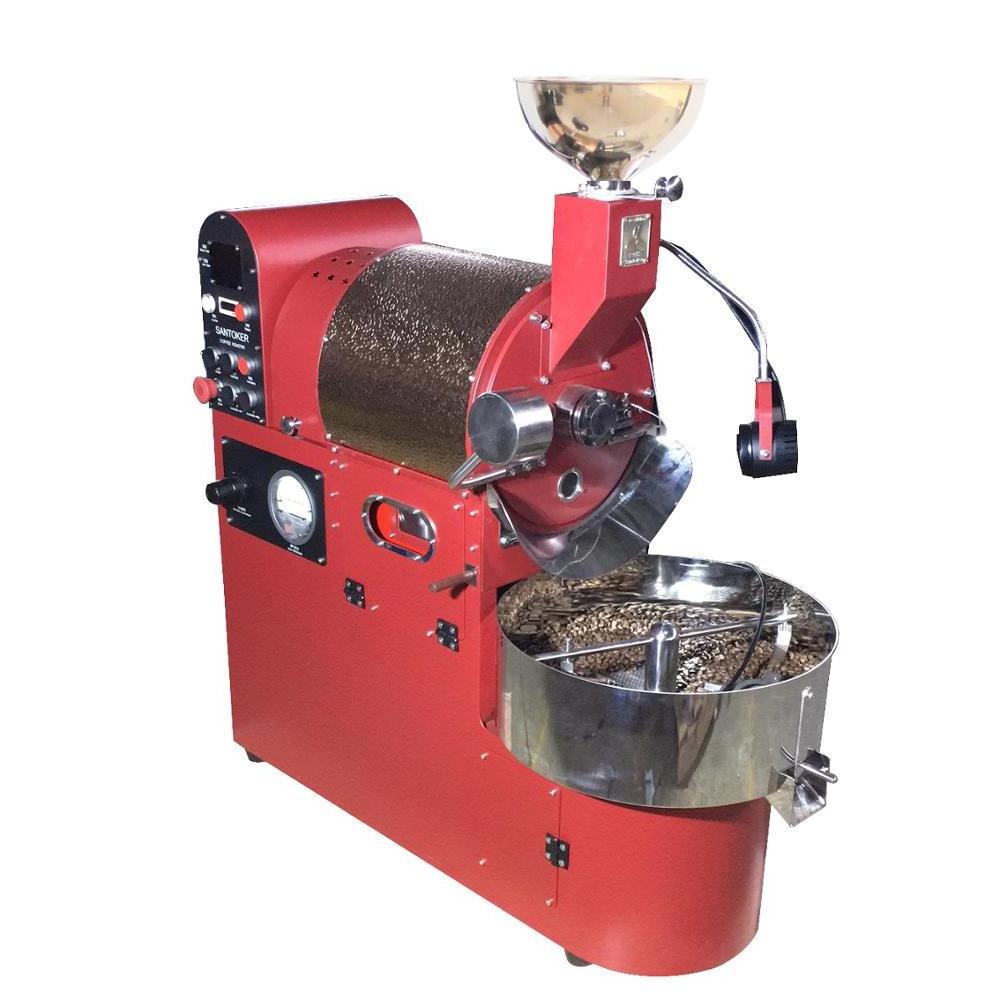

Best selling coffee roaster santoker coffee roasters 3kg gas with double layer carbon steel shaftless drum
If you compared coffee roasters (2-3kg) with several suppliers already, but still don't know how to select a coffee roaster in
high performance but an affordable price?
WS series 3 kg coffee roaster is your answer, it is built with first-class craftsmanship and best drum carbon steel materials from around the world, also with highest technology. It is the most popular item selected by coffee shop owners. It can evenly roast coffee beans from 500g to 3200g, meet the need of cafes ,coffee shop ,coffee roastery.
high performance but an affordable price?
WS series 3 kg coffee roaster is your answer, it is built with first-class craftsmanship and best drum carbon steel materials from around the world, also with highest technology. It is the most popular item selected by coffee shop owners. It can evenly roast coffee beans from 500g to 3200g, meet the need of cafes ,coffee shop ,coffee roastery.
|
WS-3 Coffee roaster Parameters
|
Technical Parameter
|
|
|
Model
|
WS-3
|
|
|
Warranty
|
1 Year
|
|
|
Motors
|
4
|
|
|
Drum Material
|
Double Wall Carbon Steel
|
|
|
Power (W)
|
Electric heating model 8Kw/Gas model 1000w
|
|
|
Voltage (V)
|
110V/220V single phase 50/60HZ
|
|
|
Temperature sensor
|
BT ET PT100 sensor
|
|
|
Timer
|
Equipped
|
|
|
Type
|
Commercial, Drum Coffee Roaster, semi hot air roaster
|
|
|
Temperature range
|
0-300 ℃
|
|
|
Data logger
|
Artisan/Cropster/Go roaster
|
|
|
Connection Type
|
Bluetooth/USB
|
|
|
Batch Roasting Capacity
|
500g-3.2kg
|
|
|
Warm up Function
|
Warm up to 200 ℃
|
|
|
Over temperature protect
|
Equipped
|
|
|
Maintain Door
|
Equipped
|
|
|
Drum Speed control
|
Equipped
|
|
|
Cooling fan and mixing arm
|
Equipped
|
|
|
Chaff collector
|
Equipped
|
|
|
Manual Damper
|
Equipped
|
|
|
Light
|
three color light with magnifying lence
|
|
|
Movable hopper
|
Equipped
|
|
|
Auto close feeding handle
|
Equipped
|
|
|
Auto Ignite
|
Equipped
|
|
|
Roasting Time
|
8-12 minutes/per drum
|
|
|
Hot air pressure gauge
|
Option
|
|
|
Smoke filter
|
Option
|
|
|
Sample spoon
|
Wooden made sample spoon
|
|
|
Hourly capacity
|
3kg to 15kg green coffee beans
|
|
|
Heating Source
|
LPG/NG/PROPANE/Electric infrared
|
|
|
Heating Power
|
8000W (Electric roaster model only)
|
|
|
Temperature Range
|
0-300C
|
|
|
Roaster Weight
|
N.W.:180kg, G.W.230kg
|
|
|
Machine Dimension:
|
112*73*125cm
|
|
|
Applications
|
Cafe, coffee shop, restaurant, coffee House, Roastery house
|
|
|
Package Size
|
116 *58 *116cm Main unit 105*33*50 cm Chaff Collector
|
|
Hot Air Pressure Gauge
Double Wall Drum
WS-3 coffee roaster use a double-layer drum coffee roaster，the drum is made of two layers carbon steel , drum total thickness is
10 mm. Carbon steel conduct heat better than stainless steel. When it starts heating up, the hot air quickly full fill in the gap
between two layers, the inner drum is surrounded by hot air, and the hot air can evenly through inner drum to beans , let your
roasting flavor better, don't burnt the beans.
10 mm. Carbon steel conduct heat better than stainless steel. When it starts heating up, the hot air quickly full fill in the gap
between two layers, the inner drum is surrounded by hot air, and the hot air can evenly through inner drum to beans , let your
roasting flavor better, don't burnt the beans.
Powerful Uniform Burner
Our team work hard for developing high performance heating burner.It is easy to ignite the fire on burner and keep it in strong to
heat up the drum, plus the durable insulation layer around the drum, you can maximum use the heats only to beans which saves the
fuel.It can increase 16 degree per min, 8 min get first crack, and the beans won't be burnt, and develop the sweetness of beans.
heat up the drum, plus the durable insulation layer around the drum, you can maximum use the heats only to beans which saves the
fuel.It can increase 16 degree per min, 8 min get first crack, and the beans won't be burnt, and develop the sweetness of beans.
Gas Gauge Lock
WS-3 coffee roaster Gas gauge is more precise and the gas pressure knob can be locked.
After you adjusted gas pressure value, you can push the gas pressure knob into machine to lock the operation and avoid someone
else touching or mis operate it.And our Gas pressure gauge is also durable and better quality than other brand.
After you adjusted gas pressure value, you can push the gas pressure knob into machine to lock the operation and avoid someone
else touching or mis operate it.And our Gas pressure gauge is also durable and better quality than other brand.
Large Maintains access
WS-3 is designed with large maintenance access which is easy to clean and replace parts.
If you need to clean or replace the gas pressure meter or the gas burner, you just need to screw off the little bolts on the
maintenance access door to finish it. This is the great improvement from our previous model.
If you need to clean or replace the gas pressure meter or the gas burner, you just need to screw off the little bolts on the
maintenance access door to finish it. This is the great improvement from our previous model.
Upgrade lighter
WS-3 roaster have upgrade light help you view the beans during roasting. It have three color light, in the middle is a magnifying glass. You can choose different light color in different light environment. And you can view the beans size change and color change more clearly.
Additional function
1.One key for warm up.
Before roasting, roaster need warm up, you can use Warm up function, the roaster will be warm up your roaster to 200 degree, and will stop heating automatically, when temperature is low, it will heat automatically, keep your roaster is warm, ready to roast.
2.Emergency stop
In case there is emergency situation, you can push this button, the gas and electric will both shut off, you can leave your roaster in safe situation.
Fast cooling
WS-3 coffee roaster adapt with large power cooling fan and cooling mixing arms, can cool the beans in 2 minutes, let your coffee flavor be kept.During cooling, you can roast next batch coffee at the same time.
Chaff filter and exhaust system
WS-3 roaster have a system to separate the chaff , as soon as the chaff drop from the beans, it will be soon flow out by the fan, won't make your beans and smoke smell. We customize the fan and develop the fan and exhaust structure, the fan won't be blcok and don't need to clean the fan, maintain is much easier.
Self developed Go Roaster app
Now you can watch and record your roasting profile details on your mobile phone. Just download“go roasters” from your mobile
phone APP store, then connect to WS-3 by Bluetooth to enjoy and share your own roast with friends immediately.
Mobile Phone Bluetooth connection for data logger is our latest technology which is very popular in our coffee roaster users.
phone APP store, then connect to WS-3 by Bluetooth to enjoy and share your own roast with friends immediately.
Mobile Phone Bluetooth connection for data logger is our latest technology which is very popular in our coffee roaster users.
Artisan and Cropster Data Logger
Even we provide Mobile Phone Bluetooth APP for data logger, our coffee roaster still can achieve computer USB works with Artisan
software and Cropster for data logger. You can choose any way for using data logger.
software and Cropster for data logger. You can choose any way for using data logger.
More Photos
Choices
Packing & Delivery
packed in plywood cartons
