Quick Details
-
Product name:
-

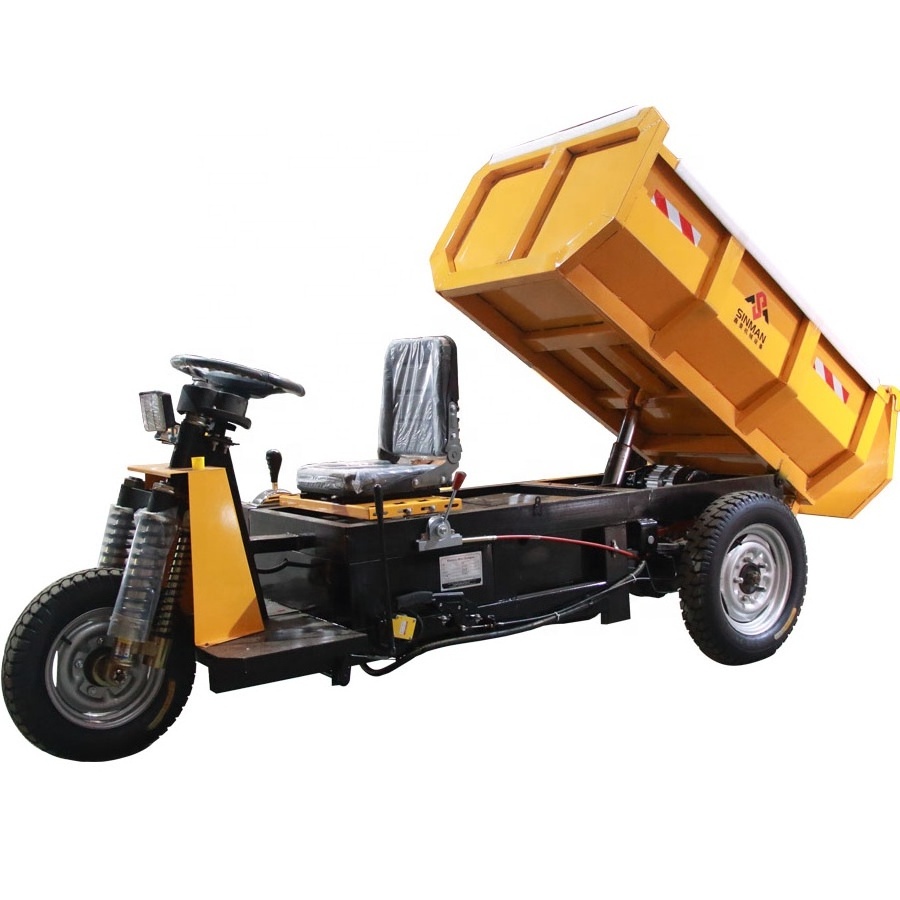

Mining tricycle
-
Model:
-
ZL150
-
Load Capacity:
-
1500kg
-
Application:
-
Underground Mining, tunnel, engineering, construction
-
Power:
-
3000W
-
Wheelbase:
-
1.1M/1.0M
-
OVERALL SIZE:
-
3000*1100*1200mm
-
tire:
-
450-12/500-14
-
Color:
-
can be customized
-
Advantage:
-
Saving Energy Consumption
Quick Details
-
Weight (KG):
-
650
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sinman
-
Product name:
-
Mining tricycle
-
Model:
-
ZL150
-
Load Capacity:
-
1500kg
-
Application:
-
Underground Mining, tunnel, engineering, construction
-
Power:
-
3000W
-
Wheelbase:
-
1.1M/1.0M
-
OVERALL SIZE:
-
3000*1100*1200mm
-
tire:
-
450-12/500-14
-
Color:
-
can be customized
-
Advantage:
-
Saving Energy Consumption
Product Description
With the development of the times, electricity has been applied to all aspects of human life. Due to environmental protection, human transportation and means of transportation are gradually becoming electrified. Electric mining transport vehicles, as an environmentally friendly vehicle, are used in agriculture, engineering, construction, and mining. Our company's electric tricycle is a heavy-duty
1.5t mini dumper
with strong load-bearing capacity, which can transport ores, stones, grain crops, construction waste, and other materials.
Specification
|
|
Technical parameters
|
Details
|
|
1
|
Load
|
1500kg
|
|
2
|
Weight
|
620Kg
|
|
3
|
Voltage
|
72V(water/dry battery)
|
|
4
|
Lifting Motor Power
|
1200w power unit
|
|
5
|
Driving Motor Power
|
3000w(brushless motor)
|
|
6
|
Overall Sizes
|
3000×1100×1200mm
|
|
7
|
Cargo Box Sizes
|
1600×1100×500mm
|
|
8
|
Work platform Height
|
700mm
|
|
9
|
Tire(front/rear)
|
450-12/500-14
|
|
10
|
Brake type
|
Oil brake
|
|
11
|
Light
|
LED big light
|
|
12
|
Seat
|
Luxury seat
|
|
13
|
Shocker
|
Double shocker
|
|
14
|
Axle
|
High and Low Speed, direct coupling
|
|
15
|
Lifting system
|
Hydraulic lifting
|
Product Details
The hydraulic lifting system of the
1.5t mini dumper
uses a power unit group and three section hydraulic cylinder to achieve 45 degree self unloading.
