Quick Details
-
Size:
-
12500*2500*1550
-
Place of Origin:
-
Shandong, China
-
Product name:
-

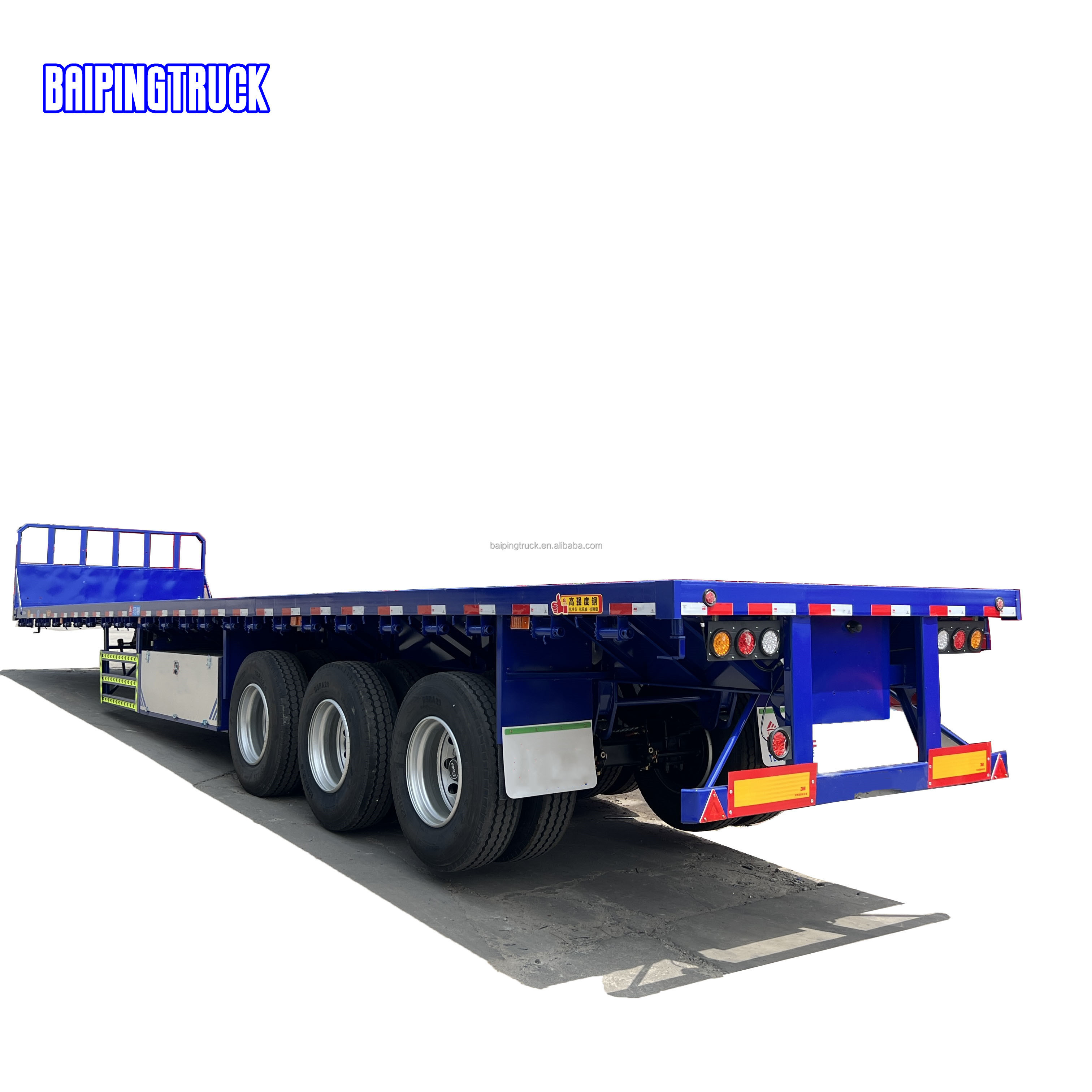

3 Axle Flatbed Semi Trailer
-
Main Beam:
-
Height:500mm 14/8/16mm
-
Floor:
-
2.5mm/3mm/4mm/5mm Steel Plate
-
Axle:
-
2/3/4 Axle
-
Suspension:
-
Heavy Duty Mechanical Suspension
-
Tire:
-
11.00r20 12r22.5 315 385
-
Landing Gear:
-
28t Heavy Duty Landing Gear
-
King pin:
-
2.0 Inch (50mm)/3.5 Inch (90mm)
-
Brake System:
-
WABCO
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
80 ton
-
Brand Name:
-
BAIPING TRUCK
-
Size:
-
12500*2500*1550
-
Place of Origin:
-
Shandong, China
-
Product name:
-
3 Axle Flatbed Semi Trailer
-
Main Beam:
-
Height:500mm 14/8/16mm
-
Floor:
-
2.5mm/3mm/4mm/5mm Steel Plate
-
Axle:
-
2/3/4 Axle
-
Suspension:
-
Heavy Duty Mechanical Suspension
-
Tire:
-
11.00r20 12r22.5 315 385
-
Landing Gear:
-
28t Heavy Duty Landing Gear
-
King pin:
-
2.0 Inch (50mm)/3.5 Inch (90mm)
-
Brake System:
-
WABCO
BAIPING 40 ft flatbed transport semi trailer trailer
Specifications:
1) Dimensions and weight:
a) Nominal dimensions (L x W x H): 12500 *2500* 1460mm
b) King pin height: 1,300mm
c) King pin setting: 1200mm from rear face of front bolster
d) Max. payload: 60,000kg
e) Tare weight: 7,000kg±2%
2) Running system:
a) Suspension system: leaf spring or airbag suspension.
b) Axle: various axles like BPW, York, Fuwa, with various bearings
c) Tire: various brands of bias tyres or radial tires
d) King pin: forged steel, 2" or 3.5", welded or bolt-in
e) Landing gear: 28T,
3) Chassis:
a) Provides twist locks and corner locks
b) Main beam: high-tensile steel
c) Surface preparation: shot blast all steel surfaces to achieve SA2.5 or SP-10
d) Painting: zinc-rich primer and modified urethane topcoat as customers' choices
4) Brake system:
a) Double line air brake system with single air tank, standard connectors on front bolster
b) Optional anti-lock brake system
5) Electrical system: standard electrical equipment.
1) Dimensions and weight:
a) Nominal dimensions (L x W x H): 12500 *2500* 1460mm
b) King pin height: 1,300mm
c) King pin setting: 1200mm from rear face of front bolster
d) Max. payload: 60,000kg
e) Tare weight: 7,000kg±2%
2) Running system:
a) Suspension system: leaf spring or airbag suspension.
b) Axle: various axles like BPW, York, Fuwa, with various bearings
c) Tire: various brands of bias tyres or radial tires
d) King pin: forged steel, 2" or 3.5", welded or bolt-in
e) Landing gear: 28T,
3) Chassis:
a) Provides twist locks and corner locks
b) Main beam: high-tensile steel
c) Surface preparation: shot blast all steel surfaces to achieve SA2.5 or SP-10
d) Painting: zinc-rich primer and modified urethane topcoat as customers' choices
4) Brake system:
a) Double line air brake system with single air tank, standard connectors on front bolster
b) Optional anti-lock brake system
5) Electrical system: standard electrical equipment.
Product Display:
The size of the loading part of the flatbed trailer is determined according to the size of the standard container, and a twist lock device for fixing the container is provided at the position corresponding to the four corners of the bottom of the
container.Type: 3 axle flatbed trailer, 4 axle flatbed trailer, air suspension flatbed trailer, single tire flatbed trailer.
container.Type: 3 axle flatbed trailer, 4 axle flatbed trailer, air suspension flatbed trailer, single tire flatbed trailer.
Container flatbed trailer chassis:
|
Dimension
|
L*W*H: 12500X2480X1460(MM)
|
|
|
|
|||
|
Axle space
|
7500+1310+1310
|
|
|
|
|||
|
Tare weight
|
7000kg
|
|
|
|
|||
|
Payload
|
60000kg
|
|
|
|
|||
|
G.V.W.R.
|
67000kg
|
|
|
|
|||
|
Main beam
|
14/8/16
|
|
|
|
|||
|
Twist locks
|
4 units/8 units/12 units
|
|
|
|
|||
|
Suspension
|
Spring suspension
|
|
|
|
|||
|
Landing gear
|
Two speed manual operation type with sand shoe
|
|
|
|
|||
|
Kingpin
|
2"or3.5"Bolted type
|
|
|
|
|||
|
Axle
|
FUWA axle, 13 ton capacity/set,3pcs
|
|
|
|
|||
|
Tire
|
11R22.5-18PR/315/80R22.5,12UNITS
|
|
|
|
|||
|
Rim
|
8.25*22.5 ,12 UNITS
|
|
|
|
|||
|
Brake system
|
Dual line pneumatic brake system.
|
|
|
|
|||
|
Brake chamber
|
Type 30/30 spring brake chamber
|
|
|
|
|||
|
Tool box
|
1
|
|
|
|
|||
|
Spare tire carrier
|
2
|
|
|
|
|||
|
Painting
|
As customer's request
|
|
|
|
|||
More photos for your reference:
The flatbed trailer as known as a platform trailer. A flatbed trailer is a semi-trailer with a container structure. Mainly used
in logistics systems supporting ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport. The flatbed trailer is generally used to transport containers, bulk cargo, bulk cement, bulk rice, etc. It is mainly used for long-distance transportation. Generally, a flatbed trailer can transport 30-60 tons. If it is a large amount of transportation or different needs, we can customize it, or flatbed trailer some deformed vehicles.
in logistics systems supporting ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport. The flatbed trailer is generally used to transport containers, bulk cargo, bulk cement, bulk rice, etc. It is mainly used for long-distance transportation. Generally, a flatbed trailer can transport 30-60 tons. If it is a large amount of transportation or different needs, we can customize it, or flatbed trailer some deformed vehicles.
OUR PRODUCTION
Skeletal Container Chassis Packing and Loading:
We have a special person to participate in the whole process of monitoring your packaging and transportation. Our experienced team will choose an economical and safe transportation method for you to ensure the safe delivery of products to your hands.
