Quick Details
-
Conveyor speed:
-
0.22m/s
-
Maximum load capacity:
-
170kg
-
Penetration:
-
43 mm steel
-
Dimensions(without shelf):
-
L 3200*W 1820*H 1310 mm
-
Working power:
-
220VAC(±10%) 50/60HZ
-
Power consumption:
-
0.6KW
-
Noise:
-
<55db
-
Operation temperature/humidity:
-
0℃~ 45℃/20%~95%
-
Beam direction:
-
Vertically Upward
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuan
-
Tunnel size:
-
1000(w)*1000(h)mm
-
Conveyor speed:
-
0.22m/s
-
Maximum load capacity:
-
170kg
-
Penetration:
-
43 mm steel
-
Dimensions(without shelf):
-
L 3200*W 1820*H 1310 mm
-
Working power:
-
220VAC(±10%) 50/60HZ
-
Power consumption:
-
0.6KW
-
Noise:
-
<55db
-
Operation temperature/humidity:
-
0℃~ 45℃/20%~95%
-
Beam direction:
-
Vertically Upward
Product Description
X-ray security inspection equipment uses multi-energy detectors and digital image processing
systems comparable to those of the world’s top products to detect items with stable and reliable performance.
systems comparable to those of the world’s top products to detect items with stable and reliable performance.
All-round leader:The product performance parameters reach the international first-class level,high definition image,strong penetrating power,high resolution and powerful material recognition function.
Stable and reliable:The product production process is strictly controlled in accordance with the IOS9001 quality management system,through strict high-low temperature test,damp heat test and vibration test,to ensure that the product continuously runs for more than 10000 hours without failure
Stable and reliable:The product production process is strictly controlled in accordance with the IOS9001 quality management system,through strict high-low temperature test,damp heat test and vibration test,to ensure that the product continuously runs for more than 10000 hours without failure
|
Tunnel size
|
1000(w)*1000(h)mm
|
|
|
|
Conveyor speed
|
0.22m/s
|
|
|
|
Maximum load capacity
|
170kg
|
|
|
|
Penetration
|
43mm steel
|
|
|
|
Wire resoluton
|
φ0.101mm metallic wire
|
|
|
|
Penetration resolution
|
φ0.202mm
|
|
|
|
Spatial resolution
|
Level:φ1.0mm,Vertical:φ1.0mm
|
|
|
|
X-ray dosage each inspection
|
＜0.1μGy/h
|
|
|
|
Boundary Leakage
|
＜0.3μGy / h（Testing at any place 5cm away from the outer surface of the device is in line with and better than domestic）
|
|
|
|
High efficiency radiation protection
|
Double-layer staggered,wear-resistant,strong lead curtain,ultra-thick 2-5cm lead plate to ensure safe and reliable equipment.
|
|
|
|
Ray beam divergence angle
|
80°
|
|
|
|
Digital interface
|
Tube voltage 100-160KV(adjustable),current 0.4-1.2mA(adjustable)
|
|
|
|
Cooling/duty cycle
|
Sealed oil cooled/100%
|
|
|
|
Image processing function
|
Color/BW,Logal Enhancement,high/low penetrating,super enhancement,organics exclusion,inorganic exclusion,negative,brightening
,darkening,gray-level scan,magnification,pseudo-color processing,organics enhancement, edge enhancement. |
|
|
|
Dimensions(without shelf)
|
3200mm(length)*1820mm(width)*1310mm(height)
|
|
|
|
Working power
|
220VAC(±10%) 50/60HZ
|
|
|
|
Power consumption
|
0.6KW
|
|
|
|
Noise
|
＜55db
|
|
|
|
Beam direction
|
Vertically Upward
|
|
|
|
Operation temperature/humidity
|
0℃~ 45℃/20％~95％(No condensation)
|
|
|
|
Storage temperature/humidity
|
-20℃~60℃/20％~95％（No condensation）
|
|
|

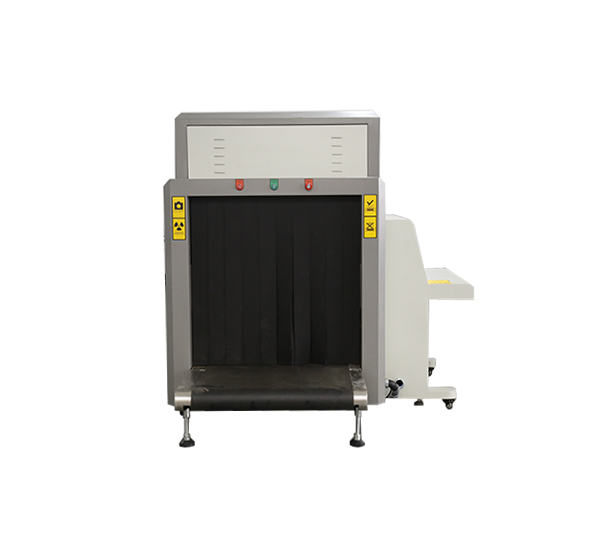

X ray baggage scanner in factory
X ray baggage scanner size
Detection image
X ray baggage scanner project pictures
Customs port
Hotel
Security company
