Cash and Coin Withdraw TTW ATM for Lottery Ticket Outlets Shopping Mall Bank
I. Brief Introduction:
TTW Cash and Coin Withdraw ATM Model SKT-D1059T is specially designed for scenarios where both banknote and metal coin withdrawals are necessary. The Standard model consists of a 4-compartment cash module and a single coin dispenser, thus supports maximum four denominations cash out operations and one face-valued coin out. The Lobby Model SKT-D1059 is also available for in-door deployment.
II. Application Scenarios:
Bank offices, cash points, transportation hubs, supermarkets, gas stations, etc.

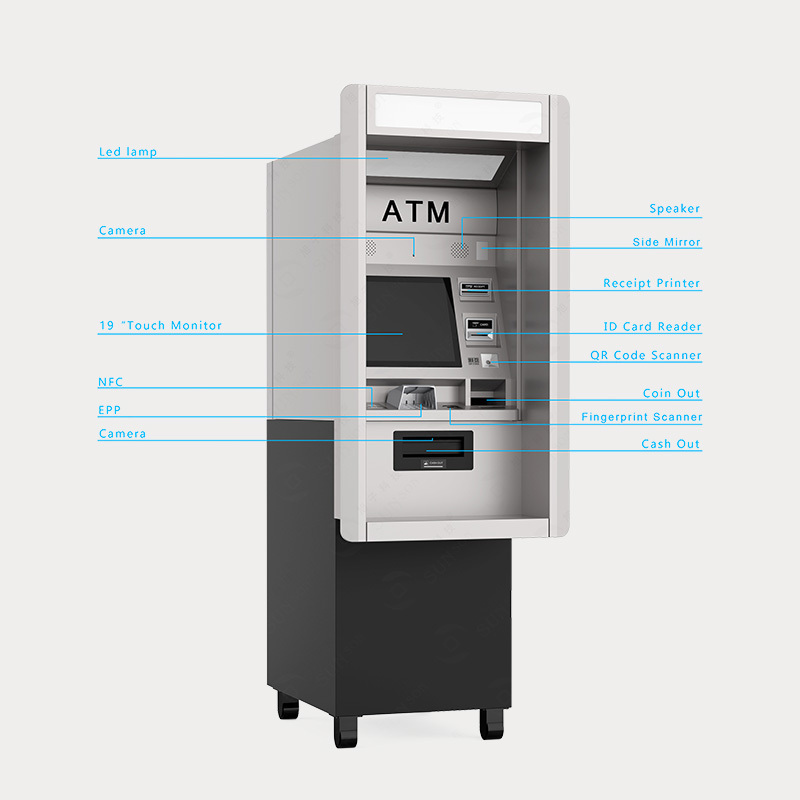

III. P roduct Images:
IV. T echnical Specifications:
| S/N | ITEM | SPECIFICATION |
| I. Mainframe | ||
| 1 | Mainboard | Industrial control motherboard, H81 chip, LGA1150 CPU architecture; 2 DDRIII memory slots; 2 VGA interfaces; 10 USB, 12 RS232 interfaces, two 1000Mb adaptive dual NICs, support TCP/IP protocol, ATX300W power supply; power-on start, timer switch function; |
| 2 | CPU | 4th Generation Core I5 with clock frequency 3.6GHZ/LGA1150 |
| 3 | RAM | DDR3 1600MHz 16G |
| 4 | Hard Disk | 2.5-inch 500G SSD |
| 5 | CPU Fan | YES |
| 6 | Power Supply | 110V-220V/300W |
| 7 | DVD Drive | 24x speed, SATA interface |
| II. Multi-media | ||
| 8 | Speakers | 2*5W8Ω |
| 9 | Amplifier | CCC certified |
| III. ATM Power Supply | ||
| 10 | Power Distributor | Socket & plug type to be defined by BUYER. |
| 11 | 12V Power Supply Unit | Rated output power 150W, input voltage 90~132V/180~264V, output voltage 12V, output rated current 8.8A. |
| 12 | 24V Power Supply Unit | Rated output power 200W, through the switch to select input voltage 90~132V/180~264V, output voltage 24V, output rated current 8.8A. |
| 13 | UPS | Backup UPS power supply, 1200VA, 700W, RS232 interface, software monitoring, input and output AC110V/50Hz±1Hz, power-on start, timing switch function, standby time 10-30 minutes |
| IV. Main Modules | ||
| 14 | Main Screen | 19-inch capacitive integrated screen, support multi-touch, display ratio 4:3, VGA, USB interface, the best display resolution 800 * 600, touch screen resolution 4096 * 4096, DC12V |
| 15 | Rear Service Screen | 10.4 inch capacitive integrated screen, support multi-touch, display ratio 4:3, VGA, USB interface, the best display resolution 800 * 600, touch screen resolution 4096 * 4096, DC12V |
| 16 | Front HD Camera | Pinhole, 500W pixels, support WINDOWS, USB interface, COMS |
| 17 | Cash Presenter Camera | Pinhole, 200W pixels, support WINDOWS, USB interface, COMS |
| 18 | Receipt Printer | DC24V, USB interface, thermal printing, paper width 80mm, CAP-347 movement, full cut, round hole power interface, also with anti-jamming nozzle, paper will run out, black mark detection function |
| 19 | Electric DIP Card Reader | Standard RS232 interface, DC12V, two-in-one, support contact IC card, magnetic card reading and writing, magnetic card in line with ISO7810 ID-1, 7811 standard, IC card in line with ISO7816-2 standard, through EMV, PCI certification |
| 20 | Encrypted PIN Pad (EPP)with Shield | Standard RS232 interface, through PCI V6.0 international certification, with waterproof, dustproof, vandal and leak-proof, single DES, double DES, 3x DES algorithm, unsealing self-destruct program, with a peek-proof cover |
| 21 | 2 in 1 Optical Code Reader | USB interface, scanning mode: two-dimensional image type (838 x 640 pixels), support commonly used PDF417 two-dimensional barcode, Datamatrix two-dimensional barcode, QR code, GM code, support to read paper, LCD, mobile phone screen and other media on the bar code information; |
| 22 | Fingerprint Reader | USB interface, semiconductor working mode, pixel definition: 700 (DPI), supply voltage: 5.0V +/-.25V, fingerprint ingestion: <1000mA, image acquisition time 0.01s, fingerprint processing time 0.01s, |
| 23 | NFC Card Reader | USB interface, DC5V (USB powered), operating frequency 13.56Mz, ISO-7816 compliant A, B and C classes (5V); ISO-14443 compliant A & B class, support Mifare S50 S70 card support NFC function, support non-connect IC card transaction function; RF read and write distance: up to 50mm or more; |
| 24 | Anti-skimmer Controller | RS232 interface, DC12V, probe reader nozzle |
| 25 | Bulk Banknote Dispenser | RS232 interface, AC220V/3A, stack of horizontal banknotes, 4 withdrawal banknote boxes + 1 scrap box, banknote box capacity of 3000 pieces, recycled banknote boxes 250 pieces, support 5, 10, 20, 50 US dollars. Please contact us to confirm support of other currencies. |
| 26 | Coin Dispenser | DC24V, RS232 interface, capacity of 1100 coins. |
| 27 | Presenter Shutter | YES. |
| 28 | SIU Board | RS232, DC12V, control multi-channel access control switch, support vibration alarm, thermal induction alarm |
| 29 | Door Access Control Switch | YES |
| 30 | Body Sensor for Screen Saver | RS232 interface, DC12V, infrared sensing, distance 1 meter, when the human body is close to the ATM machine, the machine is in a working state, and transmitted to the background through the software, when the human body leaves the ATM machine, the machine is in advertising mode. |
| 31 | Awareness Mirrors | YES |
| 32 | Alarm Unit | YES |
| 33 | Digital Combination Lock | YES |
| 34 | LED Indicators | YES |
| 35 | Genuine Operating System | Official Windows 10, 64-bit |
| 36 | Cooler Fan | 120*120*20mm |
| V. Accessories & Others | ||
| 37 | Metal Wares | YES |
| 38 | Plastic/Rubber Wares | YES |
| 39 | Cables & Wires | YES |
| 40 | Cabinet | Safe made of 8mm steel plate |
| 41 | Package | YES, good for sea transportation. |
Note: The above specifications are for reference, and subject to changes and upgrade without prior notice .
