Quick Details
-
Size:
-
6,8,9,12 inch
-
Productivity:
-
other
-
Weight (KG):
-
1 kg
-
Certification:
-
ISO9001, CE
-
Color:
-
White, Black
-
Weight:
-
0.5-1.2 Kg
-
Bubble Size:
-
1-2mm
-
Bubble Type:
-
Coarse bubble, fine bubble
-
Type:
-
Disc
-
Connector:
-
3/4'' NPT male thread
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Water Master
-
Material:
-
carton, EPDM ,PTFE,Silicon, ABS/PP
-
Size:
-
6,8,9,12 inch
-
Productivity:
-
other
-
Weight (KG):
-
1 kg
-
Certification:
-
ISO9001, CE
-
Color:
-
White, Black
-
Weight:
-
0.5-1.2 Kg
-
Bubble Size:
-
1-2mm
-
Bubble Type:
-
Coarse bubble, fine bubble
-
Type:
-
Disc
-
Connector:
-
3/4'' NPT male thread

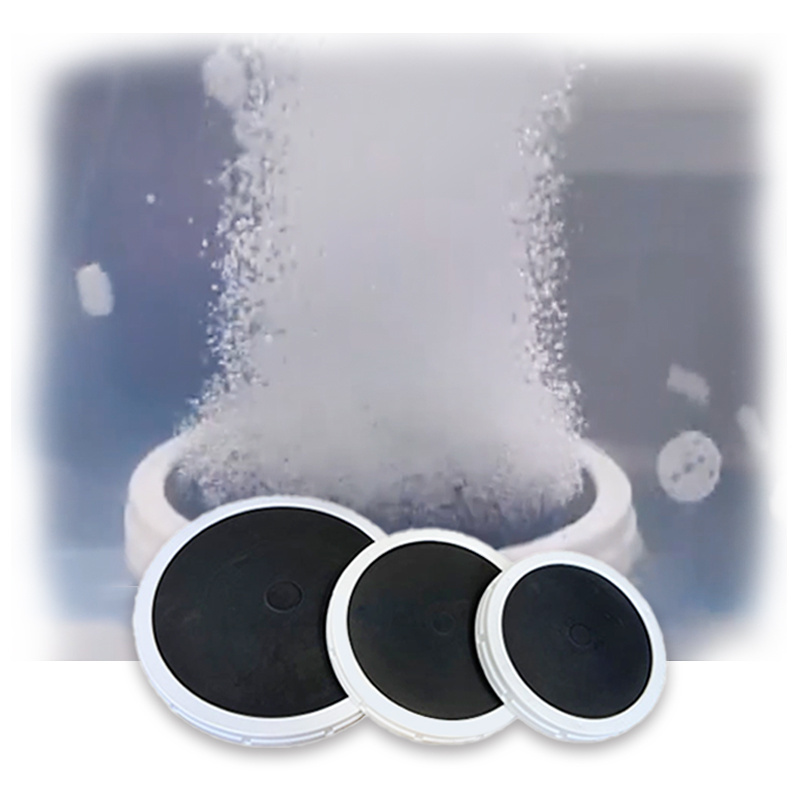

Fine bubble Disc Diffuser features a unique split pattern and slit shapes，which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check value enables the aeration zones to be easily shut down for air-on/air-off applications. The membrane disc diffuser can combines effective design, low installation costs, reliability and high performance in intermittent and continuous aeration processes.
|
Model
|
HLBQ-170
|
HLBQ-215
|
HLBQ-270
|
HLBQ-330
|
HLBQ-650
|
||||
|
Bubble Type
|
Coarse Bubble
|
Fine Bubble
|
Fine Bubble
|
Fine Bubble
|
Fine Bubble
|
||||
|
Size
|
6 inch
|
8 inch
|
9 inch
|
12 inch
|
675*215mm
|
||||
|
MOC
|
EPDM/Silicone/PTFE – ABS/Strengthened PP-GF
|
|
|
|
|
||||
|
Connector
|
3/4''NPT male thread
|
|
|
|
|
||||
|
Membrane Thickness
|
2mm
|
2mm
|
2mm
|
2mm
|
2mm
|
||||
|
Bubble Size
|
4-5mm
|
1-2mm
|
1-2mm
|
1-2mm
|
1-2mm
|
||||
|
Design Flow
|
1-5m3/h
|
1.5-2.5m3/h
|
3-4m3/h
|
5-6m3/h
|
6-14m3/h
|
||||
|
Flow Range
|
6-9m3/h
|
1-6m3/h
|
1-8m3/h
|
1-12m3/h
|
1-16m3/h
|
||||
Epdm can resist heat, light, oxygen, especially ozone. Epdm is essentially non-polarity, polarity solution and chemicalresistant, bibulous is low, it has good insulating properties.
Insoluble in water and any solvent, non-toxic and tasteless, chemical properties stable, except strong alkali, hydrofluoric acid not react with any material.
High and low temperature resistant,
resistence to most chemical and solvents,
the lowest friction coefficient in solid materials.T
he smallest surface tension in a solid material.
