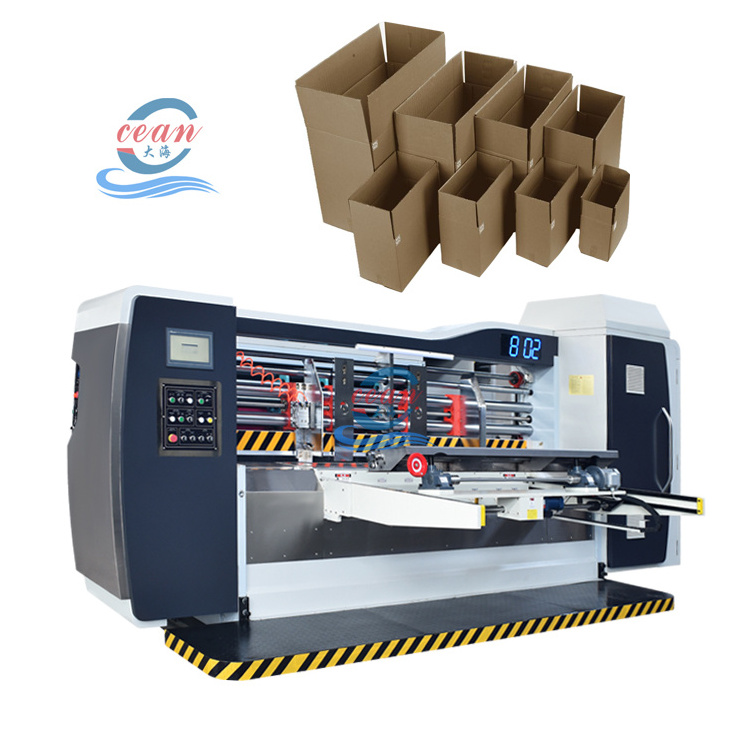

Corrugated Cardboard Carton Box Automatic High Speed Printing Die Cutting Slotting Machine

Corrugated Cardboard Carton Box Automatic High Speed Printing Die Cutting Slotting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $10100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 8000 KG

Product name:: corrugated box slotter die cutting machine

Certificate:: ISO9001 CE

Speed:: about 250pics/min

Place of origin:: Dongguang Cangzhou Hebei China

Printing material:: Corrugated papersheet

Feeding way:: lead edge automatic feeding

Automatic grade:: automatic feeding and printing

Color:: 2-10 colors or requested

Voltage:: 220V/380V/440V

Quick Details

Brand Name:: OCEAN

Marketing Type:: New Product

Type:: corrugated box printing machine slotter

Weight (KG):: 8000 KG

Product name:: corrugated box slotter die cutting machine

Certificate:: ISO9001 CE

Speed:: about 250pics/min

Place of origin:: Dongguang Cangzhou Hebei China

Printing material:: Corrugated papersheet

Feeding way:: lead edge automatic feeding

Automatic grade:: automatic feeding and printing

Color:: 2-10 colors or requested

Voltage:: 220V/380V/440V

Corrugated Cardboard Carton Box Automatic High Speed Printing Die Cutting Slotting Machine

Function&Characteristic

1.The whole machine is adopted international famous brand appliances and computer software,the quality is stable and reliable.Man-machine interface, Multi-point touch screen control ,computer order management, easy to operate.Replace the order faster(can be stored 999 orders in advance)
2.Whole wallboard and important components are adopted aging treatment, eliminate the metal internal stress;Adopt high precision machining centers, CNC grinding machine for grinding processing.
3.The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing
correction and surface hard chromium plating.
4.The engine drive gear is adopted 20CrMnTi alloy steel, carburizing,quenching treatment, hardness HRC58-62 and gear grinding processing precision level 6, and ensured the long-term use of tinted with high precision.
5.Machine transmission parts (shaft, gear joint) are adopted free key connection (LOCK-ALX), the connection eliminate clearance.It is suitable for long-term high speed with high torque.
6.The machine drive bearing ,important driving parts adopt Heavy-duty self-aligning bearing ,simple maintenance,long service life.(three big domestic famous brand:Hava los)
7.The engine lubrication system is adopted automatic spray type lubrication, Equipped with automatic balancing device, keep the oil in every units at the same level.
8.The machine is adopted adjustment preset functions, feeding , printing, die-cutting, automatic zero resetting ,Separate and combine memory automatic reset.
9.Reset function of one key combine and separate , the machine every unit separate and every unit combine one key reset , when separate unit the light work ,High accuracy and improve work efficiency.
10.The main motor is adopted frequency conversion control.It makes start, running more steadily and saves more energy.
11.There is lack of ink alarm device and the real-time monitoring for the ink working condition system .
12.Optional: ceramic anilox roller, doctor blade and set ink system, stacking machine

PRODUCT SPECIFICATIONS

Width of machine inside	2500mm
Design speed	160 pcs/min
Economic speed	80-140 pcs/min
Max paper size	2300*1400mm
Min paper size	420*700mm
Max skip feeding paper size	2300*1600mm
Paperboard thickness	2-11mm
Sloing width*max slotting depth	7*350 mm
Min slot distance	170170170170mm 3108031080mm
Main motor power	7.5 kw
Wind motor power	7.5 kw
Working power	15 kw
Total power	20 kw
Slotting precision	±1mm
Weight	7 T
Boundary dimension	455030002000mm
Boundary dimension(with stacker)	1020045503000mm
