Quick Details
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
Tool
-
Weight (KG):
-
2.5 KG
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None

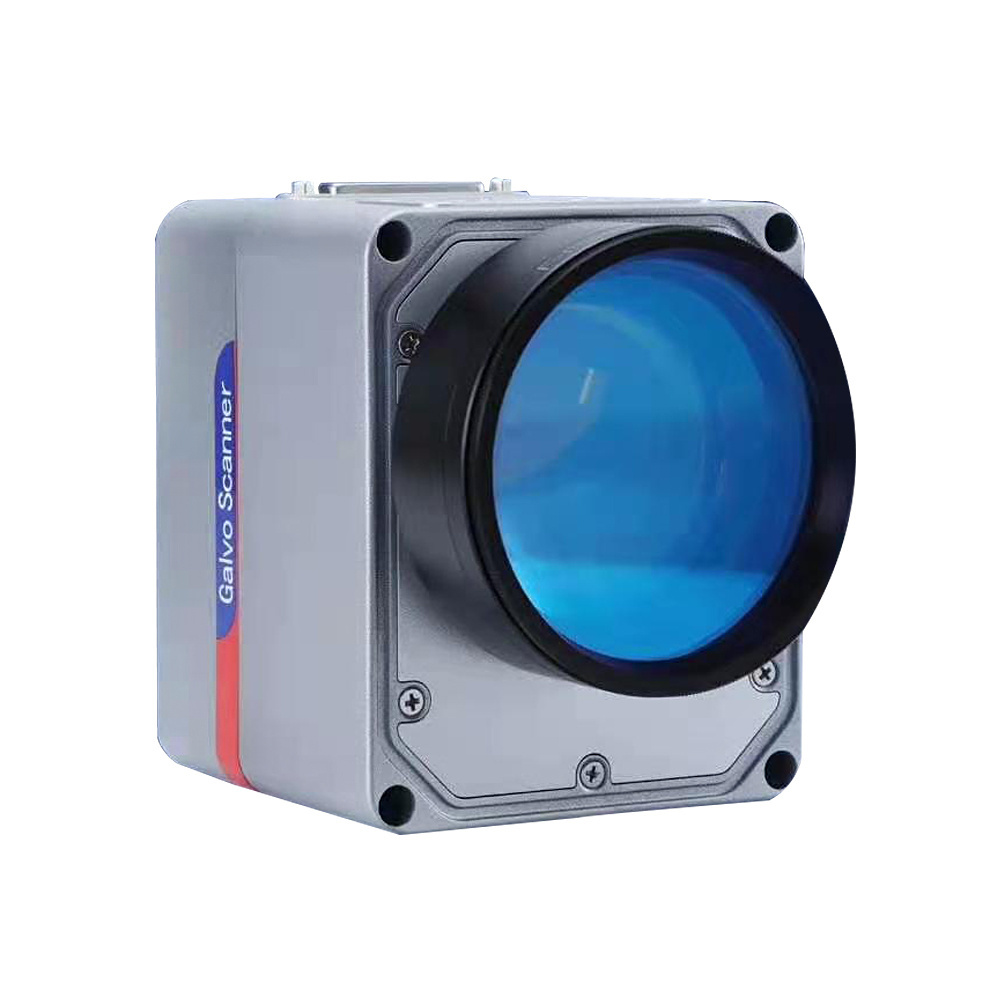

Fiber Laser Machine RC1001 Double Red Dots Light Align Scanning Galvo Head Set Kit 1064nm for LY Fiber Laser Marking Machine Use
1.For CO2 use.
2.Ultraviolet Mirror
3.Green Mirror
Speed
Marking speed 4000mm/s ( Factory data. )
Positioning speed 4000mm/s ( Factory datat )
Write speed 301cps
Step response time (full stroke 1%) 370us
Step response time (full stroke 10%) 630us
Tracking error ≤ 202us
Accuracy and error
Linearity 99.9%
Repeat positioning accuracy is less than 8 μ rad
Gain error < 5mrad
Zero offset (batch origin error) < 5mrad
Long time drift (continuous working for 8 hours) < 0.5mrad
Proportional drift < 40ppm / ℃
Zero drift < 15 μ rad / ℃
Lens damage threshold
K9 matrix 9.1j/cm ^ 2
Si matrix 10J / cm ^ 2
Reflection wavelength of lens 10600nm / 1064nm / 355nm
Power supply and signal
Input voltage ± 15Vdc
Average operating current 2A
Signal interface
Digital xy2-100
Analog ± 5V
Peak current 8A
Position signal input impedance 10K Ω ± 1%
Mechanical scanning angle ±11°
Working current, temperature, size
Working temperature: 0 ℃ -- 45 ℃
Storage temperature - 10 ℃ -- 60 ℃
Laser input aperture 10mm
Galvanometer size (L × w × h) 120 × 100 × 95mm
Galvanometer weight ≈ 0.9kg
Packing List:
RC1001 Galvo-head x 1
Switch Power Supply 55W x 1
DB25 cable x 1
