- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KINGISO
-
Model Number:
-
LK-60
-
Warranty:
-
12 months
-
Outside Dimension(mm)L*W*H:
-
12000*5000*3000
-
Painting Room Dimension(mm)L*W:
-
3900*4900
-
Drying Room Dimension(mm)L*W:
-
7950*4900
-
Incoming Door Dimension(mm)L*W:
-
1900*2000
-
Delivery Door Dimension(mm)L*W:
-
1900*2000
-
Inlet Fan:
-
2x3kw double-intake centrifugal fans, air capacity: 16000m3/h
-
Heating System:
-
18pieces x1kw carbon fiber far-infrared heater, anti-explsion
-
Total Power:
-
24.8kw
-
Certification:
-
ce
Quick Details
-
Power:
-
24.8KW
-
External Size:
-
12000*5000*3000
-
Internal Size:
-
according the wall panels
-
Voltage:
-
380V
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KINGISO
-
Model Number:
-
LK-60
-
Warranty:
-
12 months
-
Outside Dimension(mm)L*W*H:
-
12000*5000*3000
-
Painting Room Dimension(mm)L*W:
-
3900*4900
-
Drying Room Dimension(mm)L*W:
-
7950*4900
-
Incoming Door Dimension(mm)L*W:
-
1900*2000
-
Delivery Door Dimension(mm)L*W:
-
1900*2000
-
Inlet Fan:
-
2x3kw double-intake centrifugal fans, air capacity: 16000m3/h
-
Heating System:
-
18pieces x1kw carbon fiber far-infrared heater, anti-explsion
-
Total Power:
-
24.8kw
-
Certification:
-
ce

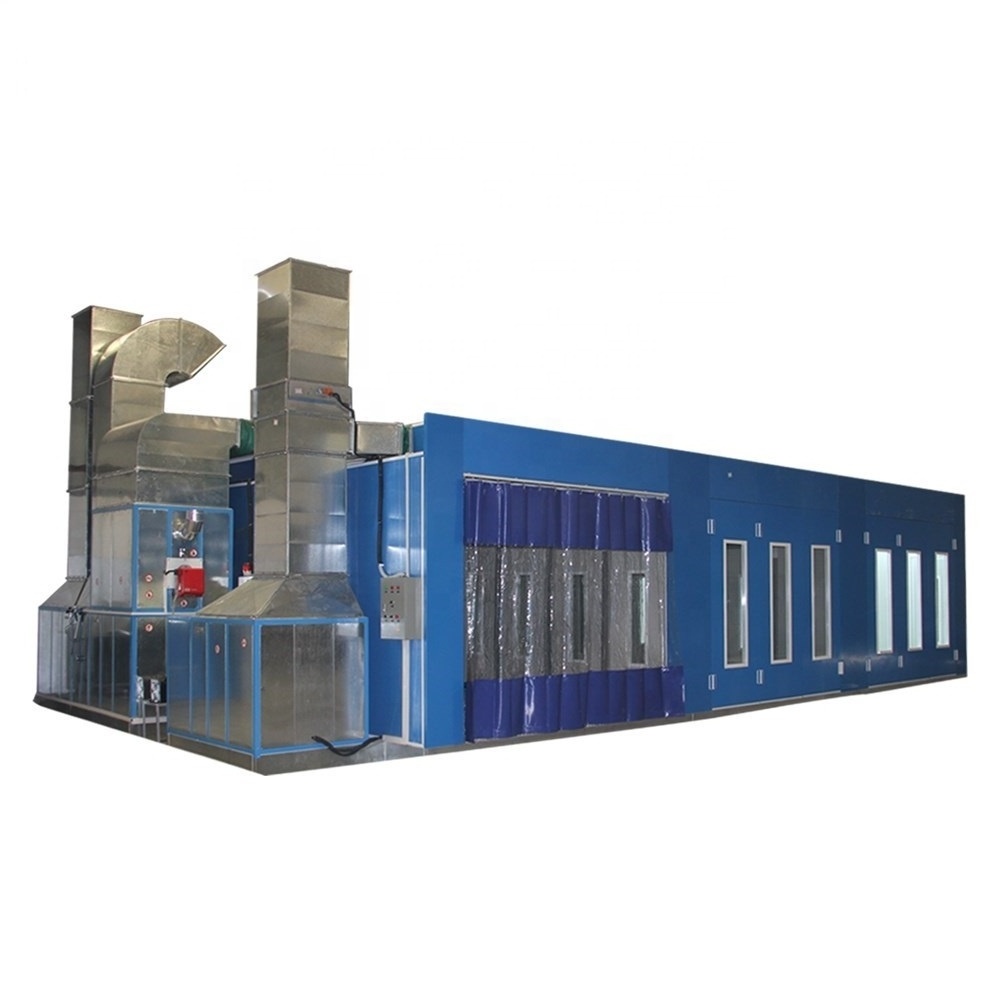

LK-60 Furniture Paint-baking Booth Paint Spray Booth
Product Details:
Techcical Parameter:
| Model# | LK-60 |
| Outside Dimension(mm)L×W×H | 12000×5000×3000 |
| Painting Room Dimension(mm)L×W | 3900×4900 |
| Drying Room Dimension(mm)L×W | 7950x4900 |
| Incoming Door Dimension(mm)L×W | 1900×2000 |
| Delivery Door Dimension(mm)L×W | 1900×2000 |
| Wall Panels | EPS with double-ply plater, tongue and groove construction, thickness:50mm |
| Lighting |
Painting room: 6units x 3pieces=18piecesx36w lamp; Baking room: 4 pieces x 36w lamp |
| Inlet Fan | 2x3kw double-intake centrifugal fans, air capacity: 16000m³/h |
| Heating System | 18pieces x1kw carbon fiber far-infrared heater, anti-explsion |
| Filter System |
Intake air: Pre-filter, high effeciency filter (ceiling filter); Exhaust air: Water curtain filtering |
| Control System |
Lighting switch, spraying, baking temperature, time setting, emergency stop, temperature controller, power supply |
| Total Power | 24.8kw |
Workshop:
1.Delivery and Package:
We will take care of your machinery packages well like picture show.
·Our workers will make sure your machine clean before package.
·We will add stretchy film for the whole machine and spare parts for delicate protection.
·We will make export standard strong Wooden box case package as your request.
2.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . more than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
3. Technical support:
·Technical support by Phone, Email ,Wechat, WhatsApp and Skype,24 hours online.
·We provide English version manual.
·Engineer available to service machinery overseas.
4. After sales services:
Our machine is installed and tested well before delivery. You can operation the machine immediately after received machine.
If you don't know how to use the machine,we will offer you free training until you can use machine freely.And If there is still have any question, please contact us by Email, Skype, Phone and Trademanager online service at any time.
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. KINGISO is our brand.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
