Quick Details
-
Return Force (kN):
-
160000 kN
-
Place of Origin:
-
Shandong, China, Shandong, China
-
Brand Name:
-
KEWOSEN
-
Year:
-
2023
-
Voltage:
-
Customization
-
Weight (T):
-
30 T
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
New Product
-
Product Name:
-
Metal Door Palet Embossing Press Machine
-
Power Source:
-
Hydraulic Power
-
Keyword:
-
metal door stamping press machine
-
Application:
-
Metal Material Deep Drawing
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Style:
-
Servo Hydraulic Press
-
Hydraulic press:
-
1600/2400/3000/3600/4500/5000T
-
Usage:
-
Pressing Metal Sheet
-
Type:
-
8 Beams and 8 Columns
Quick Details
-
Machine Type:
-
Steel Wood Door Embossing Machine
-
Slide Stroke (mm):
-
400
-
Ejector Force (kN):
-
300
-
Return Force (kN):
-
160000 kN
-
Place of Origin:
-
Shandong, China, Shandong, China
-
Brand Name:
-
KEWOSEN
-
Year:
-
2023
-
Voltage:
-
Customization
-
Weight (T):
-
30 T
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
New Product
-
Product Name:
-
Metal Door Palet Embossing Press Machine
-
Power Source:
-
Hydraulic Power
-
Keyword:
-
metal door stamping press machine
-
Application:
-
Metal Material Deep Drawing
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Style:
-
Servo Hydraulic Press
-
Hydraulic press:
-
1600/2400/3000/3600/4500/5000T
-
Usage:
-
Pressing Metal Sheet
-
Type:
-
8 Beams and 8 Columns
Product Description

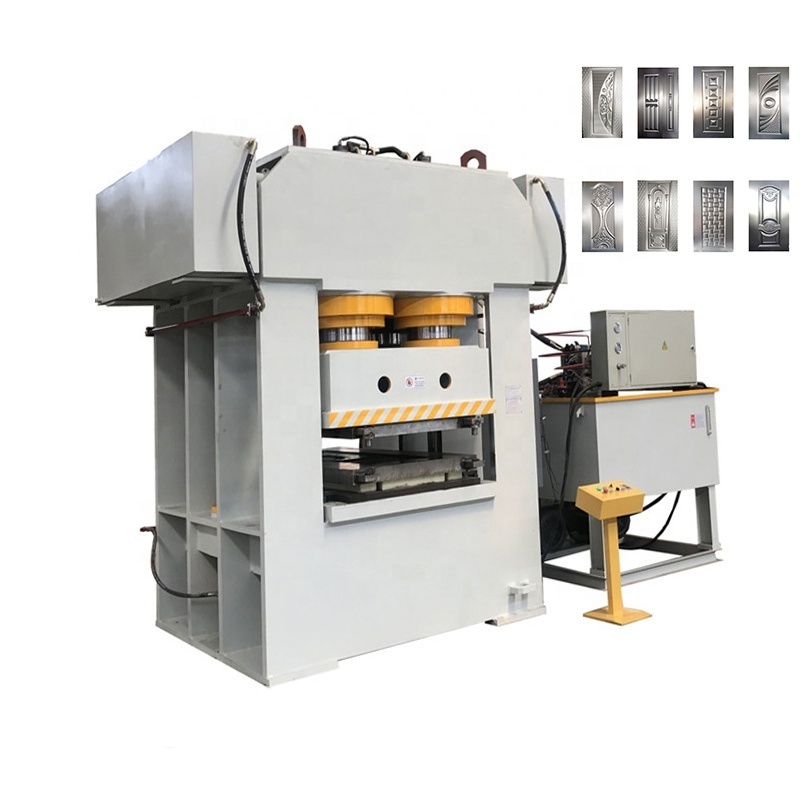

Steel and wooden door embossing machine, also known as anti-theft door embossing hydraulic press, anti-theft door embossing machine, stainless steel facade embossing machine, door panel embossing machine, large iron door embossing machine, etc. major equipment. The single-acting/double-acting steel and wooden door embossing machine produced by Jiangsu Kewosen Machinery Technology Co., Ltd. adopts the structure of six cylinders, eight columns and three beams, equipped with PLC and servo system, and has three operating modes of automatic/semi-automatic/manual. Touch screen setting adjustment. Among them, the YQ78 double-action steel and wooden door embossing machine, the worktable is equipped with a large-size hydraulic pad and a multi-point ejection device, which realizes double-action pressing and makes the embossing clearer.
Specification
|
Product Name
|
Four Column Hydraulic Press
|
|
Condition
|
New
|
|
Machine Type
|
Steel Metal Door Embossing Machine
|
|
Feature
|
Eight-beam and Eight-column
|
|
Brand Name
|
KEWOSEN
|
|
Key Selling Points
|
High-accuracy
|
|
Warranty
|
2 Years
|
|
Applicable Industries
|
Food & Beverage Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Restaurant, Printing Shops, Retail, Energy &
Mining |
|
Showroom Location
|
None
|
|
Marketing Type
|
New Product
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
2 Years
|
|
Core Components
|
Bearing, Motor, Pump, Engine
|
|
Place of Origin
|
Shandong, China
|
|
Project
|
Unit
|
1600T
|
2500 T
|
3600 T
|
4500T
|
5000 T
|
6000T
|
|
Normal Force
|
KN
|
16000
|
24000
|
36000
|
45000
|
50000
|
60000
|
|
Return force
|
KN
|
45*2
|
630x2
|
630x2
|
630x2
|
630x2
|
1000x2
|
|
Stroke
|
mm
|
400
|
400
|
400
|
400
|
400
|
400
|
|
Return stroke
|
mm
|
450
|
450
|
450
|
450
|
450
|
450
|
|
Opening height
|
mm
|
500
|
500
|
500
|
500
|
500
|
500
|
|
Descend speed
|
mm/s
|
120
|
120
|
150
|
150
|
150
|
150
|
|
Working speed
|
mm/s
|
5-10
|
5-10
|
5-10
|
5-10
|
5-10
|
5-10
|
|
Return Speed
|
mm/s
|
85
|
80
|
80
|
80
|
80
|
80
|
|
Table Size
|
mm
|
1500*2500
|
1500x2500
|
1500x2500
|
1580x2550
|
1900x3000
|
2200x3500
|
|
Motor Power
|
KW
|
15.2
|
22x2
|
32
|
30x2
|
22x3
|
30x3
|
Details Images
Packing & Delivery
Ordinary plastic film packaging, fumigated wooden box packaging.
