Quick Details
-
Brand Name:
-
MD
-
Model Number:
-
MP12100
-
Battery Size:
-
330*172*218
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
11kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Electric Energy:
-
1280 Wh
-

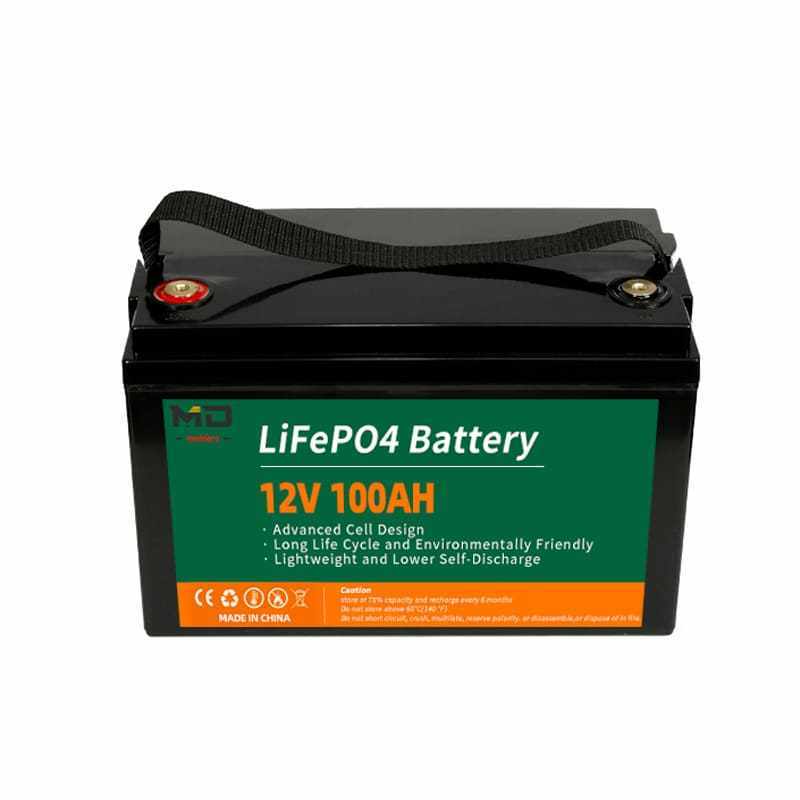

Product name:
-
lithium ion battery 12v 100ah
-
Nominal Voltage:
-
12.8V
-
Nominal Capacity:
-
100Ah
-
Keywords:
-
Lifepo4
-
Cycle Life:
-
>4000 cycles
-
Connection Type:
-
4S1P
-
Operation Temperature Range:
-
-20~60℃
-
Bluetooth:
-
Optional
-
LCD Display:
-
Customized
-
OEM/ODM:
-
Accepatable
Quick Details
-
Storage Type:
-
kept at 0°C-40°C in warehouse dry, clean
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts, RV
-
Brand Name:
-
MD
-
Model Number:
-
MP12100
-
Battery Size:
-
330*172*218
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
11kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Electric Energy:
-
1280 Wh
-
Product name:
-
lithium ion battery 12v 100ah
-
Nominal Voltage:
-
12.8V
-
Nominal Capacity:
-
100Ah
-
Keywords:
-
Lifepo4
-
Cycle Life:
-
>4000 cycles
-
Connection Type:
-
4S1P
-
Operation Temperature Range:
-
-20~60℃
-
Bluetooth:
-
Optional
-
LCD Display:
-
Customized
-
OEM/ODM:
-
Accepatable
Product Description
| Model | MDP-12100 | MDP-12120 | MDP-12150 | MDP12200 | MDP12300 |
| Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 100Ah | 120Ah | 150Ah | 200Ah | 300Ah |
| Energy | 1280Wh | 1536Wh | 1920Wh | 2560Wh | 3840Wh |
| Internal Resistance | ≤10mΩ | ||||
| Cycle Life | >4000 cycles | ||||
| Months Self Discharge | <3% | ||||
| Efficiency of Charge | 100%@0.5C | ||||
| Efficiency of Discharge | 96-99% @1C | ||||
| Charge Cut-off Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) | ||||
| Recommend Charge Current | 20-50A | ||||
| Max. Charge Current | 100A | ||||
| Max. Continuous Discharge Current | 100A | ||||
| Max. Pulse Current | 200A(5S) | ||||
| Discharge Cut-off Voltage | 10V | ||||
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity | ||||
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | ||||
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | ||||
| Water Dust Resistance | IP65 | ||||
| Cell&Method | 4S | ||||
| Package | ABS plastic case | ||||
| Dimensions(in./mm.) | 332*173*220mm | 406*173*208mm | 483*170*240mm | 522*240*218mm | 640*245*200mm |
| Weight(lbs./kg.) | 10.5kg | 13.5kg | 15kg | 21kg | 30kg |
| Terminal | M8 | ||||
| Display screen | Optional | ||||
| Bluetooth | Optional | ||||
