Installation steps of Driverless Floodlight Led:
- Product Details
- {{item.text}}
Quick Details
-
Control Mode:
-
Switch Control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRISE
-
Model Number:
-
SU-CB50T-P
-
Color Temperature(CCT):
-
3000K, 4500K, 6500K
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
100-130V, 220-240V AC, 50/60Hz
-
Lamp Luminous Efficiency(lm/w):
-
85-90m/W
-
Lamp Luminous Flux(lm):
-
4500
-
Working Lifetime(Hour):
-
30000
-
Working Temperature(℃):
-
-25 - 50
-
Color Rendering Index(Ra):
-
>70
-
Name:
-
Driverless Floodlight Led
-
Material:
-
Die-casting aluminum + tempered glass
-
Dimension:
-
L205XW205XH33
-
Protection:
-
IK08/IP66
Quick Details
-
Warranty(Year):
-
2-Year
-
Power Supply:
-
linear DOB solution
-
Lighting solutions service:
-
Lighting and circuitry design, Project Installation
-
Control Mode:
-
Switch Control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRISE
-
Model Number:
-
SU-CB50T-P
-
Color Temperature(CCT):
-
3000K, 4500K, 6500K
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
100-130V, 220-240V AC, 50/60Hz
-
Lamp Luminous Efficiency(lm/w):
-
85-90m/W
-
Lamp Luminous Flux(lm):
-
4500
-
Working Lifetime(Hour):
-
30000
-
Working Temperature(℃):
-
-25 - 50
-
Color Rendering Index(Ra):
-
>70
-
Name:
-
Driverless Floodlight Led
-
Material:
-
Die-casting aluminum + tempered glass
-
Dimension:
-
L205XW205XH33
-
Protection:
-
IK08/IP66

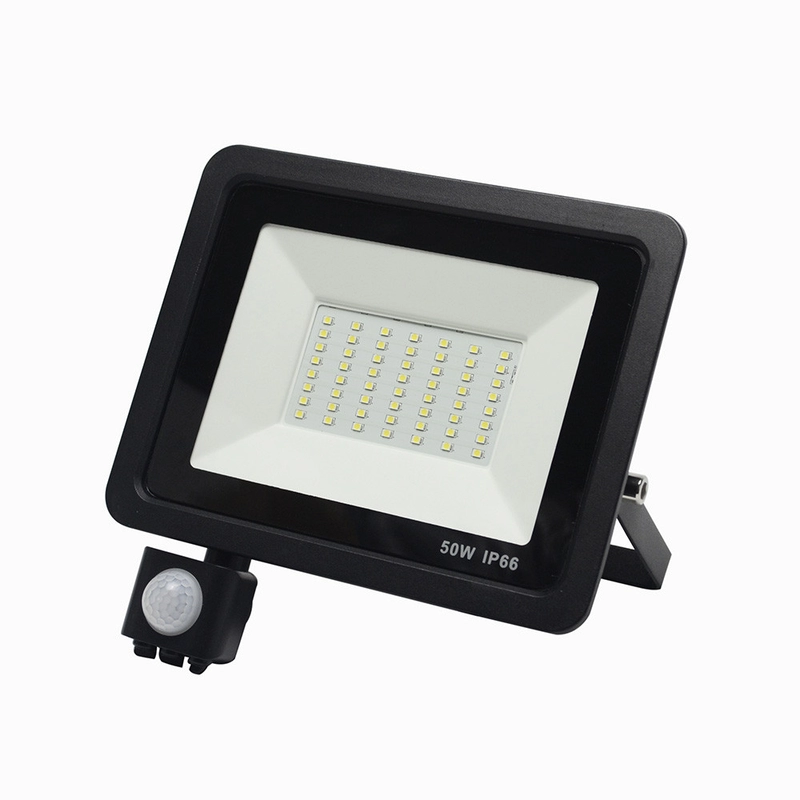

Ultra Thin Waterproof Flood LED Lighting with PIR Motion Sensor Driverless
Product Description
Characteristics of Waterproof Flood LED Lighting:
• Driverless Floodlight LED 50 Watts.
• Lumen flux: 4500lm for 50 watts.
• Dimension: L205*W205*H33mm.
• Color temperature: 3000K, 4500K, 6500K or customised.
• Driver mode: linear DOB solution (no driver inside).
• Body color: White, Black.
• Surge protection: 2KV.
• Adopting SMD2835 super bright LED chips, up to 90lm/W.
• The light can be saving 95% comparing to traditional lamps.
• CE, ROHS approved.
• Warranty is 2 years.
• Able to make microwave sensor, motion sensor, daylight / photocell sensor, and radar etc.
• LED junction temperature less than 40 degree.
• High light transmission up to 95%.
• Easy installation and maintenance, quality guaranteed.
• Waterproof IP66 design for indoor and outdoor landscape lighting.
Descriptions of Waterproof Flood LED Lighting:
The Waterproof Flood LED Lighting is ultra thin appearance with simple design. It adopts die-casting aluminum as the housing and tempered glass as the cover material. The radiator is fin type with fast heat dissipation. It adopts linear DOB working solution, keeping working and stable.
It is widely used for residential lighting like stair, door, shop, walkway, gateway, yard etc.
• Driverless Floodlight LED 50 Watts.
• Lumen flux: 4500lm for 50 watts.
• Dimension: L205*W205*H33mm.
• Color temperature: 3000K, 4500K, 6500K or customised.
• Driver mode: linear DOB solution (no driver inside).
• Body color: White, Black.
• Surge protection: 2KV.
• Adopting SMD2835 super bright LED chips, up to 90lm/W.
• The light can be saving 95% comparing to traditional lamps.
• CE, ROHS approved.
• Warranty is 2 years.
• Able to make microwave sensor, motion sensor, daylight / photocell sensor, and radar etc.
• LED junction temperature less than 40 degree.
• High light transmission up to 95%.
• Easy installation and maintenance, quality guaranteed.
• Waterproof IP66 design for indoor and outdoor landscape lighting.
Descriptions of Waterproof Flood LED Lighting:
The Waterproof Flood LED Lighting is ultra thin appearance with simple design. It adopts die-casting aluminum as the housing and tempered glass as the cover material. The radiator is fin type with fast heat dissipation. It adopts linear DOB working solution, keeping working and stable.
It is widely used for residential lighting like stair, door, shop, walkway, gateway, yard etc.
Specification
|
Name
|
Reflector LED 30W 50W 100W
|
|
|
||
|
SKU
|
SU-CBB30W-P
|
SU-CBB50W-P
|
SU-CBB100W-P
|
||
|
Rated Power
|
30 Watts
|
50 Watts
|
100 Watts
|
||
|
Available Wattages
|
30W, 50W, 100W, 150W, 200W, 300W
|
|
|
||
|
Product size (mm)
|
L159xW1166xH26
|
L205XW205XH33
|
L270xW255xH30
|
||
|
Input voltage
|
100-130V, 220-240V AC, 50/60Hz
|
|
|
||
|
Light source
|
SMD 2835 LEDs
|
|
|
||
|
Driver
|
Driverless DOB working solution
|
|
|
||
|
Luminous flux
|
85-90m/W
|
|
|
||
|
Color temperature
|
Warm White 3000K-3200K
|
|
|
||
|
|
White /Daylight white 4000K-4500K
|
|
|
||
|
|
Pure White 6000K-6500K
|
|
|
||
|
Material
|
Die-casting aluminum + tempered glass
|
|
|
||
|
Surging protection
|
2KV
|
|
4KV
|
||
|
Anti-shock level
|
IK08
|
|
|
||
|
Waterproof protection
|
IP66 Waterproof
|
|
|
||
|
Cable
|
3x0.75mm2 PVC cable
|
|
|
||
|
Housing color
|
White, Black
|
|
|
||
|
CRI
|
>70Ra
|
|
|
||
|
PF
|
>0.9
|
|
|
||
|
Beam angle
|
120 degree
|
|
|
||
|
Work temperature
|
~20 - +50 Degree
|
|
|
||
|
Lifespan
|
30,000H
|
|
|
||
|
Warranty
|
2 Years
|
|
|
||
Different Aluminium Comparision for Driverless Floodlight Led:
- We only use die-casting aluminium material.
- We only use die-casting aluminium material.
Packing & Delivery
* Better packaging, convenient logistics transportation and safe delivery!
