Quick Details
-
Use:
-
manure dewatering
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QISHENG
-
Product name:
-
screw press machine slurry biogas dehydrator for slaughter house
-
Power Required:
-
4kw
-
Sludge pump:
-
3kw 1450 r/min
-
Mesh diameter:
-
180mm
-
Feed port diameter:
-
76mm
-
Proceed capacity:
-
5-7cbm/h
-
Weight:
-
310kg
-
Overall size:
-
2000*600*1300 mm
Quick Details
-
Weight (KG):
-
310
-
Marketing Type:
-
Hot Product 2021
-
Type:
-
Solid Liquid Separator
-
Use:
-
manure dewatering
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QISHENG
-
Product name:
-
screw press machine slurry biogas dehydrator for slaughter house
-
Power Required:
-
4kw
-
Sludge pump:
-
3kw 1450 r/min
-
Mesh diameter:
-
180mm
-
Feed port diameter:
-
76mm
-
Proceed capacity:
-
5-7cbm/h
-
Weight:
-
310kg
-
Overall size:
-
2000*600*1300 mm
Animal manure dehydrator dewatering screw press machine slurry biogas dehydrator for slaughter house
Product Description

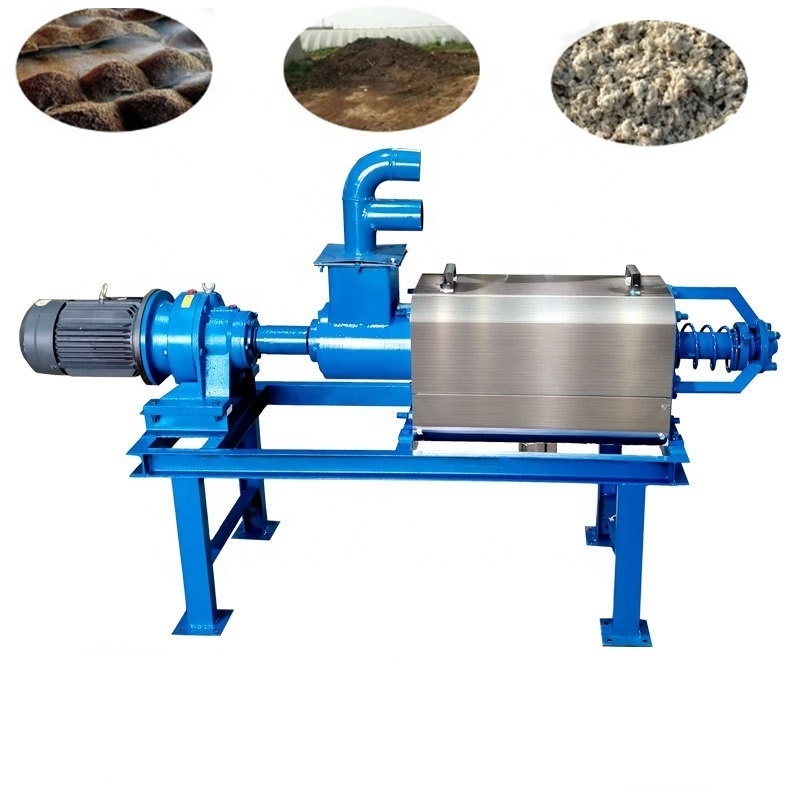

Introduction of Soild liquid separator machine
Solid liquid separator machine is mainly composed of a host machine, pumps, control cabinet, piping and other parts.
1.Solid liquid separator machine used to reduce the water content of animal dung, acid-sludge, medicine dregs, kitchen rubbish,and many other dregs;
2.The moisture content after dewatering is 50%-60%.
Technical data of Solid liquid separator machine:
|
Model
|
QS-180
|
QS-200
|
QS-280
|
||
|
Power
|
4 kw
|
5.5 kw
|
7.5kw
|
||
|
Sludge pump
|
3kw 1450 r/min
|
3kw 1450r/min
|
3kw 1450r/min
|
||
|
Mesh diameter
|
180 mm
|
200 mm
|
280 mm
|
||
|
Feed port diameter
|
76 mm
|
76 mm
|
76 mm
|
||
|
Overflow port diameter
|
76 mm
|
76 mm
|
76 mm
|
||
|
Drain diameter (water outlet)
|
110 mm
|
110 mm
|
110 mm
|
||
|
Capacity
|
5-7 M³/H
|
7-9M³/H
|
9-11 M³/H
|
||
|
Dimension
|
2000*600*1300 mm
|
2200*610*1350 mm
|
2400*800*1300 mm
|
||
|
Weight
|
310 kg
|
470 kg
|
550 kg
|
||
|
Remarks
|
Above data is just for reference.Different materials moisture ,capacity request ,the parameter may has Subtle gap difference ,Please refer to the actual situation.
|
|
|
||
Helical extrusion solid-liquid separator - handling capacity: liquid (solid content < 50%)
|
Model
|
Capacity(m3/h)
|
|
|
|
|
|
|
||||||
|
|
Cong Dung sludge
|
Pig Dung sludge
|
Chicken Dung sludge
|
Duck Dung Sludge
|
Biogas waste
|
distilled grain
|
Medicine
residue
|
||||||
|
QS200
|
8-10
|
8-10
|
8-10
|
8-10
|
5-8
|
5-8
|
5-8
|
||||||
|
QS280
|
10-15
|
10-15
|
10-15
|
10-15
|
10-15
|
10-15
|
10-15
|
||||||
Other parts of Manure Dewatering Machine for Sale
|
Item
|
Detail
|
|
Pump
|
1 Unit,4KW/3KW
|
|
Water pipe
|
3 pieces,Dia:10mm/13.5mm,12 meters
|
|
Water seal
|
Two units
|
|
Switch Box
|
One Unit
|
Customer Site and feedback:
Packing & Delivery
Packing: Nude or plywood case or as request
Delivery Date: 20 days after confirm the down payment.
Shipping Method: By sea
Shipping Port: Qingdao, China
Why Choose Us
♦Pre-sales:
1 Perfect 7*24hours inquiry and professional consulting service
2.Visit our factory anytime
♦Sale:
1. Update the production schedule in time
2. Quality supervision
3. Product acceptance
4. Shipping on time
♦After-sales:
1. Guarantee:1 year ,during this period we will offer free spare parts if they are broken.
2. Training how to install and use machine
3. Engineers available to service overseas
4. Skill support during the whole using life
