Quick Details
-
Output Speed:
-
1042rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
18
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CMR
-
Product name:
-
Agricultural Gearbox
-
Housing Material:
-
Cast iron
-
Gear material:
-
20CrMnTi Steel
-
Shaft material:
-
20CrMnTi Steel
-
Toothing:
-
Gleason Helical Teeth/Straight Teeth
-
Ratio:
-
1 : 1.93
-
Output torque:
-
260
-
Input torque:
-
501
-
Fit for:
-
Rotary tillers, shredders, fertilizer spreaders
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
260N.m
-
Input Speed:
-
540rpm
-
Output Speed:
-
1042rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
18
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CMR
-
Product name:
-
Agricultural Gearbox
-
Housing Material:
-
Cast iron
-
Gear material:
-
20CrMnTi Steel
-
Shaft material:
-
20CrMnTi Steel
-
Toothing:
-
Gleason Helical Teeth/Straight Teeth
-
Ratio:
-
1 : 1.93
-
Output torque:
-
260
-
Input torque:
-
501
-
Fit for:
-
Rotary tillers, shredders, fertilizer spreaders
Products Description
Application:
Fertiliser spreader
Salt spreader
Double disc fertiliser spreader
Saw mills
Rotary tiller
Rotary cultivator
Round baller
Shredders
Main features:
Small volume
Increase the torque of your orbit motor
Specially made for apron drive
Orbit motor flange SAE A
|
Model NO.: T100EX
|
|
|
|
|
|
|||||
|
Ratio
|
Input (rpm)
|
Output (rpm)
|
Kw (HP)
|
Input torque (N.M)
|
Output torque (N.m)
|
|||||
|
1:3
|
540
|
1620
|
22/29.9
|
390
|
130
|
|||||
|
1:1.93
|
540
|
1042
|
29.4/40
|
501
|
260
|
|||||
|
1:1.93
|
1000
|
1093
|
40/54.4
|
366
|
190
|
|||||
|
1:1.66
|
540
|
896
|
30/40.8
|
514
|
310
|
|||||
|
1:1.66
|
1000
|
1660
|
43.4/59
|
453
|
273
|
|||||

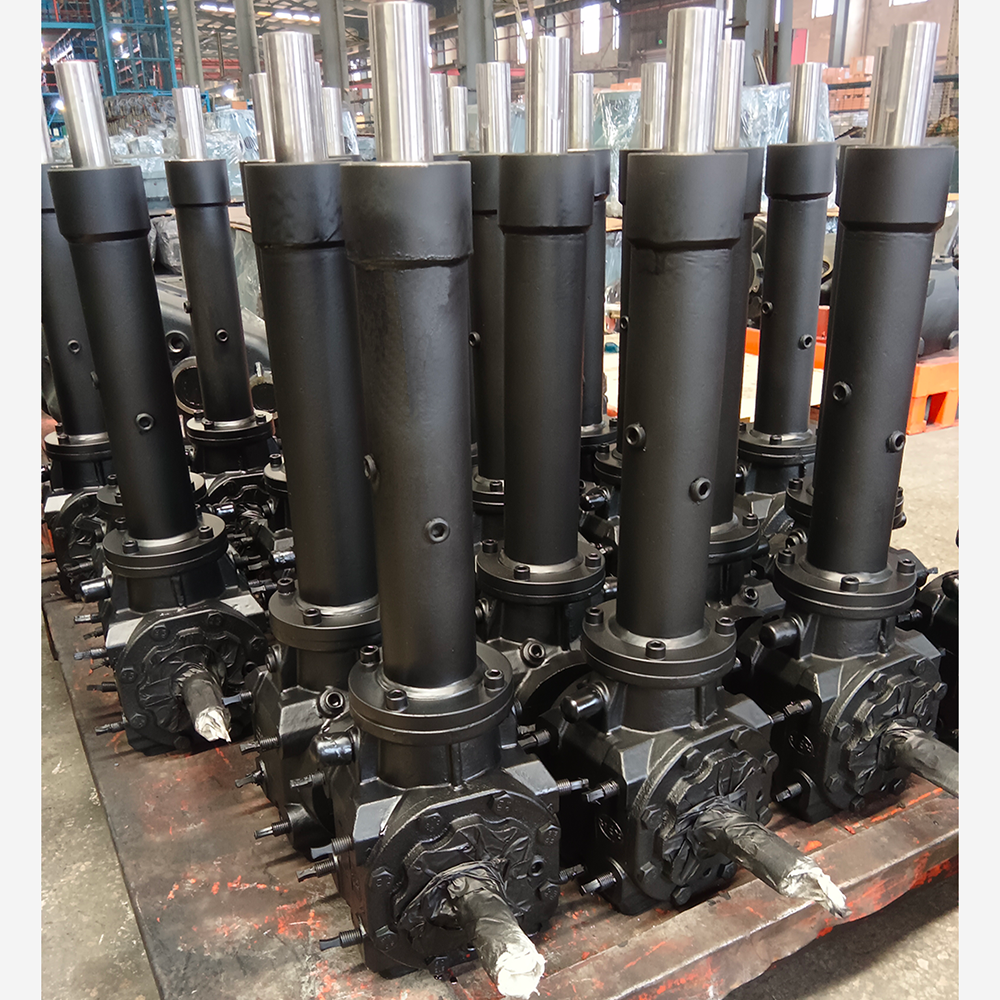

Details Images
