Quick Details
-
Model Number:
-
Z41W-16/25/40P, Z41W-16/25/40R
-
Brand Name:
-
YaoSheng
-
Body material:
-
Stainless Steel
-
Seal Material:
-
Stainless Steel
-
Connection:
-
Flange Ends
-
Standard:
-
GB, DIN, ANSI, DIN
-
Working medium:
-
Water, oil, gas, nitric acid
-
Working pressure:
-
PN16/25/40
-
Working Temperature:
-
≤425℃
-
Packing:
-
Plywood Case
-
Payment:
-
30% in advance
Quick Details
-
Port Size:
-
DN15~DN1200
-
Warranty:
-
12Month, 12 Months
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
Z41W-16/25/40P, Z41W-16/25/40R
-
Brand Name:
-
YaoSheng
-
Body material:
-
Stainless Steel
-
Seal Material:
-
Stainless Steel
-
Connection:
-
Flange Ends
-
Standard:
-
GB, DIN, ANSI, DIN
-
Working medium:
-
Water, oil, gas, nitric acid
-
Working pressure:
-
PN16/25/40
-
Working Temperature:
-
≤425℃
-
Packing:
-
Plywood Case
-
Payment:
-
30% in advance
Product Description

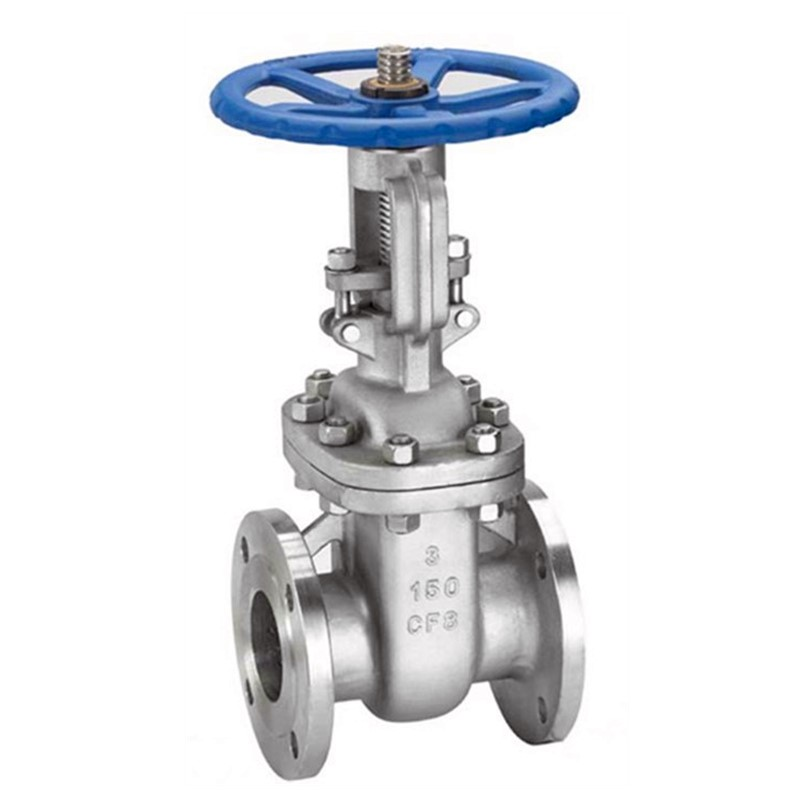

The
anti-corrosive stainless steel gate valve produced
by
HebeiYaosheng Factory
is extensively used in petro-chem industry, pharmacy and power industry ect.And it is suitable the nitric acid type pipeline which all opens all shuts, not use throttle flow.
|
Main parts and materials
|
|
|
||
|
No.
|
Main parts
|
Materials
|
||
|
1
|
Valve bady
|
Stainless steel
|
||
|
2
|
Bonnet
|
Stainless steel
|
||
|
3
|
Disc
|
Stainless steel
|
||
|
4
|
Stem
|
Stainless steel
|
||
|
5
|
Yoke nut
|
Brass
|
||
|
6
|
Hand wheel
|
Stainless steel
|
||
|
Function and specification
|
|
|
|
|
|
|||||
|
Type
|
PN(MPa)
|
Testing pressure (MPa)
|
|
Suitable temperature(℃)
|
Suitable medium
|
|||||
|
|
|
Strength (water)
|
Enclose (water)
|
|
|
|||||
|
Z41W-16P/R
|
1.6
|
2.4
|
1.8
|
≤425℃
|
Nitric Acid
|
|||||
|
|
|
|
|
|
|
|||||
|
Z41W-25P/R
|
2.5
|
3.8
|
2.8
|
≤425℃
|
Nitric Acid
|
|||||
|
Z41W-40P/R
|
4.0
|
6.0
|
4.4
|
≤425℃
|
Nitric Acid
|
|||||
|
Outline and connecting measurement
|
|
|
|
|
|
|
||||||
|
Type
|
DN
|
Measurement(mm)
|
|
|
|
Reference weight (kg)
|
||||||
|
|
|
L
|
D1
|
H
|
Z*Фd
|
|
||||||
|
Z45W-16P/R
|
15
|
130
|
65
|
175
|
4-14
|
4
|
||||||
|
|
20
|
150
|
75
|
180
|
4-14
|
5
|
||||||
|
|
25
|
160
|
85
|
210
|
4-14
|
6
|
||||||
|
|
32
|
180
|
100
|
280
|
4-18
|
7
|
||||||
|
|
40
|
200
|
110
|
350
|
4-18
|
18
|
||||||
|
|
50
|
250
|
125
|
358
|
4-18
|
29
|
||||||
|
|
65
|
270
|
145
|
375
|
4-18
|
33
|
||||||
|
|
80
|
280
|
160
|
433
|
8-18
|
45
|
||||||
|
|
100
|
300
|
180
|
502
|
8-18
|
63
|
||||||
|
|
125
|
325
|
210
|
612
|
8-18
|
108
|
||||||
|
|
150
|
350
|
240
|
676
|
8-22
|
134
|
||||||
|
|
200
|
400
|
295
|
820
|
12-22
|
192
|
||||||
|
|
250
|
450
|
355
|
969
|
12-26
|
273
|
||||||
|
|
300
|
500
|
410
|
1142
|
12-26
|
379
|
||||||
|
|
350
|
550
|
470
|
1280
|
16-26
|
590
|
||||||
|
|
400
|
600
|
525
|
1452
|
16-30
|
850
|
||||||
Tips:
1.Compact structure, reasonable design, good valve rigidity, smooth passage.
2. Good corrosion resistance, scratch resistance and wear resistance
Production process
The crystallization of
20 years
of manufacturing experience,
all products are fully inspected before leaving the factory,
achivev
100% qualified
,
ensuring that all products are exquisite.
Product packaging
(1)we usually use cartons to package our gate valve.
(2)We also use plywood cases to package our gate valve.
(3)One 20' container can in bulk loaded on 20pcs plywood cases more or less.
(4)We can pack according to specific customers' requests.
(5)Customers' logos are available on package of the gate valve.
