Specifications:

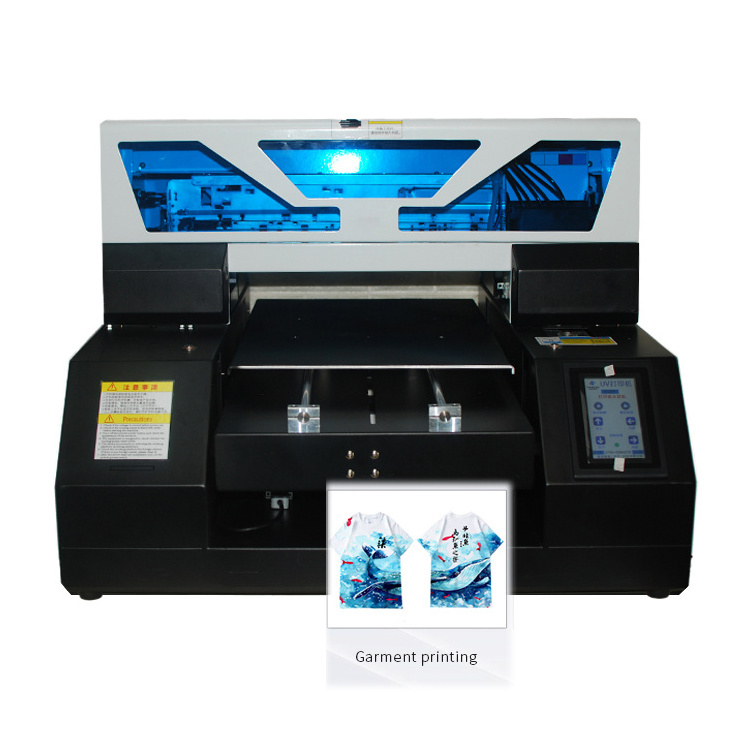

1. Model:A3-19(full-automatic)

2. Printing head:r1390

3. UV printing area:267*420mm

4. Printing platform:300*420MM

5. Printing precision:2880*1440DPI

6. Software:AcroRIP

7. Applicable system:Windows(Does not support the apple software)

8. Printing speed :breadth(approxinmately 1440dpi/7min)

9. Color configuration:Support

10. Printing height:0-120,Infrared ray measurement

11. Embossment print :Support

12. Ink consumption:1M2/20ml

13. Ink supply system:6-color Clss unk supply

14. White ink output:Support/simultaneous input of while and chromatic color

15. UV lamp cooling:Water-cooled+air-cooled

16. UV lamp power:30W

17. Packing size:700*700*620MM

18. Equipment dimension:670*670*510MM

19. Net weight/gross weight:46KG/66KG

20. Platform adjustment:Touch screen+infrared height measurement

21. Platform driver:Pulse motor driver

22. Voltage/plug:AC100-230v/it is optional according to different countries

23. Sprinkler protection:Intelligent infrared collision system,absorbing ink pad preservative solution anti clogging

24. Pirnt media:Mobile phone shell/leather/lithograph/crystal/acrylic/card/CD/

U- disk/name plate,etc.plane

Package Content:

1* Machine

1* Magnetic suction pad

1* The power cord

2* Ink sac *

1* crepe paper

3* Cylinde

1* Double-sided adhesive

1* Encryption dog

1* U disk

1* Cleaning fluid

1* Sprinkler head protection fluid

6* UV blackwater

15* Following from

1* Mobile phone locator

1* Description
