Quick Details
-
Max. Work Height:
-
55m
-
Size:
-
7065*2280*3140mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
Color:
-
Red
-
Model:
-
ISUZU 700P Fire Fighting Truck Price
-
Gross Weight:
-
9775kg
-
Curb Weight:
-
6300kg
-
Wheelbase:
-
3815mm
-
Tank Volume:
-
4ton water
-
Max speed:
-
90 km/h
-
Tank material:
-
Carbon Steel
-
Fire Equipment:
-
Available
-
Drive type:
-
4*2
Quick Details
-
Drive Wheel:
-
4X2
-
Condition:
-
New
-
Emission Standard:
-
Euro 4
-
Max. Work Height:
-
55m
-
Size:
-
7065*2280*3140mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
Color:
-
Red
-
Model:
-
ISUZU 700P Fire Fighting Truck Price
-
Gross Weight:
-
9775kg
-
Curb Weight:
-
6300kg
-
Wheelbase:
-
3815mm
-
Tank Volume:
-
4ton water
-
Max speed:
-
90 km/h
-
Tank material:
-
Carbon Steel
-
Fire Equipment:
-
Available
-
Drive type:
-
4*2
ISUZU brand new fire truck for sale in philippine

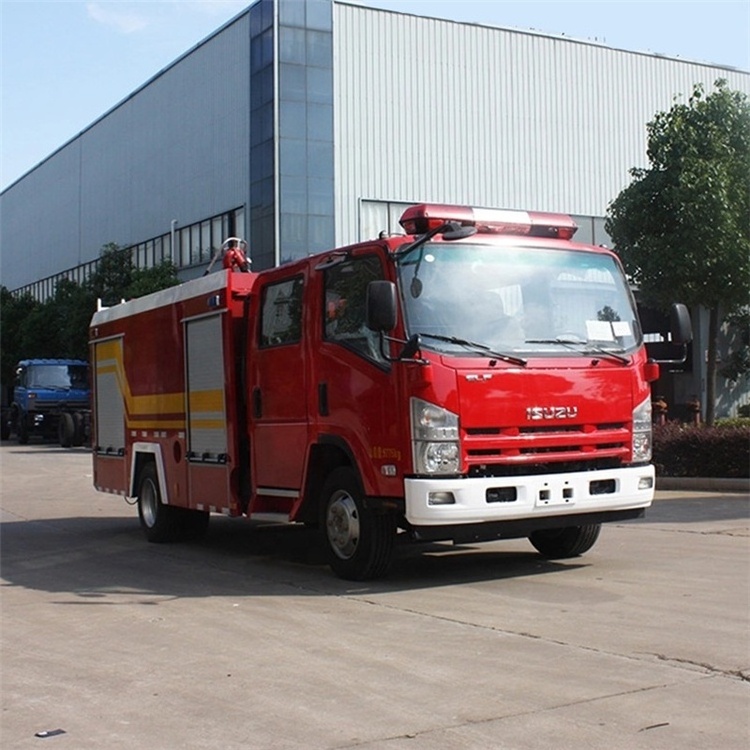

Product Pictures
Our company is a professional FIRE TRUCK manufacturer for 10 years
Chassis supply:DONGFENG,SINOTRUCK,JAC,and ISUZU brand others
Get the latest quotation,pls contact Ms.Marilyn, WhatsApp and WeChat online: 0086-15907145633
|
Name |
CLW ISUZU brand new fire truck for sale in philippine |
||
|
Item |
Specifications |
Item |
Specifications |
|
Truck Parameter |
|||
|
Model |
CLW5101GXFSG30 |
Chassis Model |
QL11109KARY |
|
Gross Weight (kg) |
9775 |
Overall dimensions (mm) |
7065 ×2280×3140 |
|
Payload Weight (kg) |
3100 |
Tank Volume(cbm/t) |
water 4.0 |
|
Curb Weight (kg) |
6300 |
Wheelbase (mm) |
3815 |
|
Engine Parameter |
|||
|
Model |
QL11109KARY diesel |
Brand |
ISUZU brand |
|
Power/Displacement (kw/ml) |
139/5193 |
Emission Level |
Euro 4 |
|
Specification |
|||
|
Max speed (km/h) |
90 |
Front Track (mm) |
1680 |
|
Cab |
2+3 |
Rear Track (mm) |
1650 |
|
Leaf Spring |
8/10+6 |
Front/Rear Overhang (mm) |
1110/2050 |
|
Number of Tyres |
6 |
Approach / Departure Angle( °) |
21/13 |
|
Tyre Specification |
235/75R17.5-16PR |
Axle Load (kg) |
2700/7075 |
|
Number of axles |
2 |
||
|
Special Function |
|||
|
Tank Capacity (L/T) |
water 4ton |
||
|
Fire Monitor |
Model:PS30 rate of flow:30L/S/1MPa,water range: ≥50m |
||
|
Fire Pump(Normal Pressure)middle-lower pressure is optional |
1. Normal pressure model::CB10/30,rate of flow:30L/s, pressure:1.0MPa |
||
|
2.water diversion time ≤35s (7m absorbing depth) water ring sandwich type full power PTO |
|||
Fire fighting equipment
Workshop of CLW ISUZU brand new fire truck for sale in philippine
More special automobile we manufacture
1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck
2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader
3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker Truck
6. Road Sweeper Truck
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker/LPG Tank Trailer/LPG skid plant station
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head Truck
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer
