Quick Details
-
Weight (KG):
-
3800 KG
-
Name:
-

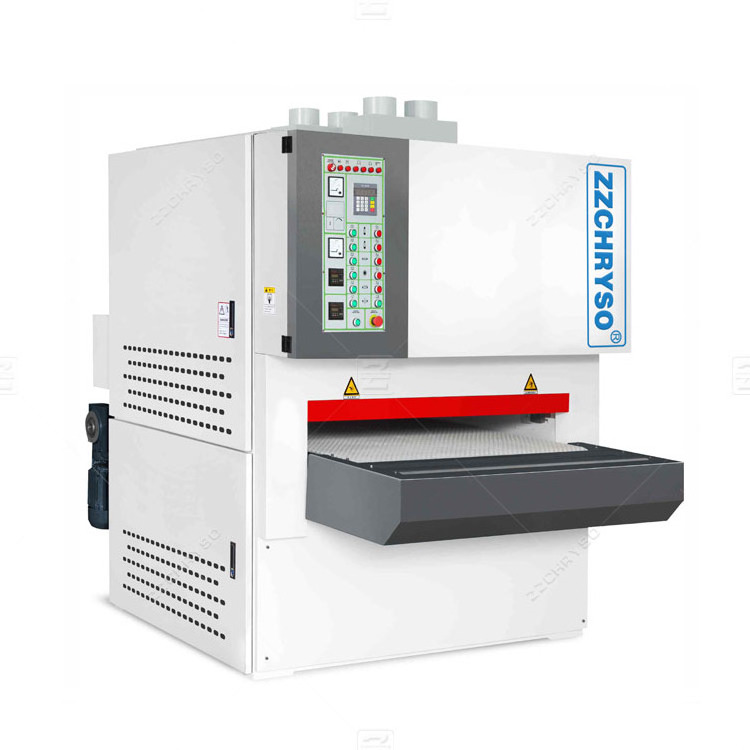

Plywood Solid Wood Wide Belt Sanding Machine
-
Application:
-
Sanding and polishing of solid wood, MDF, veneer
-
Types:
-
Planer sanding, Upper float sanding for UV, Veneering sanding
-
Processing thickness(mm):
-
100,150
-
Sanding motor power(kw):
-
Frequency motor 7.5, 11, 22, 30
-
Sanding frames quantity(pcs):
-
2,3
-
Dust collector brush motor power(kw):
-
0.37
-
Lift motor power(kw):
-
0.37, 0.75
-
Sanding speed(m/s):
-
12, 18, 22
-
Working pressure(mpa):
-
0.6-0.8
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ZZCHRYSO
-
Core Components:
-
Sanding frame
-
Weight (KG):
-
3800 KG
-
Name:
-
Plywood Solid Wood Wide Belt Sanding Machine
-
Application:
-
Sanding and polishing of solid wood, MDF, veneer
-
Types:
-
Planer sanding, Upper float sanding for UV, Veneering sanding
-
Processing thickness(mm):
-
100,150
-
Sanding motor power(kw):
-
Frequency motor 7.5, 11, 22, 30
-
Sanding frames quantity(pcs):
-
2,3
-
Dust collector brush motor power(kw):
-
0.37
-
Lift motor power(kw):
-
0.37, 0.75
-
Sanding speed(m/s):
-
12, 18, 22
-
Working pressure(mpa):
-
0.6-0.8
Application
Woodworking sanding machine
Sanding machine is suitable for rough and fine
sanding, grinding and polishing
of all kinds of
solid wood, MDF, veneer
and other materials, conventional wood lines and planks, such as regular surfaces, special-shaped surfaces, and plain surface.
It can be realized by the combination of different components and different abrasives.
It is an ideal equipment for the production of
special-shaped sanding such as doors, windows, cabinets, and furniture.
Product Description
Solid Wood Furniture Cabinet MDF Polish Sanding Machine
Wood door before sanding
Wood door after sanding
Cabinet before sanding
Cabinet after sanding
Wood board before sanding
Wood board after sanding
Solid wood beam before sanding
Wood board after sanding
1.Planer sanding machine
Planer roller and sanding combining rollers,
planning firstly and then sandin
g, effective and saving energy.
The planer roller fixed with air pressing facility, Anti-rebound pressing roller and system, it can prevent rebounding of the material and denting.
T
he
planning blade
densely distributed at
spiral type
, it's good for high volume planning with high smoothness,efficiency and precision.
|
Model
|
SK-R-RP650
|
SK-R-RP1000
|
SK-R-RP1300
|
|
Working Thickness(mm)
|
10-150
|
10-150
|
10-100
|
|
Shortest Processing Length(mm)
|
440
|
440
|
480
|
|
Planer motor power(kw)
|
7.5
|
11
|
22
|
|
First sand frame motor power(kw)
|
7.5(11)
|
11(22)
|
22(30)
|
|
Second sand frame motor power(kw)
|
7.5
|
11
|
22
|
|
Transmission motor power(kw)
(frequency control of motor speed) |
1.5
|
2.2
|
4
|
|
Dust collector brush motor power(kw)
|
0.37
|
0.37
|
0.37
|
|
Lift motor power(kw)
|
0.37
|
0.37
|
0.37
|
|
Planer knife line speed(m/s)
|
36
|
36
|
36
|
|
Sanding belt size(mm)
|
1900*660
|
2200*1020
|
2200x1320
|
|
Line speed of first sanding frame(m/s)
|
22
|
22
|
22
|
|
Line speed of second sanding frame(m/s)
|
18
|
18
|
18
|
|
Working pressure(mpa)
|
0.55
|
0.6
|
0.6-0.8
|
|
Vacuum air volume(m3/h)
|
8000
|
12000
|
15000
|
2.Upper float sanding machine for UV production
Upper floated Sander is the sanding machine can work together with other woodworking machines
in production line
,and it can fit with any machines to
combination production line
.
lt can improve production efficiency.
The
sanding roller adopts frequency control
, can meet all demand of sanding process.
The
sanding belt with clean device
to clean the belt ,increase the service life of belt ,improve the sanding quality.
Furniture before sanding
Furniture after sanding
|
Model
|
SFR-RD650
|
SFR-RD1000
|
SFR-RD1300
|
|
Processing Thickness(mm)
|
2-150
|
2-150
|
2-100
|
|
Shortest Processing Length(mm)
|
280
|
320
|
380
|
|
First sand frame motor power(kw)
|
5.5
|
7.5(11)
|
15(18.5)
|
|
Second sand frame motor power(kw)
|
5.5
|
7.5(11)
|
11(15)
|
|
Transmission motor power(kw)
(frequency control of motor speed) |
1.5
|
1.5
|
2.2
|
|
Dust collector brush motor power(kw)
|
0.37
|
0.37
|
0.37
|
|
Lift motor power(kw)
|
0.75
|
0.75
|
0.75
|
|
Sanding belt size(mm)
|
1900*660
|
2200*1020
|
2620x1320
|
|
Line speed of sanding frame(m/s)
|
3-12
|
3-12
|
3-12
|
|
Working pressure(mpa)
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
|
Vacuum air volume(m3/h)
|
3500
|
5000
|
8000
|
3.Veneer laminating sanding machine
Veneer laminating sanding machine is mainly used for
panel thickness plain before laminating
and
precise sanding after veneer laminating
;MDF precise sanding.
Eccentric enlarged rubber roller
, high precision.Eccentrically lift up and down, convenient and simple.
Complete frame structure
with higher stability, reduce vibration.
Vacuum absorption
cooperates with pressing facility to solve the problem of thin panel sanded to broken because of laminating deformation.
ln case of failure (lack of pneumatic pressure, abrasive belt brake, emergency brake),conveyor table drop down automatic to protect work piece free from being damaged.
Pressing construction
ensure the boards stable during the panning.
Raw material wood wood veneer
Raw material wood wood veneer
|
Model
|
SR-RM1300
|
|
Processing Thickness(mm)
|
2-100
|
|
Shortest Processing Length(mm)
|
380
|
|
First sand frame motor power(kw)
|
30(37)
|
|
Second sand frame motor power(kw)
|
18.5
|
|
Transmission motor power(kw)
(frequency control of motor speed) |
3(4)
|
|
Dust collector brush motor power(kw)
|
0.37
|
|
Lift motor power(kw)
|
0.37
|
|
Sanding belt size(mm)
|
2200x1320
|
|
Working pressure(mpa)
|
0.6-0.8
|
|
Vacuum air volume(m3/h)
|
15000
|
Details Images
America Banner Sensor
Adopts America Banner Sensor to control the swing and off tracking of sanding belt.
Vacuum absorption device
Equipped for sanding all kinds of rotary cut solid wood veneer and slicing veneer.
German Rexroth frequency conversion
The conveyor belt adopts German Rexroth frequency conversion adjustment, which is easy to operate.
Thickness gauge controlled by buttons
The thickness gauge is controlled by buttons, with high precision and easy operation.
Enlarged rubber thickness-fixing roller
Enlarged rubber thickness-fixing roller, high machining accuracy, convenient, simple adjustment and lifting of eccentric shaft, reasonable layout and easy operation.
Schneider electric components
The contactor adopts the French Schneider brand with high stability, the main motor is equipped with overload protection.
Advantages
1000/1300mm wide belt sanding machine
2. The
belt swing is controlled by air pressure
, and the swing is stable and even.
3. The front and rear double emergency stop buttons can control the rapid braking of the equipment (wire resistance braking).
4. It is equipped with a fault display (the belt deviation from left and right, insufficient air pressure, front and rear emergency buttons), which is convenient for the basic fault judgment of the equipment.
5. The automatic lowering protection device is adopted for emergency stop of failure, which will not sand grooves on the board surface due to shutdown.
6. The conveyor belt uses a small square rubber belt , which is 2-3 times more wear-resistant than other brands.
7. The line speed of the conveyor belt is controlled by the German Rexroth inverter , which can be adjusted according to the sand products to improve the sand cutting quality.
8. Germany Pepperl+Fuchs photoelectric control belt swing and belt deviation.
9. The first group of sand racks adopts rubber rollers with a diameter of 300mm and 45°; the second group of sand racks adopts rubber rollers with a diameter of 300mm and 25°, which are more precise and delicate.
10. The lifting and lowering of the conveying bed adopts the T-shaped screw technology with high precision.
11. The pressing device adopts 7cm rubber pressing roller to make the feeding more stable and smooth.
12. The main bearing of the equipment adopts Japanese brands
13. The electric components brand selected for the equipment is Schneider .
3. The front and rear double emergency stop buttons can control the rapid braking of the equipment (wire resistance braking).
4. It is equipped with a fault display (the belt deviation from left and right, insufficient air pressure, front and rear emergency buttons), which is convenient for the basic fault judgment of the equipment.
5. The automatic lowering protection device is adopted for emergency stop of failure, which will not sand grooves on the board surface due to shutdown.
6. The conveyor belt uses a small square rubber belt , which is 2-3 times more wear-resistant than other brands.
7. The line speed of the conveyor belt is controlled by the German Rexroth inverter , which can be adjusted according to the sand products to improve the sand cutting quality.
8. Germany Pepperl+Fuchs photoelectric control belt swing and belt deviation.
9. The first group of sand racks adopts rubber rollers with a diameter of 300mm and 45°; the second group of sand racks adopts rubber rollers with a diameter of 300mm and 25°, which are more precise and delicate.
10. The lifting and lowering of the conveying bed adopts the T-shaped screw technology with high precision.
11. The pressing device adopts 7cm rubber pressing roller to make the feeding more stable and smooth.
12. The main bearing of the equipment adopts Japanese brands
13. The electric components brand selected for the equipment is Schneider .
