Quick Details
-
Model Number:
-
XZ-5108
-
Protection Level:
-
IP66
-
Operating Temperature:
-
-10~+80C
-
Max. Current:
-
10A
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XZ-5108
-
Protection Level:
-
IP66
-
Operating Temperature:
-
-10~+80C
-
Max. Current:
-
10A
-
Certification:
-
CE

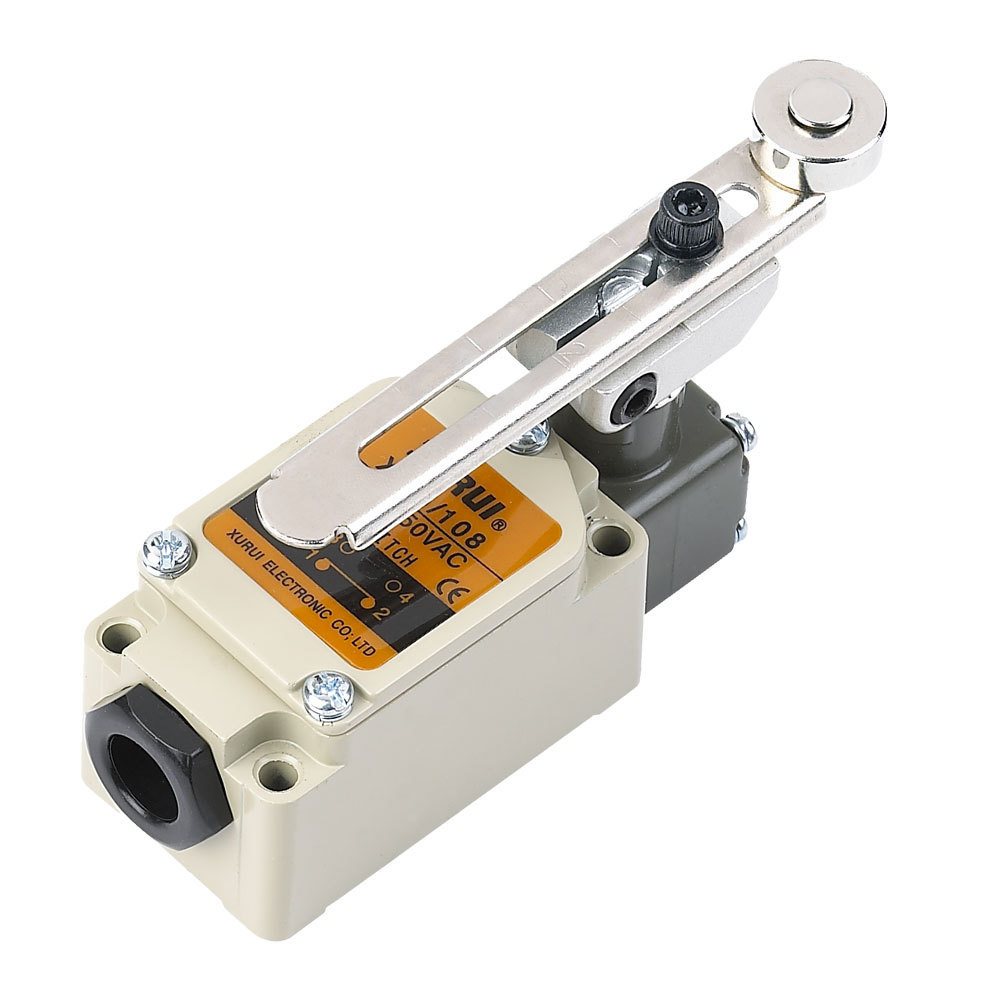

XURUI winch hoist switch / METAL limit switches az5108 / limit switch YUEQING factory XZ-5108
|
Item |
Data |
|
|
Rating load |
10A/250VAC |
|
|
Operating speed |
1mm-1m/s |
|
|
Operating frequency |
Mechanical |
120times/min |
|
Electrical |
30times/min |
|
|
Insulation resistance |
|
100M Ω Above DC500V |
|
Contact resistance |
|
25m Ω initial value |
|
Withstand voltage |
Non-connection wire |
1000VAC |
|
Every terminal |
1500VAC |
|
|
Vibration |
Misoperation |
10-55Hz Amplitude 1.5mm |
|
Impact |
Durable |
1000m/s ² |
|
Misoperation |
300m/s ² |
|
|
Life |
Electrical |
100,000 above |
|
Mechanical |
1,000,000 above |
|
|
Protection degree |
IP66 |
|
|
Operating temperature |
-10~+80 ℃ |
|
|
Operating humidity |
< 85% |
|
