Quick Details
-
Brand Name:
-
ZJBENY
-
Model Number:
-
BYSS.1-50-2P.
-
Max. Current:
-
50A
-
Utiizatin category DC:
-
DC-21B,DC-PV2
-
Rated Voltage:
-
800V 1000V 1200V 1500V
-
Pole no.:
-
2P
-
Mounting:
-
Panel mounting
-
Max current:
-
50A
-
Rated short-time withstand current(1s):
-
1.5 kA
-
IP rating terminals:
-
IP66
-
Ambient temperature allowed between:
-
-40℃~+85℃
-
shipping:
-
free
-
Certification:
-
CE SAA TUV
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
1000V DC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZJBENY
-
Model Number:
-
BYSS.1-50-2P.
-
Max. Current:
-
50A
-
Utiizatin category DC:
-
DC-21B,DC-PV2
-
Rated Voltage:
-
800V 1000V 1200V 1500V
-
Pole no.:
-
2P
-
Mounting:
-
Panel mounting
-
Max current:
-
50A
-
Rated short-time withstand current(1s):
-
1.5 kA
-
IP rating terminals:
-
IP66
-
Ambient temperature allowed between:
-
-40℃~+85℃
-
shipping:
-
free
-
Certification:
-
CE SAA TUV

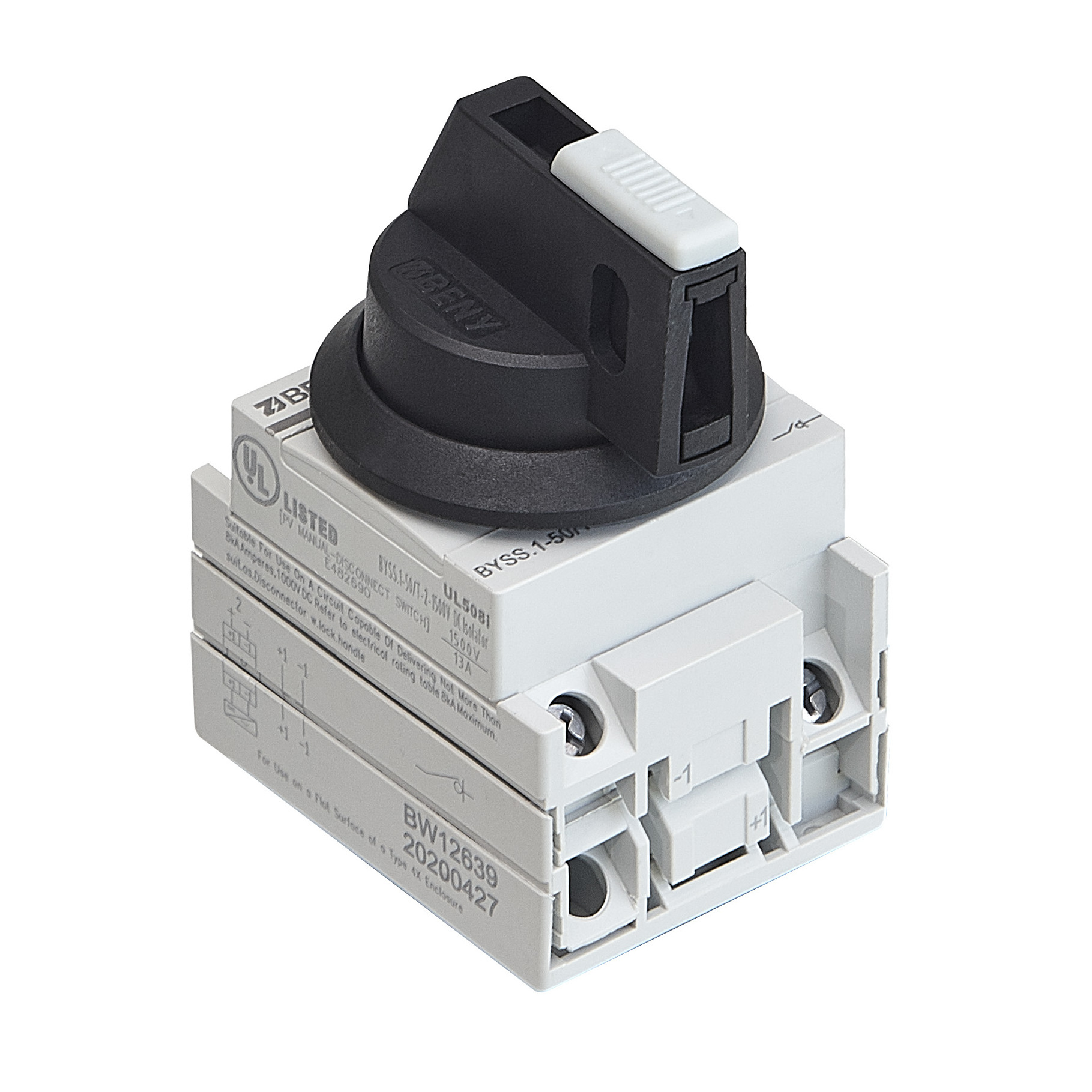

350V 500V 600V 750V 1000V DC disconnect switch UL508i Listed
The BYSS .1-50/T (panel mounting) and BYSS.2-50 (din rail mounting) DC switch es are developed for solar PV high power voltage.
Compact body design is for solar inverter DC side, solar combiner box and battery energy storage systems application.
Patented arc extinguishing chamber ensure safety and longer working life.
U p to 1 0 00V DC circuit with single conductor :
350V 500V 600V 750V voltage levels at a direct current range from 16A to 50A.
1000V max with current from 16A to 30A.
Features
*Non-polar switch wiring
* UL 508i listed
*350V/500V/600V/750V at 16A to 50A
*1000V at 16A to 30A
*Lockable handle
* Patented arc extinguishing instruction for arc interruption in 3ms.
