Length*width:4000*2500mm
- Product Details
- {{item.text}}
Quick Details
-
Screw Speed (rpm):
-
70 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KEDA
-
Voltage:
-
380V 50HZ 3 phase, 220V/380V
-
Dimension(L*W*H):
-
40m 6.0m 2.6m
-
Power (kW):
-
90
-
Weight:
-
3500 KG
-
VISCOSITY:
-
8500 200 CPS
-
Capacity:
-
150-200 KG/H
-
Type:
-
7mm 11mm Hot Melt Glue Stick
-
Suitable glue gun:
-
40W
-
Main Raw Material:
-
EVA Copolymer Synthetic Resin
-
HS CODE:
-
8477209000
-
Machine Length:
-
20m
-
Glue stick colours:
-
White Tranparent
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
28:1
-
Screw diameter (mm):
-
90 mm
-
Screw Speed (rpm):
-
70 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KEDA
-
Voltage:
-
380V 50HZ 3 phase, 220V/380V
-
Dimension(L*W*H):
-
40m 6.0m 2.6m
-
Power (kW):
-
90
-
Weight:
-
3500 KG
-
VISCOSITY:
-
8500 200 CPS
-
Capacity:
-
150-200 KG/H
-
Type:
-
7mm 11mm Hot Melt Glue Stick
-
Suitable glue gun:
-
40W
-
Main Raw Material:
-
EVA Copolymer Synthetic Resin
-
HS CODE:
-
8477209000
-
Machine Length:
-
20m
-
Glue stick colours:
-
White Tranparent
Product Description
|
Power
|
22kw
|
Reducer
|
ZLY250
|
|
Diameter of the screw
|
Φ90m
|
Mixing type
|
Rotary
|
|
Cooling type
|
water jacket
|
Volume
|
400L
|
|
Heating power
|
25kw
|
Total power
|
90kw
|
|
Length of the screw
|
3200mm
|
Water pump power
|
0.55kw
|
|
Output
|
150-200kg/h
|
Installing dimension of the equipmen
|
40m×6.0m×2.6m
(L*W*H) |
Detailed Images
|
Composition:

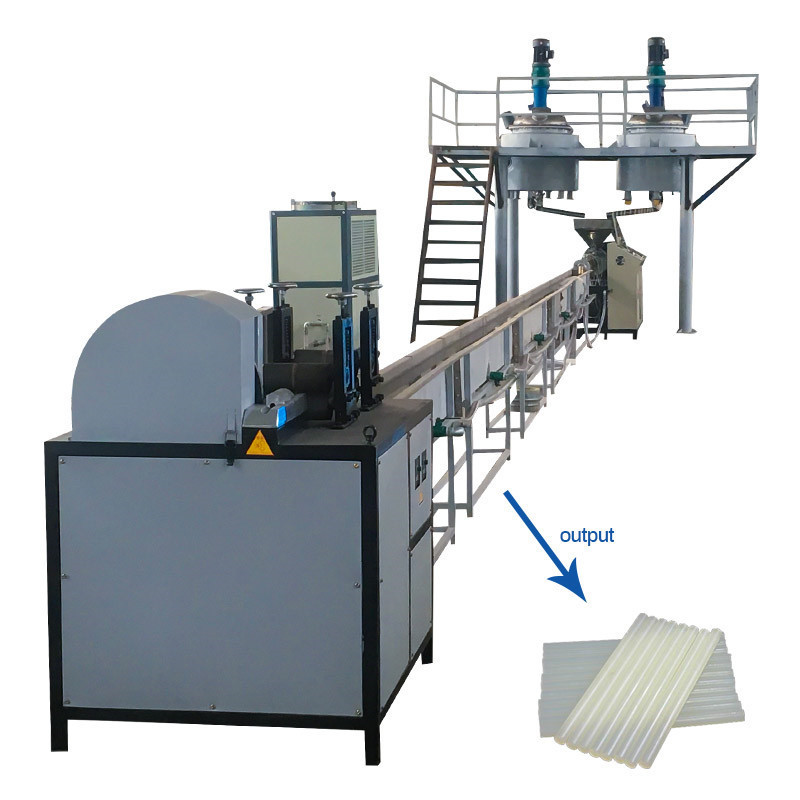

1. Electric heating reactor: 2 sets 2. Extruder machine: 1 set 3. Cooling tank: 14 meters 4. Chiller: 1 set 5. Bar cutting machine: 1 set |
|
|
|
|
||||
Name: Working platform/1 set
Name:200L stainless steel reactor/ 2 sets
Electric heating
Heating power:4KW*6 SETS
Motor power:4KW
Rotation speed:63rpm
Contact material:stainless steel 304
Mixing shaft type:frame
Open type structure reactor
Name: SJ-90 extruding machine/1 set
Screw material: 38CrMoAl nitriding treatment
Reducer: ZLYJ-250 hard surface reducer
Motor power: 4P-22kw
Heating power: ≤25kw, stainless steel insulated heating coil
Screw matching cooling water jacket
Name: Stainless steel cooling flume
Material: Stainless steel 304
Size: 15000*300*250(mm)
Name: 10P Cooling machine/1 set
Compressor:Sanyo
Voltage:3 phase-380/415v-50/60Hz
Name: Bar Cutting machine/1 set
Motor power:2.2kw(2 set)
Rotation Speed:Control by Frequency inverter
variable frequency control (alpha)
Features/C
haracteristic
1. Emergency stop buttons
2. Automatic bar cutting machine
3. Extruder screw speed control
Our Company
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Pretest before delivery
*report of producing processing once a week
There many kinds of machines apply to your material,
If you are interested in our equipment, please do not hesitate to contact with us!
FAQ
1. Are you a factory or trading company?
Yes.
2. Where is your factory? How can I go there?
Our factory is located in Shahe Town,lazhou city, shandong, china 261400
Laizhou Keda Chemical Machinery Co., Ltd
You can fly directly to Qingdao Airport We will pick you up at Qingdao International Airport.
3.Please kindly inform us your requirement:
Please provide product output (kg / h), requirements and uses.
4. How to place order?
Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production ( 20-30 days)→Pay balance→Delivery ( 28-35 days by sea.) →After-sale service.
5.Pay terms
: 30% advance by T/T before produce, 70% balance by T/T or L/C before shippment.
6. How long is the delivery time?
Under normal conditions, products are delivered within 35 days.
7. How can I know the stauts of my order?
We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
8. How long is the warranty?
We can offer one-year warranty for the whole machine.
9. What's your advantages?
(1)Excellent quality control
(2)First-class service
(3)Professional Tech. and R&D team
(4)Quick manufacturing time
(5)Quite competitive price
(6)On time delivery.
10. Will you send us drawing of required machine for checking?
Yes, we’d like to send you our draft drawing of the required machine .
After you place order, we shall send you details drawing and technical parameters.
Then shall put into production once you confirm the production.
11. Is there any quality warranty and after service?
The warranty period of mechanical portion of the equipment shall be a year after you received the equipment, and help buyer, installation and commissioning the equipment, and free training operator.
12. Installation:
E
ngineer will be send to your country, we will offer all the technical guidance.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
referring
|
|
|
Weight
|
referring
|
|
|
Packaging Details
|
The normal package is plywood box(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Size
|
referring
|
|
|
Weight
|
referring
|
|
|
Packaging Details
|
The normal package is plywood box(Size: L*W*H)..If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
