100% new copper wire.
The bevel gear can substantially reduce motor amperage by 25% as well as input power by 33%, and thus become the perfect choice to couple with our new generation of paddlewheel aerators. it will save energy and your electricity bill.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
54 KG
-
Motor:
-
Copper wire 3PH
-
Gearbox:
-
Cast iron 4 spline
-
Float:
-
HDPE
-
Impeller:
-
PP
-
L shelf:
-
304#SS
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QM
-
Model Number:
-
YC-2.0
-
Weight:
-
54 KG
-
Motor:
-
Copper wire 3PH
-
Gearbox:
-
Cast iron 4 spline
-
Float:
-
HDPE
-
Impeller:
-
PP
-
L shelf:
-
304#SS
Product Description
Main Features
Increasing oxygen for the fish and shrimp pond ,also it can used at sewage water pond .
1.High efficiency and saving over 20% electric energy than traditional models.
2.Mechanical seal is available to against oil leak pollution.
3.Built-in protector is available to avoid motor being burnt accidentally.
4.The floating boat produced by us is made of good engineering plastic HDPE. It has great buoyancy and high strength.
5.The impeller is made of New PP. The spoke and vane is shaped with plastic only one time.
6.The flexible gearing is fixed by the stainless wheel bolt.
7.High oxygenation rate: 2.6kgs/h.
8.Easy installation and maintenance.
9.Stainless steel frame is sturdy with no deformation and high durability.
|

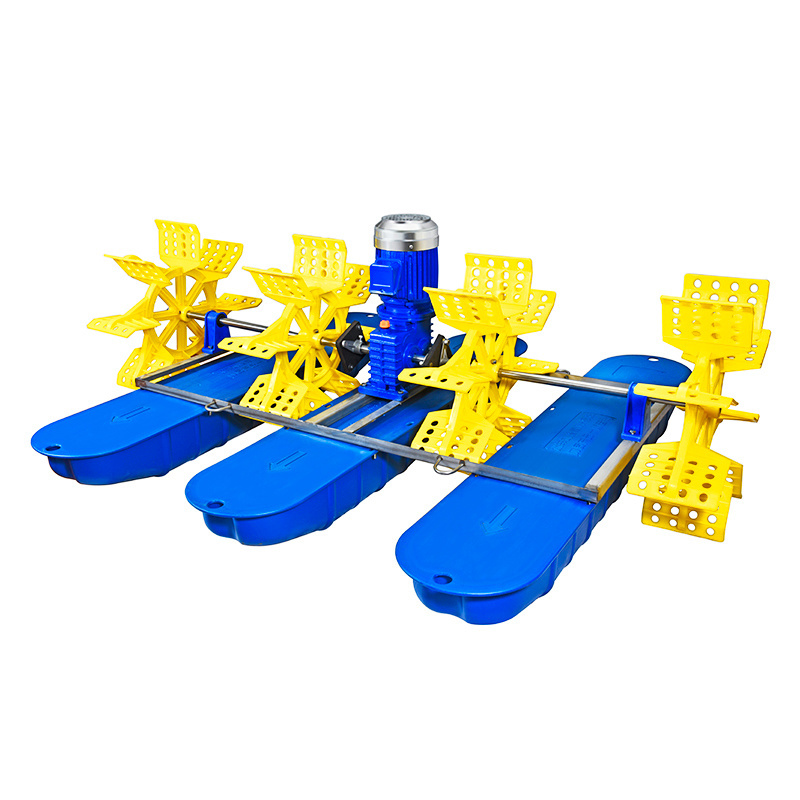

2HP 1.5KW Aquaculture Aerator Paddle Wheel Aerator
|
|
|
|
|||
|
Name
|
Size / weight
|
quantity
|
Material
|
|||
|
Motor and gearbox
|
270mm•290mm•490mm/34KG
|
1PC
|
Cast iron case,
copper wire motor |
|||
|
Split connecting rod
|
1500mm/1.2KG
|
2PC
|
304# SS
|
|||
|
Pipe Impeller shaft
|
800mm/1KG
|
2PC
|
304# SS
|
|||
|
Impeller
|
660mm•660mm•210mm/2.1KG
|
4PC
|
PP
|
|||
|
Float
|
1650mm•260mm•200mm/5.2KG
|
3PC
|
HDPE
|
|||
|
Robber connector
|
220mm•220mm•100mm/1.5KG
|
2PC
|
Cast iron
|
|||
|
Bearing bracket
|
260mm•135mm•120mm/0.26KG
|
2PC
|
Nylon
|
|||
|
Motor seat
|
278mm*260mm*50mm/0.55KG
|
1PC
|
Nylon
|
|||
|
Water shield
|
200mm•290mm•550mm/1.3KG
|
1PC
|
HDPE
|
|||
|
Bolt and nut
|
0.75KG
|
/
|
304#SS
|
|||
Related Products
Detailed Images
Motor and gearbox
Split connecting rod
304#SS
sturdy and without deformation,high durability,durable and never rust.
Pipe Impeller shaft
304#SS
sturdy and without deformation,high durability,durable and never rust.
High speed impeller
PP , Impeller speed:100r/min
Unique one-piece design with for ified structure made of non-recycled polyproylene material which makes the paddle sturdy, tough,impact-resistant, and less prone to fracture.
8pcs-vane paddle design make more frequent splashes and better DO supply.
Float
100% NEW HDPE
Made from virgin HDPE material with excellent ductility.Integral blow molded formation, no water seeping problem.Excellent in withstanding larger impact, corrosion free and weathering.
100% new material with dimensional design for higher stability of the wole machine in operation
Robber connector
Cast iron /304SS
movable joint suitable whatever sea water or fresh water.
Bearing bracket
Nylon
Special synthetic rubber bush of block-beathing could withstand higher temperature and resistance against continuous friction .
Water shield
100% NEW HDPE
Special synthetic rubber bush of block-beathing could withstand higher temperature and resistance against continuous friction .
About US
91.8% Response Rate
FLOATING PUMP AERATOR wit https://tzqingda.en.alibaba.com/productgrouplist-806492358/floating_aerator.html h link
91.8% Response Rate
Our Service
Pre-Sales Service
1.24 hours online,quickly reply
Wechat/Whatsapp/QQ/TradeManager are all feasible.
2.Professionally and patiently introduction.
we can show you the details by picture and video.
Wechat/Whatsapp/QQ/TradeManager are all feasible.
2.Professionally and patiently introduction.
we can show you the details by picture and video.
After-Sales Service
1.Support customization
can design trademark and brand logo as customer request.
2.After delivery ,we will tell you the shipping time and arrival time. Finally, send all original documents by Express For Free.
can design trademark and brand logo as customer request.
2.After delivery ,we will tell you the shipping time and arrival time. Finally, send all original documents by Express For Free.
Packing & Delivery
|
Packing.
|
|
|
|
|||
|
Size
|
0.5CBM
|
|
|
|||
|
Weight
|
80KGS
|
|
|
|||
|
Packaging Details |
New High Efficiency Paddle Wheel Aerator with export standard Wooden Box.
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tight,we will use PE film to packing or according to customer's special request. |
|
|
|||
|
FAQ.
Q1. What's your company's main products? A: Our company is specialized in many kinds of fish pond aerators，including Paddle wheel aerator，Floating aerator, Surge aerator, Wave aerator and Jet aerator. Can be working with DC/AC or solar system motor. Q2. What's your payment term? A: 30% T/T in deposit, the rest against on the copy of B/L. Q3. What's the MOQ for your production? A: The MOQ is 5pcs or depends on your products requirements. Q4. Is it all right to make customer's own brand name? A: OEM is ok. Q5. Where is your loading port? A: Ningbo/Shanghai, China or else port as your request. Q6. Are you a manufactuer or trading company? A: We are a manufactuer. located in Baita village ,daxi town ,Taizhou city, Zhejiang province,china. Ms SHERRY Whatsapp:0086-15557640666 Wehcat&&Mobile：0086-155557640666 QQ：385178649 |
|
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
