Quick Details
-
Voltage:
-
380v/50Hz
-
Power:
-
20 kw-150 kw
-
Dimension(L*W*H):
-
depends on final machine model
-
Weight:
-
5000 kg
-
Marketing Type:
-
New Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw material:
-
Waste Paper,A4 papers, cardboard, books, newspapers
-
Finished Products:
-
Egg Tray Egg Carton Fruit Tray
-
Forming Model:
-
Reciprocating forming, Rotary forming
-
Forming Speed:
-
6s/piece
-
Machine type:
-
Egg Tray Making Machine
Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WANYOU
-
Voltage:
-
380v/50Hz
-
Power:
-
20 kw-150 kw
-
Dimension(L*W*H):
-
depends on final machine model
-
Weight:
-
5000 kg
-
Marketing Type:
-
New Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw material:
-
Waste Paper,A4 papers, cardboard, books, newspapers
-
Finished Products:
-
Egg Tray Egg Carton Fruit Tray
-
Forming Model:
-
Reciprocating forming, Rotary forming
-
Forming Speed:
-
6s/piece
-
Machine type:
-
Egg Tray Making Machine
Waste Paper Egg Tray Making Production Line Pulp Molding Machine For Farm Machinery Small Business
Pulp tray molding machine now is widely used in pulp molding products manufacturing, the raw material is waste paper like Newspaper, Carton, Paper box, Books, Corrugated paper etc.
The raw material goes into the pulping system, mixing with water, become the paper pulp.

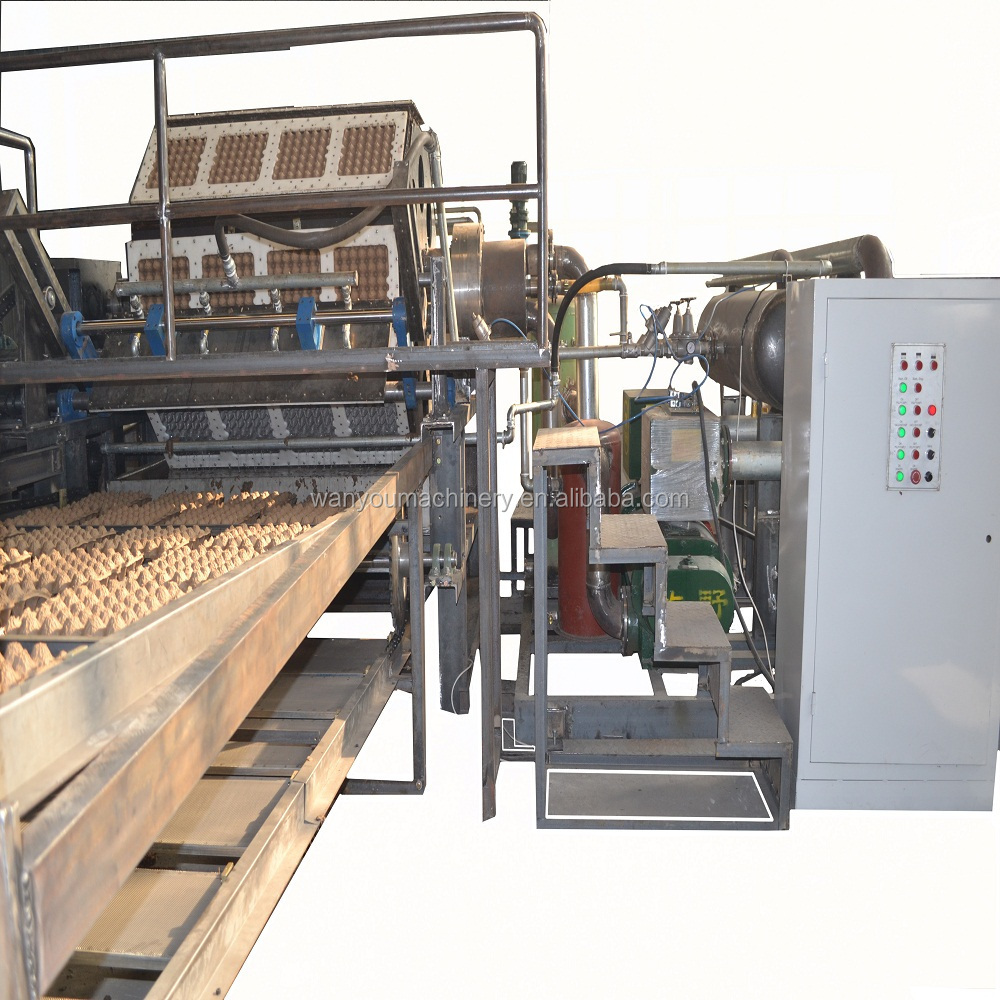

And then the paper pulp will be sent into the egg tray forming machine by a pump, the Pulp tray forming machine will produce the trays using vacuum forming principle.
The pulp tray that coming out from the forming machine is wet, so the forming system needs to be equipped with the drying system.
If the output of pulp tray is less than 1000 pieces per hour, and the weather is good enough, we recommend the manual operation type forming machine and sunshine drying mode, this can reduce the cost of equipment investment.
If the weather is not enough to dry the paper trays easily, or the output of the machine is more than 1000 pcs/h, we recommend the automatic drying system,
This pulp tray drying system using different fuel to dry the egg trays automatically, as for the fuel choices, there is like Natural gas/LNG/LPG, diesel, heavy oil, wood, coal, electric.
After drying, the paper trays can be piled up by automatic stacker, and then the workers can package the trays by plastic bags.
|
Egg Tray Mold Quantity |
1pcs |
2pcs |
3pcs |
4pcs |
|
|
Raw material |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
|
|
Egg tray Capacity |
350pcs/hour |
700pcs/hour |
1000pcs/hour |
1300pcs/hour |
|
|
Net weight per piece (gram) |
70g-75g |
70g-75g |
70g-75g |
70g-75g |
|
|
Waste paper consumption |
0.025ton / hour |
0.06ton / hour |
0.1ton / hour |
0.13ton / hour |
|
|
Water Consumption |
0.05ton / hour |
0.1ton/hour |
0.15ton / hour |
0.2ton / hour |
|
|
Natural Gas Consumption of Dryer |
12cbm/h |
25cbm/h |
35cbm/h |
50cbm/h |
|
|
Worker requirement |
2-3workers |
3-4workers |
4-6workers |
4-6workers |
|
|
Power Requirement |
Without dryer |
20KW |
30KW |
40KW |
45KW |
|
With dryer |
30KW |
45KW |
60KW |
65KW |
|
|
Area of workshop |
Without dryer |
More than100M² |
More than 100 M² |
More than 120 M² |
More than 150 M² |
|
With dryer |
More than200 M² |
More than 240 M² |
More than300M² |
More than 320 M² |
|
|
Container Requirement |
Without dryer |
20ft*1 |
20ft*1 |
40ft*1 |
40ft*1 |
|
With dryer |
40ft*1+20ft*1 |
40ft*2+20ft*1 |
40ft*2+20ft*1 |
40ft*3 |
|
|
Remarks:
|
|||||
Technical specification
Our production line has Fully Automatic and Semi Automatic two types , both have computer control system .
1. What is Semi Automatic type ?
If only order The 1st and 2nd compulsory parts , that's Semi Automatic because you'll have to do the work of drying up egg tray manually;
2. What is Fully Automat type ?
Meaning: the production line includes the Drying system and the whole procedure can be done Automatically .
Of course, the price and the required work space would have big difference from the semi-automatic type.
3. Quality
--- Our machines use UK Technical and part of the components are Germany-made (ex: Ball valve) .
-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .
-- The Egg tray moulds material is Aluminium which can keep the fixed shape much better than that made of rubber material.
--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;
--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .
4 .What capacity per hour do you offer ?
Our machines’ capacity is from 350pcs/hr to 5000pcs/hr.
5.Do your products come with a warranty ?
Yes , we have 2 years warranty according the international practice.
6.Can I customize this kind of machine from your factory?
Yes ,we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.
