Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Landpack
-
Dimension(L*W*H):
-
950*1470*1750mm
-
After Warranty Service 1:
-
Video technical support
-
After Warranty Service 2:
-
Online support
-
After Warranty Service 3:
-
Spare parts
-
After Warranty Service 4:
-
Field maintenance and repair service
-
After-sales Service Provided 1:
-
Free spare parts
-
After-sales Service Provided 2:
-
Field installation, commissioning and training
-
After-sales Service Provided 3:
-
Field maintenance and repair service
-
After-sales Service Provided 4:
-
Video technical support
-
After-sales Service Provided 5:
-
Online support
-
Model:
-
LD-480Y
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing, SLITTING
-
Packaging Type:
-
Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper, Metal
-
Weight (KG):
-
300
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Landpack
-
Dimension(L*W*H):
-
950*1470*1750mm
-
After Warranty Service 1:
-
Video technical support
-
After Warranty Service 2:
-
Online support
-
After Warranty Service 3:
-
Spare parts
-
After Warranty Service 4:
-
Field maintenance and repair service
-
After-sales Service Provided 1:
-
Free spare parts
-
After-sales Service Provided 2:
-
Field installation, commissioning and training
-
After-sales Service Provided 3:
-
Field maintenance and repair service
-
After-sales Service Provided 4:
-
Video technical support
-
After-sales Service Provided 5:
-
Online support
-
Model:
-
LD-480Y
Shampoo Cream Mayonnaise Gel Liquid Sauce Sachet Packaging Packing Machines Machine
Recommend Products
Contact us
Feature
1.
Multi lanes machine
can produce multi lanes bags at same time.
2. Machine main function: automatic split film at right position, measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
2. Machine main function: automatic split film at right position, measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
Specification
|
Model
|
LD-480Y
|
LD-720Y
|
LD-960Y
|
||
|
Track Number
|
4~6 Track
|
4~10 Track
|
4~12 Track
|
||
|
Filling Method
|
1.Piston pump; 2.Peristaltic Pump
|
|
|
||
|
Capacity
|
Max.40 cycle/min
|
|
|
||
|
Sachet Size
|
L:45--120mm; W:35-60mm
|
L:45--120mm; W:35-90mm
|
L:45--120mm; W:35-120mm
|
||
|
Film Width & Thickness
|
Max.480mm;0.07-0.1mm
|
Max.720mm;0.07-0.1mm
|
Max.960mm;0.07-0.1mm
|
||
|
Sealing Type
|
4 sides sealing
|
4 sides sealing
|
4 sides sealing
|
||
|
Cutting Type
|
1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
|
|
|
||
|
Air & Power
|
0.8 mpa 0.8m³/min; 2.8kw
|
0.8 mpa 0.8m³/min; 4.1kw
|
0.8 mpa 0.8m³/min; 5.5kw
|
||
|
DIM & WT
|
950*1470*1750mm; 300kg
|
1153*1654*1750mm; 400kg
|
1415*1686*2130mm; 500kg
|
||
Application

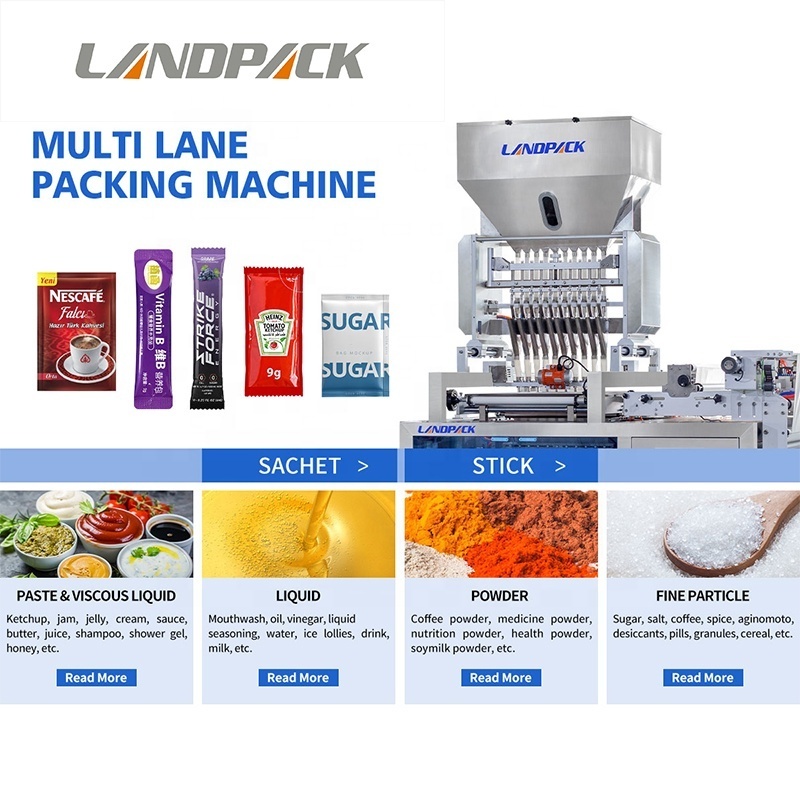

Automatic multilane sachet packing machine
for sauce/ jam/ ketchup etc.(LD-480Y), It is suitable for automatic multilane sachet packing, such as
many kinds of liquid products
, ex
mayonnaise,
gel,
sauce, ketchup, paste, honey, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, jelly, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Multi lane mayonnaise sachet packing machine;
Multi lane
sauce
sachet packing machine;
Multi lane
ketchup
sachet packing machine etc.
Show Details
Buyer's Praise
Pre-sale Service
1. Equipment model selection;
2. According to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.
5. Acceptance of the product;
6. Assist the client in drafting the construction plan;
Medium-sales Services
Landpack have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sales Service
1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of employees to serve you.
3.Engineer Assignment,Lifelong maintain,If your equipment breaks down,we will arrange engineers to repair it.
2. According to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.
5. Acceptance of the product;
6. Assist the client in drafting the construction plan;
Medium-sales Services
Landpack have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sales Service
1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of employees to serve you.
3.Engineer Assignment,Lifelong maintain,If your equipment breaks down,we will arrange engineers to repair it.
4.Online Instruction,We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one troubleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
