Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
South Energy
-
Model Number:
-
SE17
-
Torque:
-
100+
-
Product Name:
-

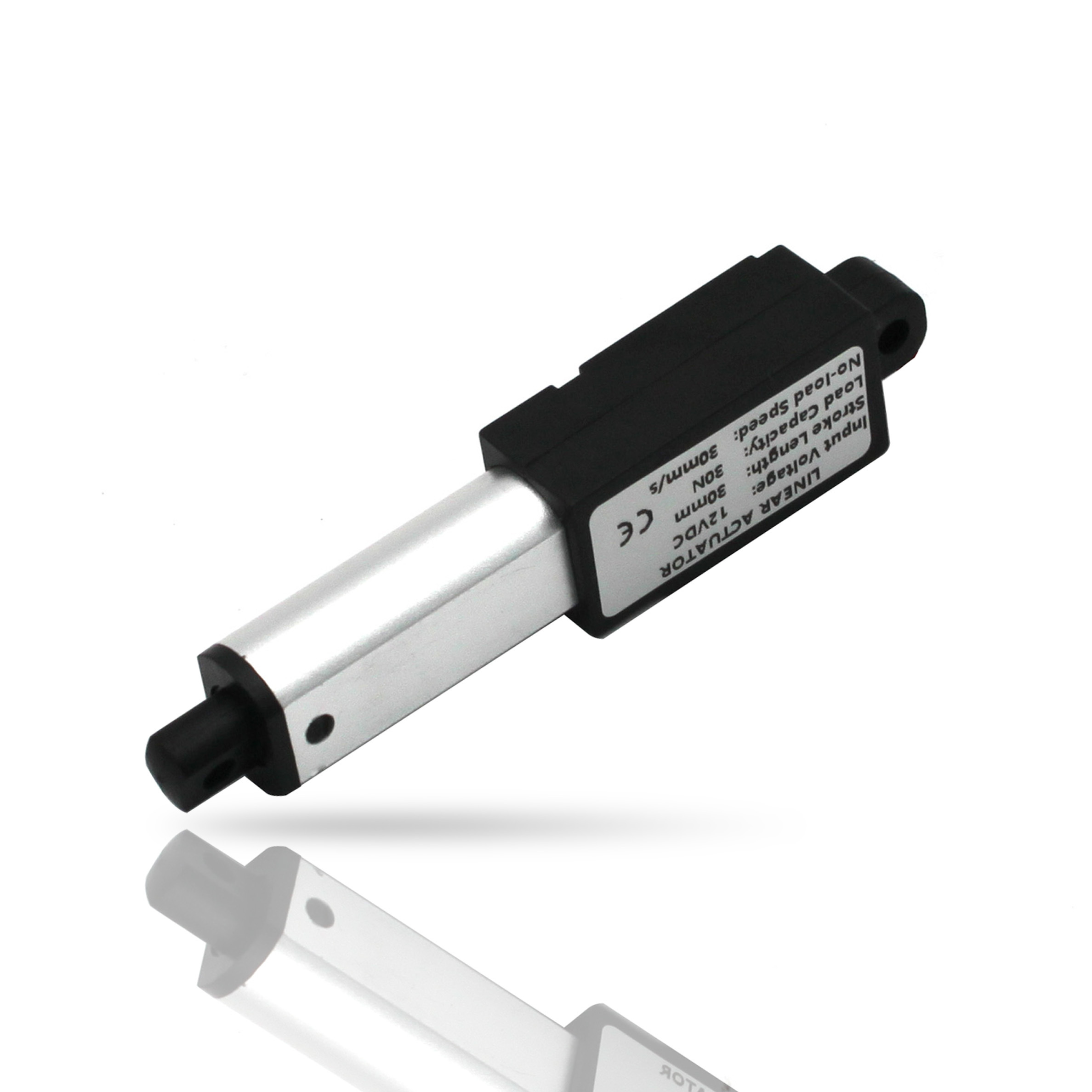

electric linear actuator
-
Input voltage:
-
12VDC/6VDC
-
Max.Load:
-
Push120N
-
Max.Speed:
-
30mm/s
-
Stroke(S):
-
10mm~150mm
-
Minimum installation distance (A):
-
Stroke + 60 mm
-
Duty cycle:
-
10%, stop for 18 minutes after continuously working 2 minutes
-
Limit switches:
-
Built-in electronic limit switches. Not adjustable
-
Operation temperature:
-
+5°C~ +40°C
-
Protection class:
-
IP54
Quick Details
-
Speed(RPM):
-
500rpm
-
Continuous Current(A):
-
0.03A
-
Efficiency:
-
IE 4
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
South Energy
-
Model Number:
-
SE17
-
Torque:
-
100+
-
Product Name:
-
electric linear actuator
-
Input voltage:
-
12VDC/6VDC
-
Max.Load:
-
Push120N
-
Max.Speed:
-
30mm/s
-
Stroke(S):
-
10mm~150mm
-
Minimum installation distance (A):
-
Stroke + 60 mm
-
Duty cycle:
-
10%, stop for 18 minutes after continuously working 2 minutes
-
Limit switches:
-
Built-in electronic limit switches. Not adjustable
-
Operation temperature:
-
+5°C~ +40°C
-
Protection class:
-
IP54
Products Description
|
Usage
|
Boat, Car, Electric Bicycle, Fan, Home Appliance
|
|
Certification
|
CCC, CE, ROHS, VDE
|
|
Type
|
linear actuator
|
|
Input voltage
|
12VDC/6VDC
|
|
Max.Load
|
Push200N
|
|
Max.Speed
|
30mm/s
|
|
Stroke(S)
|
10mm~150mm
|
|
Minimum installation distance (A)
|
Stroke + 60 mm
|
|
Duty cycle
|
10%, stop for 18 minutes after continuously working 2 minutes
|
|
Limit switches
|
Built-in electronic limit switches. Not adjustable
|
|
Operation temperature
|
+5°C~ +40°C
|
|
Protection class
|
IP54
|
|
Rear connector
|
Norotation
|
|
Color
|
Black
|
