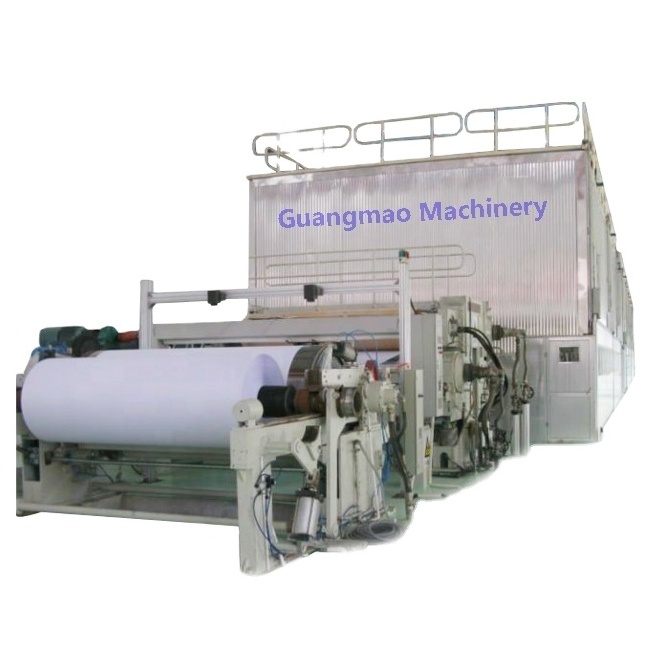

Waste paper wood pulp raw materials a4 copy paper making manufacturing machine, paper pressing pulper machine

I.Buying Guide:

To know well about your requirement and avoid misunderstanding, please check the following information of A4 copy paper machine and feedback us your idea, we can make accurate quotation complete according to your requirement:
1. What kind of raw material you want to use ?
(1) 100% waste paper;
(2) Waste paper mixed virgin pulp;
(3) Wheat straw, rice straw, wood, sugarcane bagasse;
2. Production capacity: ______ tons/day( 24hours );
3. Max width: ______mm;
4. What kind of finished product you want?
(1) Paper roll;
(2) Paper sheet ( It will be better to supply exact the size);
After you confirm the above information, we will make exact design and quotation for you !

II.Brief Introduction:

This production line can use waste paper , pure wood pulp , wheat straw , rice straw , sugarcane bagasse ,etc as material to make high quality A4 copy paper , printing paper , culture paper , exercise book paper , photocopy paper .Finished products can be paper jumbo roll, paper sheet ( A3, A4, B5 etc which depends on clients requirement ). This machine include the following section:
1. Pulp making section;
2. Headbox and wire section;
3. Press section;
4. Paper cutting and packaging section;
5. Boiler section;
6. Hot steam recycling system;
7. Spare parts.

III.Technical Parameters:

1, Raw Material : Waste paper,pure wood pulp
2, Output Paper : A0-A4 Copy paper,newsprinting paper,writing paper,exercise book paper ,etc
3, Out Put Paper Wight : 60-80g/m2
4, Capacity : 35 T/D;
5, Net Paper Width : 2400mm;
6, Copper cylinder width: 2350mm;
7, Drive Section : speed adjustment in AC frequency & processing transmission
8, Work Speed : 120-150m/min
9, Designed Frame : Square frame, second self.

Raw Materials----> Paper Pulp ----> Jumbo Roll Paper----> A4 Paper Sheet/Notebook

1.Pulp Making Section:

---waste paper wood pulp raw materials a4 copy paper making machine, paper pressing pulper machine

2.Headbox & Wire Section: (machines conver pulp into wet paper sheet )

(1) Fourdrinier table length is usually between 13m and 24m.(decided by working speed).
(2) It can select open-type headbox when the working speed is less than the 250m/min;
(3 )Select the air-cushioned headbox when the working speed is more than 250m/min.
(4)The dewatering components are usually uses the stainless steel vacuum suction box . Full ceramic girder or inserted ceramic girder.

3. Press Section:

(1) The press consists of a vacuum suction device , four rollers twin press and one main press .
(2) Four rollers twin press specially suit for making a4 copy paper, newsprinting paper,culture paper and writing paper.
(3 )The main press can improve press nip width dewatering wet sheet strength and finished paper density.

4. Drying Section: (machines convert wet paper sheet into dry paper sheet)

(1) It usually uses several dryer cylinder groups with the diameter of Φ1500mm or Φ1800mm . drive: closed gear box each dryer group single drive or single gear box each dryer group multi-points drive.
(2) When wet paper enters into dryer section, it can select different leading way and paper orientation according to PM working speed, production basis weight and pulp impurity .
(3) The wetting size can increase about 180% finished paper ring crush index.

Quality Standard:

A . All machine parts is designed and manufactured according to the following paper industry standard:

Features & Advantages

A. Simple structure in linear type ,easy in installation and maintation.
B. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
C. High pressure double crank to control the die opening and closing.
D. Running in a high automatization and intellectualization,no pollution
E. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

(1) Packaging:

Products will be packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export wooden package , waterproof film, straw rope, carton box ,etc, which will ensure the intactness of the products.

(2) Delivery:

1. sea transportation is from qingdao seaport or other ports.
2. the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
