Quick Details
-
Application:
-
AC / Motor, AC Motor
-
Film Capacitor:
-
Polypropylene Film Capacitor
-
Capacitance:
-
2-150UF
-
Tolerance:
-
±5%
-
Rated Voltage:
-
110V,250V,370V,400V,440V,450V,480V
-
Operating Temperature:
-
-40/85/21
-
Description:
-
CAPACITOR
-
Voltage - Rated:
-
370/450V
-
Applications:
-
motor
-
Temperature Coefficient:
-
40/85/21
-
Capacitance Range:
-
2-150UF
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Huizhong
-
Model Number:
-
CBB65
-
Application:
-
AC / Motor, AC Motor
-
Film Capacitor:
-
Polypropylene Film Capacitor
-
Capacitance:
-
2-150UF
-
Tolerance:
-
±5%
-
Rated Voltage:
-
110V,250V,370V,400V,440V,450V,480V
-
Operating Temperature:
-
-40/85/21
-
Description:
-
CAPACITOR
-
Voltage - Rated:
-
370/450V
-
Applications:
-
motor
-
Temperature Coefficient:
-
40/85/21
-
Capacitance Range:
-
2-150UF

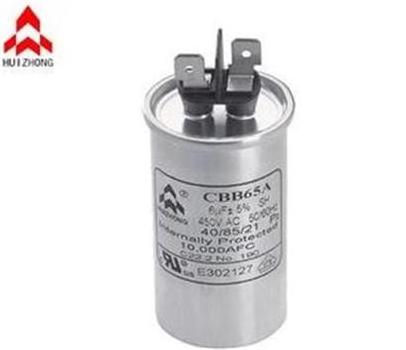

CBB65 RUN CAPACITORS
Main Feature:
Low dissipation factor small inherent temperature rise, excellent
self-healing stability safety and high voltage withstand etc.
Applications:
Run starting in household electric appliances air conditioner,
refrigerator which demand 50/60Hz AC power supply Have
safe protection constrution.
Specifications
|
Climatic category |
Rate voltage |
Testing voltage T-T |
Testing voltage T-C |
Capacitance tolerance |
Dissipation factor |
|
-25/+70/21 -40/+85/21 |
370/440VAC |
1.75Un/5S (2Un/5S) |
2000V.AC/5s |
±5% (±10%) |
≤0.002 (100Hz) |
Capacitance range:2MFD-100MFD,15+5MFD-80+7.5MFD
Dimension(mm):D: Φ40-Φ60,H:60-150
Reference standard:UL810,IEC252,EN60252,GB3667
Certification:UL Construction,UL 10,000AFC,TUV,VDE
Safety grade:P1,P2.
