Quick Details
-
Production Capacity:
-
High
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Tian Jun
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
5800*4700*2900MM
-
Weight:
-
5500(kg
-
After-sales Service Provided:
-
Online support
-
Max. Blade Diameter:
-
300-450mm
-
Certification:
-
ce
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
21KW
-
Cutting thickness (max):
-
Other
-
Production Capacity:
-
High
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Tian Jun
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
5800*4700*2900MM
-
Weight:
-
5500(kg
-
After-sales Service Provided:
-
Online support
-
Max. Blade Diameter:
-
300-450mm
-
Certification:
-
ce
Product Description

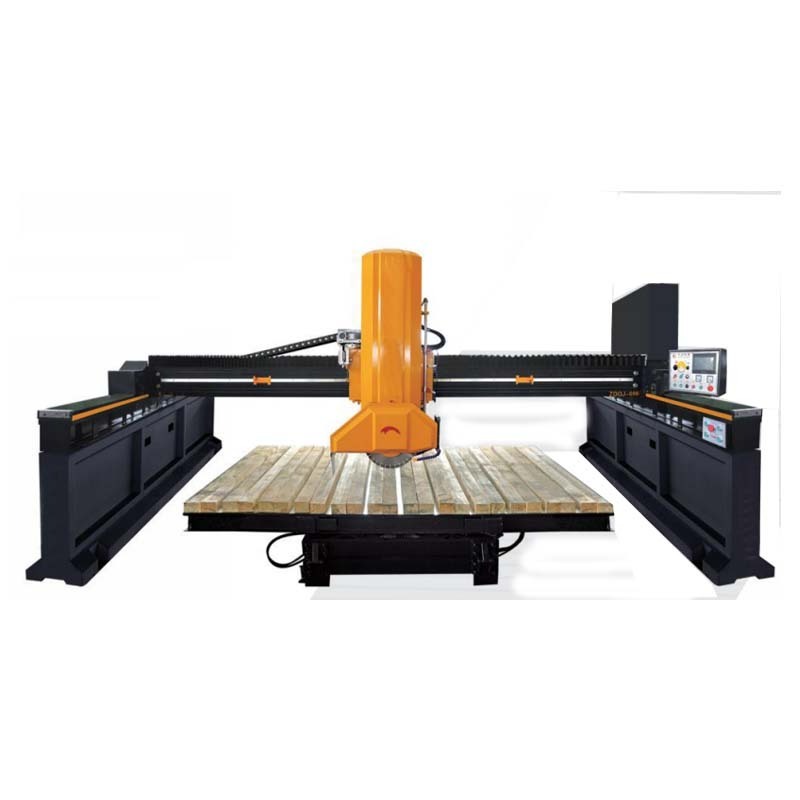

Bridge Cutting Machine is suitable for cutting marble(granite/cultured marble). It is widely used to cutting stone. Main parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy–operating to suit specially cutting granite and marble with high value and big size.
Technical Data:
| Model | Unit | TJXD-450 | TJXD-600 | TJXD-700 |
| Blade diameter | mm | 300-450 | 350-600 | 350-700 |
| Max Procesing Size (L*W*H) | mm | 3200*2000*100 | 3200*2000*180 | 3200*2000*230 |
| Dimension of worktable (L*W) | mm | 3200*2000 | 3200*2000 | 3200*2000 |
| Worktable tilting degree | ° | 0-85° | 0-85° | 0-85° |
| Worktable rotating degree | ° | 90°/360° | 90°/360° | 90°/360° |
| Main motor | kw | 15 | 18.5 | 18.5 |
| Water consumption | m2/h | 4 | 4 | 4 |
| Outline dimension (L*W*H) | mm | 5800*4800*2600 | 5800*4800*2900 | 5800*4800*3100 |
| Gross weight | kg | 5000 | 5500 | 6000 |
