Quick Details
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
920*740*1500mm
-
Power (kW):
-
7.5
-
Weight (KG):
-
250 KG
-
Product Name:
-
PU polyurethane foam spray insulation machine with spay gun
-
Color:
-
Blue, green or OEM
-
Driven mode:
-
Pneumatic
-
Maximum output pressure:
-
11Mpa
-
Raw output:
-
2-12kg/min
-
Air source:
-
0.5-0.8Mpa ≥0.9m3/min
-
Application:
-
Polyurethane insulation spraying and injection
-
Marketing Type:
-
New Product 2020
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Machine Type:
-
Pneumatic polyurethane spray foam machine
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
920*740*1500mm
-
Power (kW):
-
7.5
-
Weight (KG):
-
250 KG
-
Product Name:
-
PU polyurethane foam spray insulation machine with spay gun
-
Color:
-
Blue, green or OEM
-
Driven mode:
-
Pneumatic
-
Maximum output pressure:
-
11Mpa
-
Raw output:
-
2-12kg/min
-
Air source:
-
0.5-0.8Mpa ≥0.9m3/min
-
Application:
-
Polyurethane insulation spraying and injection
-
Marketing Type:
-
New Product 2020
Product Description

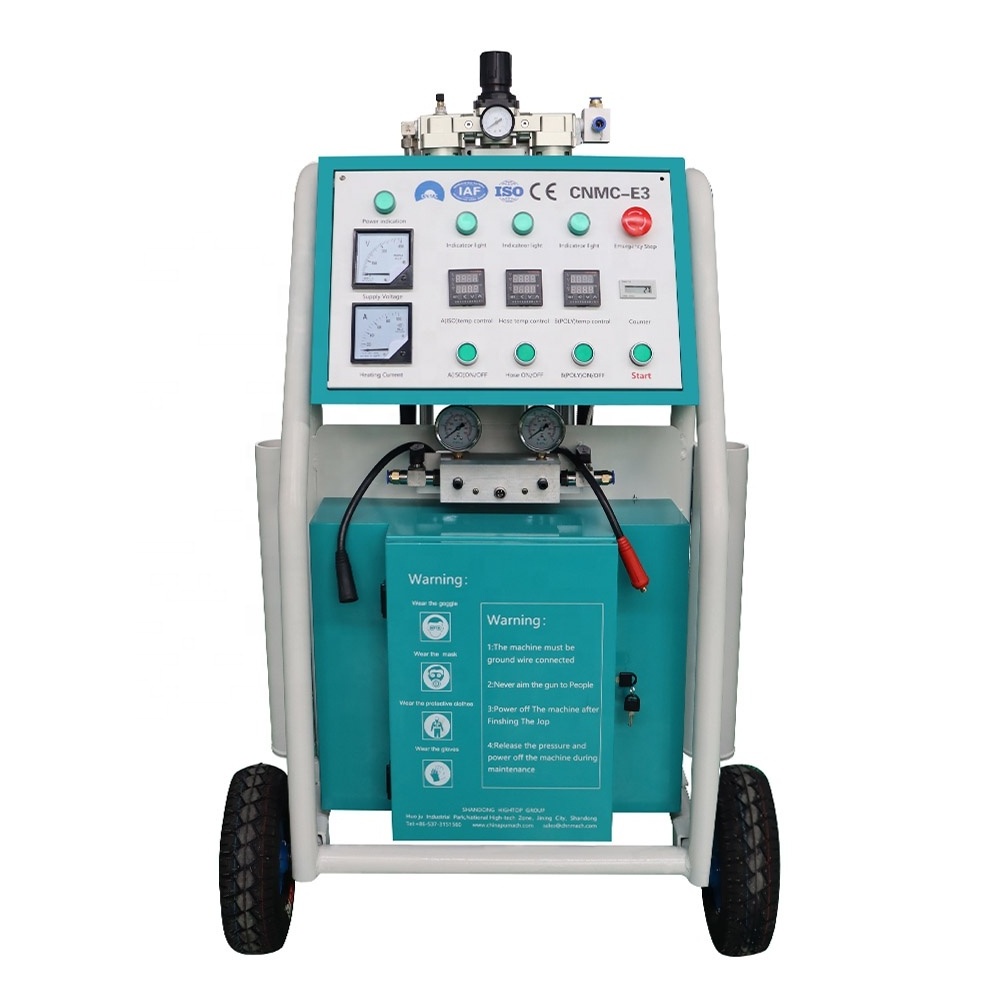

PU polyurethane foam spray insulation machine with spay gun
PU polyurethane foam spray insulation machine with spay gun
can be used for various construction environment with spraying a variety of two-component spray materials and has been widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal, roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and etc.
The new model CNMC-E3 air driven proportioning unit is an advanced and compact design. It is specially aimed at the applications of polyurethane foam in place. Its particular configuration facilities easy access to all its components, simplifies the control functions and significantly reduces the maintenance work.
Features:
1. The use of a
large power cylinder
makes the spraying
more powerful and the atomization effect better
.
2. The heated hose of the new Upgrade machine CNMC-E3 heats up faster. In cold winter, the machine can pre heat the foam chemicals rapidly to help save time and improve spraying effect and foaming effect. Equipped with a reflux valve, it is very convenient for the operator to cycle the chemicals.
3. The machine contains the electric leakage protector to prevent machine leakage and human electric shock, and improve the safety performance of the machine.
4. Adding Voltmeter and Ammeter , so the voltage and current conditions inside the machine can be detected.
5. Appearance design conforms to the principle of artificial mechanics, moving the machine is easier.
6. The heated hose is with internal heating and low voltage current , to protect the operator's personal safety to the greatest extent.
7. The quick opening door is installed ,Machine maintenance and repair and inspection will be more convenient
2. The heated hose of the new Upgrade machine CNMC-E3 heats up faster. In cold winter, the machine can pre heat the foam chemicals rapidly to help save time and improve spraying effect and foaming effect. Equipped with a reflux valve, it is very convenient for the operator to cycle the chemicals.
3. The machine contains the electric leakage protector to prevent machine leakage and human electric shock, and improve the safety performance of the machine.
4. Adding Voltmeter and Ammeter , so the voltage and current conditions inside the machine can be detected.
5. Appearance design conforms to the principle of artificial mechanics, moving the machine is easier.
6. The heated hose is with internal heating and low voltage current , to protect the operator's personal safety to the greatest extent.
7. The quick opening door is installed ,Machine maintenance and repair and inspection will be more convenient
Specification
|
Model
|
CNMC-E3 & CNMC-R
|
|
Power source
|
220V/110V/380V 50/60HZ
|
|
Heating power
|
7.5KW
|
|
Driven mode
|
pneumatic
|
|
Air source
|
0.5~0.8 MPa ≥0.9m³/min
|
|
Raw output
|
2~12 kg/min
|
|
Maximum output pressure
|
11Mpa
|
|
AB material output ratio
|
1:1
|
|
Max hose support
|
90m
|
|
Complete set list:
|
|
|
|
Main machine
|
1 set
|
|
|
Spray gun
|
1 set
|
|
|
Feeding pump
|
2pcs
|
|
|
Heated hose
|
15meters
|
|
|
Spare parts tool box
|
1 set
|
|
|
Operation manual and video
|
1 copy
|
|
Packing & Delivery
One set polyurethane spray foam machine is packed in one wooden case for shipping.
