Quick Details
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
Depends
-
Control Software:
-
RdWorks V8/Laser Cut6.1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LINTIANZHIYUAN
-
Weight (KG):
-
500 KG
-
Working area:
-
1600*1000mm
-
Laser power:
-
60W/80W/90W/100W/130W/150W
-
Laser type:
-
CO2
-
Life of laser tube:
-
8000-10000 hours
-
Laser tube cooling:
-
Water cooling
-
Design software:
-
CorelDraw,AutoCAD,Photoshop,etc
-
Picture format support:
-
PLT,DXF,BMP,AI,TIF,etc
-
Communication interface:
-
USB&PC
-
Working table:
-
Honeycomb/Blade table
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-700mm/s
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
Depends
-
Control Software:
-
RdWorks V8/Laser Cut6.1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LINTIANZHIYUAN
-
Weight (KG):
-
500 KG
-
Working area:
-
1600*1000mm
-
Laser power:
-
60W/80W/90W/100W/130W/150W
-
Laser type:
-
CO2
-
Life of laser tube:
-
8000-10000 hours
-
Laser tube cooling:
-
Water cooling
-
Design software:
-
CorelDraw,AutoCAD,Photoshop,etc
-
Picture format support:
-
PLT,DXF,BMP,AI,TIF,etc
-
Communication interface:
-
USB&PC
-
Working table:
-
Honeycomb/Blade table
Product Description
Specification
|
Name
|

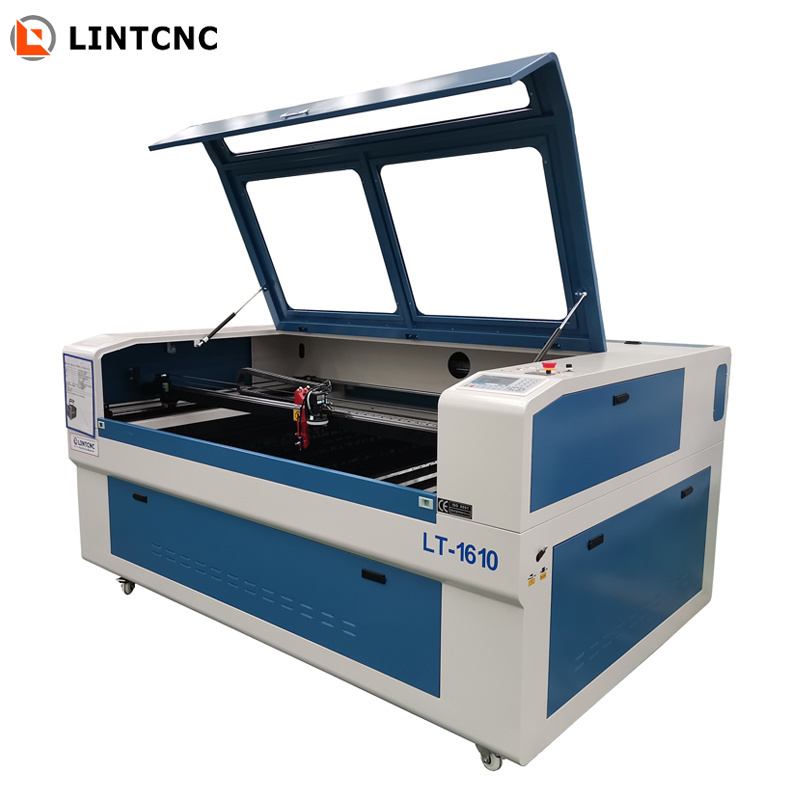

Co2 laser cutting engraving machine
|
|
Model
|
LT-1325
|
|
Other model
|
LT-6040/LT-6090/LT-1290/LT-1390/LT-1410/LT-1610/LT-1530
|
|
Working area
|
1600x1000mm/1300x2500mm
|
|
Table
|
Blade table/honeycomb table
|
|
Control system
|
Ruida RDC6445G control system
|
|
Software
|
RDWorksV8 software
|
|
Laser power
|
Reci W2(90w-100w),rated power 90w,Max.power 100w
|
|
Laser tube cooling
|
Water cooling CW3000 water chiller
|
|
Lifetime of laser tube
|
10000 hours
|
|
Motors&drivers
|
Leadshine stepper motors&stepper drivers
|
|
Transmission
|
Hiwin linear square guide rail and Fulong belt
|
|
Engraving speed
|
0-1000mm/s
|
|
Cutting speed
|
0-700mm/s
|
|
Compatible software
|
CorelDraw/AutoCAD
|
|
Picture format
|
PLT,DXF,BMP
|
|
CUTTING ABILITY OF DIFFERENT LASER POWER
|
|
|
|
|||
|
|
ACRYLIC(mm)
|
WOOD(mm)
|
MDF(mm)
|
|||
|
60w
|
8
|
5
|
4
|
|||
|
80w/90w
|
12
|
8
|
7
|
|||
|
100w
|
15
|
10
|
9
|
|||
|
130w
|
20
|
15
|
13
|
|||
|
150w
|
30
|
20
|
20
|
|||
|
APPLICATION
|
|
|
|
|
||||
|
Application materials
|
|
|
Cut
|
Enrgrave
|
||||
|
Acrylic/plexiglass/PMMA/Perspex/Organic board/Double color plate
|
|
|
Yes
|
Yes
|
||||
|
Wood/Plywood/Veneer/MDF/Balsa wood/Bamboo/Oak
|
|
|
Yes
|
Yes
|
||||
|
Plastic/PP/PET/PC/PS/PES/PA/Plastic film/foil
|
|
|
Yes
|
Yes
|
||||
|
Leather/PU/Shoe Materials/Synthetic leather/Genuine leather
|
|
|
Yes
|
Yes
|
||||
|
Fabric/Cloth/Textile
|
|
|
Yes
|
Yes
|
||||
|
Carpet/Mat/Rug/Wool felt
|
|
|
Yes
|
Yes
|
||||
|
Paper/Cardboard/chipboard/Press board
|
|
|
Yes
|
Yes
|
||||
|
Foam&Filter/Mats polyester(PES)/Polyethylene(PE)
|
|
|
Yes
|
Yes
|
||||
|
Stone/Marble/Ceramic/Granite/Natural stone/Pebble stone/Slate
|
|
|
|
Yes
|
||||
|
Rubber stamps/Natural rubber
|
|
|
Yes
|
Yes
|
||||
|
Glass/Pressed glass/Float glass/Crystal glass/Mirror glass
|
|
|
|
Yes
|
||||
