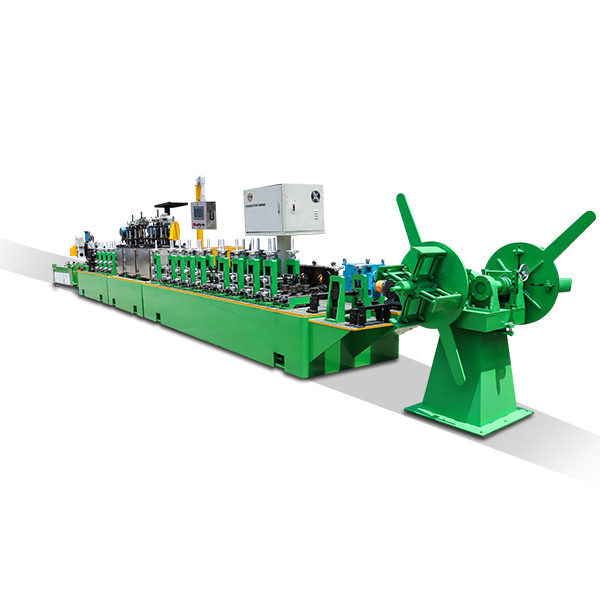

China factory supply tube mill line pipe roll forming machine

China factory supply tube mill line pipe roll forming machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $16000

≥3 Sets

US $15600

≥5 Sets

US $15300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Pipe material:: stainless/carbon/galvanized steel

round pipe thickness:: 0.3mm-1.5mm

square pipe thickness:: 0.3mm-1.0mm

Pipe shape:: round,square,oval,rectagular

Pipe application:: Furniture,Construction,Water pipes

Pipe Length:: 3-6meters

Pipe diameter:: 8-50.8mm

Operators needed:: 1 person operates: 2 tube mills

Major motor brand:: SIEMENS BRAND

Supply by:: Electricity and argon gas

Certification:: ISO9001

Quick Details

Pipe Material:: Stainless steel

Place of Origin:: Guangdong, China

After-sales Service Provided:: Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Pipe material:: stainless/carbon/galvanized steel

round pipe thickness:: 0.3mm-1.5mm

square pipe thickness:: 0.3mm-1.0mm

Pipe shape:: round,square,oval,rectagular

Pipe application:: Furniture,Construction,Water pipes

Pipe Length:: 3-6meters

Pipe diameter:: 8-50.8mm

Operators needed:: 1 person operates: 2 tube mills

Major motor brand:: SIEMENS BRAND

Supply by:: Electricity and argon gas

Certification:: ISO9001

PRODUCT ADVANTAGES

(1)Fast speed and Strong Stability, Double Motors Designs, Brand in Siemens;

(2)High precision;

(3)Digital display device and Tooling sets adjusting synchronizely (it is easy to change and adjust roll sets, will take roughly one hour to change full set roll sets );

(4)High degree of automation, PLC with touch screen control, Electric current induction type full automatic grinding section;

(5)Durable, long service life.


Type	Pipe Diameter (mm)	Pipe Thickness (mm)	Capacity (m/min)	Weight (T)	Installation *(LW m)**	Voltage	Application
SZG40	6-38.1	0.2-1.2	1-20	4.3t	20*1.0m	220V/380V/ 415V/440V	Building construction, furniture,hand, railing,fence, household, Curtain pipe etc
ZG40	8-50.8	0.2-1.5	1-15	4.8t	21.5*1.1m
BB ZG40	8-50.8	0.2-2.0	1- 15	5.3t	2 1.5 *1. 1 m
B ZG40	12.7-63.5	0.3-2.0	1- 10	5.5t	2 1.5 *1. 1 m
ZG50	25.4-76.2	0.4-2.5	1-7	7.5t	2 4 *1. 2 m
ZG60	38.1-114	0.5-3.0	1- 5	9t	2 6 *1. 4 m

Passed logo printing device ,it mainly printing logo to promote the brand ,by roller set ectrusion was carried out the steel coil, the holder materials by HT200,the stand materials by 40 Cr.

Depend on your need, we can offer different tig welding, such as argon welding ,ultrasonic ,plasma welding .

Semi Automatic Grinding Heads(controlling grinding head to move up and down by motor) or PLC control full automatic grinding section.

Turkey head will make the pipe more straight ,there will be not deformation. Turkey head can change the shape of pipes, like square ,rectangle pipe

Production pipes are more stable

More powerful to make thick tubes

Easy to change pipe moulds

Production pipe stability

It can make thin tubes

Change pipe moulds slowly

It takes 1 hour to change the pipe mould.

It takes 2-3 hours to change the pipe mould.
