Quick Details
-
Brand Name:
-
DIMEC
-
Dimension(L*W*H):
-
2610*1550*770
-
Weight:
-
1351 KG
-
Product name:
-
Jaw Crusher Machine
-
Keyword:
-
Fine Stone Crusher
-
Stock bin volume (m³):
-
0.2
-
Feed port size (mm):
-
420*200
-
Max. Feeding size (mm):
-
400*150
-
Jaw plate material:
-
manganese steel 13
-
Outlet adjustment range (mm):
-
10-45
-
Driving Mode:
-
Hydraulic motor
-
Track Chassis:
-
180*72*37
-
Fuel consumption:
-
1L/h
Quick Details
-
Application:
-
Mining Crusher Equipment
-
Capacity(t/h):
-
1.5-2.5
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DIMEC
-
Dimension(L*W*H):
-
2610*1550*770
-
Weight:
-
1351 KG
-
Product name:
-
Jaw Crusher Machine
-
Keyword:
-
Fine Stone Crusher
-
Stock bin volume (m³):
-
0.2
-
Feed port size (mm):
-
420*200
-
Max. Feeding size (mm):
-
400*150
-
Jaw plate material:
-
manganese steel 13
-
Outlet adjustment range (mm):
-
10-45
-
Driving Mode:
-
Hydraulic motor
-
Track Chassis:
-
180*72*37
-
Fuel consumption:
-
1L/h
Product Description

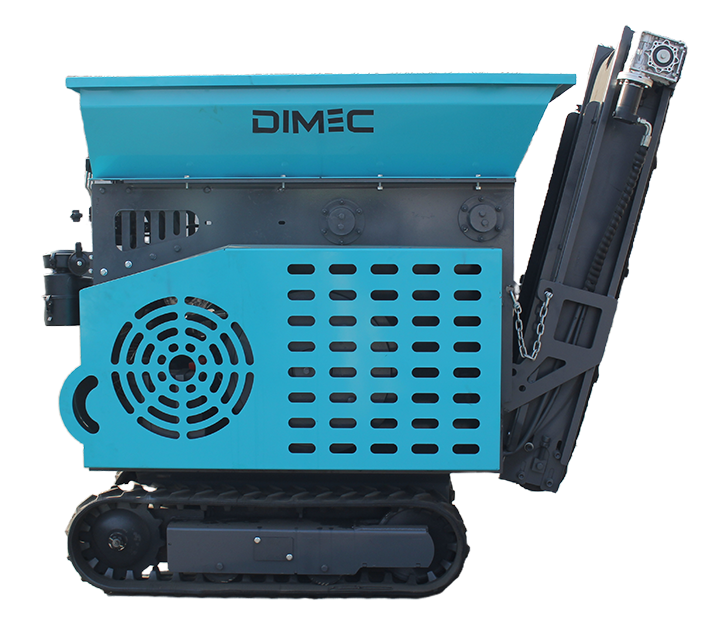

PME-KC03 Jaw Crusher Machine
The Mini mobile crusher is the perfect machine for all small to moderate crushing projects where construction and demolition “waste” materials can be recycled on-site, providing a great solution for builders, landscape gardening, recycling, demolition, infrastructure, relief aid and medium sized aggregate crushing applications.
The Mini mobile crusher is simple, robust and efficient whilst reducing the impact on the environment and also saving you money.
Why choose DIMEC Concrete Crushing?
* You don't have to hire a skip
* You don't have to purchase new aggregate
* Lower transportation costs for delivering and moving materials
* Experienced and fully trained machine operator
* Environmentally friendly alternative as demolition waste won't go to landfill
* You don't have to purchase new aggregate
* Lower transportation costs for delivering and moving materials
* Experienced and fully trained machine operator
* Environmentally friendly alternative as demolition waste won't go to landfill
Product Paramenters
|
Feeding Equipment
|
Stock bin volume (m³)
|
0.2
|
|
Crushing equipment
|
Model
|
Jaw Crusher
|
|
|
Feed port size （mm）
|
420*200
|
|
|
Max. Feeding size （mm）
|
400*150
|
|
|
Jaw plate material
|
manganese steel 13
|
|
|
Outlet adjustment range （mm）
|
10-45
|
|
|
Capacity（Ton/h）
|
1.5-2.5
|
|
|
Driving Mode
|
Hydraulic motor
|
|
Discharging Equipment
|
Model
|
NMRV050
|
|
|
Stacking height
|
800mm
|
|
Engine
|
Model
|
KOOP KD1100F 9.5kw
|
|
|
Fuel consumption
|
1L/h
|
|
Walking system
|
Track Chassis
|
180*72*37
|
|
Overall dimensions
|
Weight
|
1351kg
|
|
|
Working size（LxWxH）
|
2610*1550*770
|
|
|
Transportation size （LxWxH）
|
1900*1750*770
|
The smallest particle state: about 10mm in size
The largest particle state: about 40mm in size
