Quick Details
-
Voltage:
-
380v/Customize
-
Dimension(L*W*H):
-
4950x2850x5750mm
-
Power (kW):
-
20.7kw
-
Weight (KG):
-
9500 KG
-
Product Name:
-

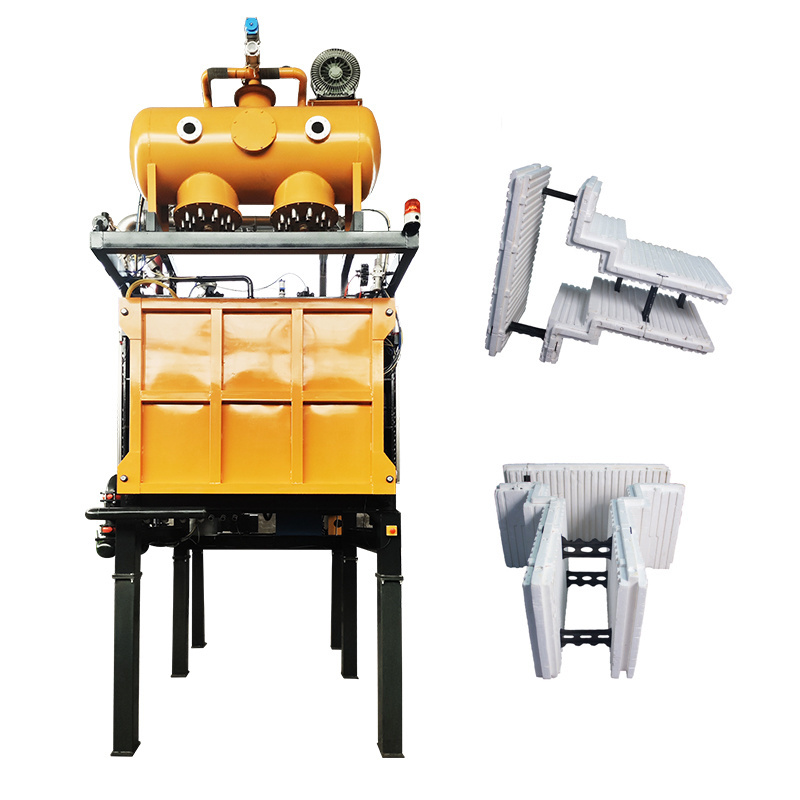

Vacuum EPS polystyrene ICF foam block bricks molding machine
-
Weight:
-
9500KG
-
Standard Mould Size:
-
1900x1500mm
-
Compressed Air Consumption:
-
1.8kg/cycle
-
Vacuum Pump Air Suction Volume:
-
4.66cbm/min
-
Discharge Inlet:
-
DN150mm
-
Steam Inlet:
-
DN100mm
-
Cooling Water Inlet:
-
DN80mm
-
Production Cycle:
-
60-130 sec
-
Finished Product Size:
-
1700 x 1300 x 380mm
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhenyou
-
Machine Type:
-
EPS foam moulding
-
Voltage:
-
380v/Customize
-
Dimension(L*W*H):
-
4950x2850x5750mm
-
Power (kW):
-
20.7kw
-
Weight (KG):
-
9500 KG
-
Product Name:
-
Vacuum EPS polystyrene ICF foam block bricks molding machine
-
Weight:
-
9500KG
-
Standard Mould Size:
-
1900x1500mm
-
Compressed Air Consumption:
-
1.8kg/cycle
-
Vacuum Pump Air Suction Volume:
-
4.66cbm/min
-
Discharge Inlet:
-
DN150mm
-
Steam Inlet:
-
DN100mm
-
Cooling Water Inlet:
-
DN80mm
-
Production Cycle:
-
60-130 sec
-
Finished Product Size:
-
1700 x 1300 x 380mm
ICF- insulated concrete foam block forming machine, ICF compound insulated concrete form machine with aluminum mold
Certifications
Related Machines
Product Description
|
* EPS SHAPE MOLDING MACHINE WITH ROBOTIC ARM CAN BE CUSTOMIZED.
|
