Quick Details
-
Productivity:
-
Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HR
-
Weight:
-
35000 kg
-
Dimension(L*W*H):
-
12480X2550X4000
-
Marketing Type:
-
2023
-
Model:
-
50M
-
Hopper Capacity:
-
750L
-
Max. aggregate diameter:
-
40mm
-
Model Number:
-
50M
-
MOQ:
-
1 Set
-
Concrete pump type:
-
Hydraulic Open type system
-
Max Theoretical Concrete Output:
-
110 m3/h
-
Main oil pump:
-
10 Mps
-
After-sales Service Provided:
-
Video Technical Support Online Support
-
Color:
-
Customizable
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
50M
-
Max. horizontal conveying distance:
-
50MM
-
Productivity:
-
Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HR
-
Weight:
-
35000 kg
-
Dimension(L*W*H):
-
12480X2550X4000
-
Marketing Type:
-
2023
-
Model:
-
50M
-
Hopper Capacity:
-
750L
-
Max. aggregate diameter:
-
40mm
-
Model Number:
-
50M
-
MOQ:
-
1 Set
-
Concrete pump type:
-
Hydraulic Open type system
-
Max Theoretical Concrete Output:
-
110 m3/h
-
Main oil pump:
-
10 Mps
-
After-sales Service Provided:
-
Video Technical Support Online Support
-
Color:
-
Customizable
Product Description
Technical Features:
Power system: The original diesel engine features strong power, excellent performances, and high reliability.
Hydraulic system: The pumping hydraulic system adopts dual-pump dual-circuit constant-power open-loop hydraulic system and German Rex*roth oil pump..The main cylinder and swing cylinder are driven by two pumps separately. The swing cylinder features quick and
powerful motions. The hydraulically controlled reversing mode guarantees more reliable and stable reversing motions for the main pumping line.
Pumping system: The maximum capacity of the hopper is up to 800L and the inner walls of hopper adopt arc-shaped design to eliminate dead spaces for material deposits. The high wear-resistant wearing plate and cutting ring sufficiently cut down the user's operating cost. The S-pipe valve features low height difference and achieves smoother concrete flow.
Electronic control system: The main electronic control units adopt originally imported products, featuring simple system, low unit number, and high reliability.
Lubrication system: The central lubrication mode is adopted so that the hydraulically controlled follow-up grease pump guarantees the lubrication effects. All lubrication points of the multi-plate progressive grease distributor are fitted with blockage indicator to ease the maintenance and checking. In event of blockage in any oil line, the other oil lines can still function normally.
Power system: The original diesel engine features strong power, excellent performances, and high reliability.
Hydraulic system: The pumping hydraulic system adopts dual-pump dual-circuit constant-power open-loop hydraulic system and German Rex*roth oil pump..The main cylinder and swing cylinder are driven by two pumps separately. The swing cylinder features quick and
powerful motions. The hydraulically controlled reversing mode guarantees more reliable and stable reversing motions for the main pumping line.
Pumping system: The maximum capacity of the hopper is up to 800L and the inner walls of hopper adopt arc-shaped design to eliminate dead spaces for material deposits. The high wear-resistant wearing plate and cutting ring sufficiently cut down the user's operating cost. The S-pipe valve features low height difference and achieves smoother concrete flow.
Electronic control system: The main electronic control units adopt originally imported products, featuring simple system, low unit number, and high reliability.
Lubrication system: The central lubrication mode is adopted so that the hydraulically controlled follow-up grease pump guarantees the lubrication effects. All lubrication points of the multi-plate progressive grease distributor are fitted with blockage indicator to ease the maintenance and checking. In event of blockage in any oil line, the other oil lines can still function normally.
Product Paramenters
|
Overall Parameter
|
|
|
|
Model
|
50M
|
|
|
Overall length(mm)
|
12480
|
|
|
Overall width(mm)
|
2550
|
|
|
Overall Height(mm)
|
4000
|
|
|
Total weight(kg)
|
35000
|
|
|
Boom form
|
RZ
|
|
|
End hose length(m)
|
3
|
|
|
First arm length/angle(mm/°)
|
10065/90
|
|
|
Second arm length/angle(mm/°)
|
7850/180
|
|
|
Third arm length/angle(mm/°)
|
7550/180
|
|
|
Fourth arm length/angle(mm/°)
|
9810/240
|
|
|
Fifth arm length/angle(mm/°)
|
5570/110
|
|
|
Sixth arm length/angle(mm/°)
|
4460/110
|
|
|
Hydraulic system type
|
Open type system
|
|
|
Distribution valve form
|
S tube valve
|
|
|
Theory output capacity(m³/h)
|
110
|
|
|
Maximum aggregate size(mm)
|
40
|
|
|
Theory pumping pressure(Mps)
|
10
|
|
|
Hopper capacity(L)
|
750L
|
|
|
Recommended concrete slump(mm)
|
14-23
|
|
|
Hydraulic oil cooling
|
Air cooling
|
|

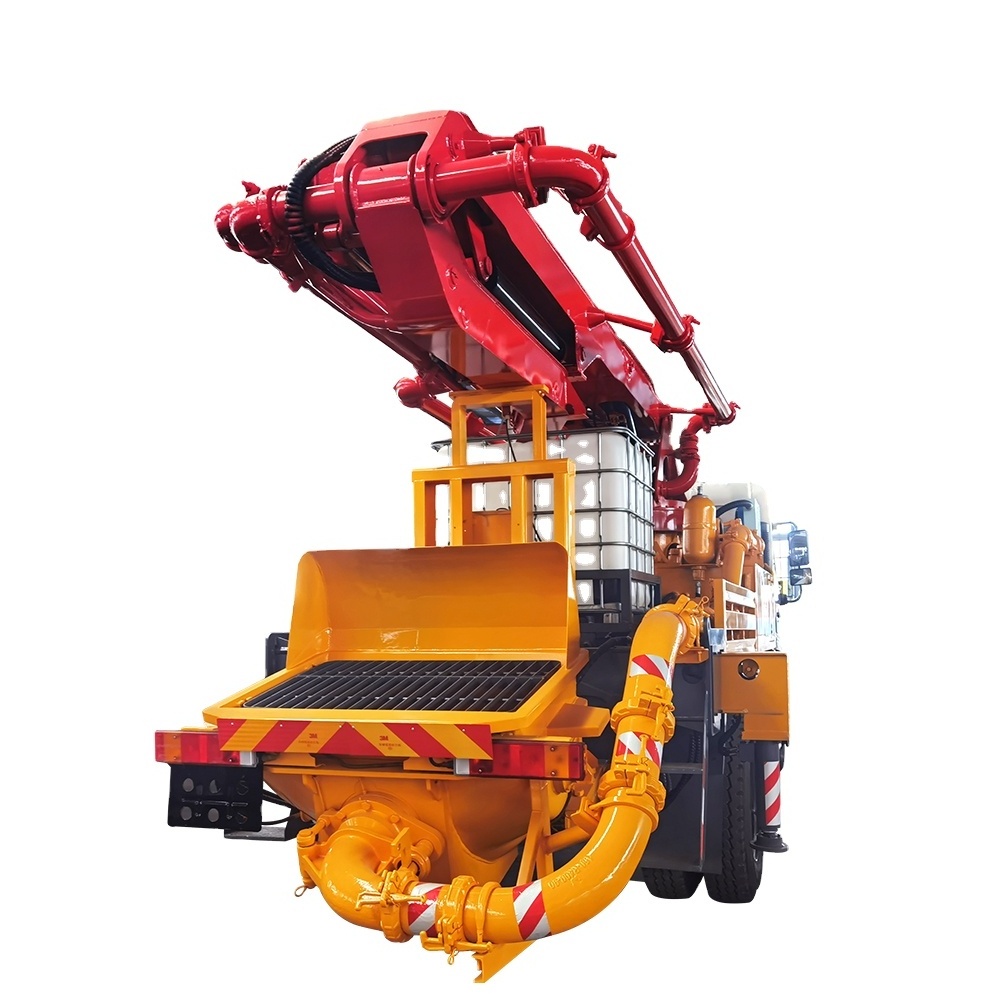

Details Images
