◆ Any type of compressed air systems and up to 16 bar（40bar 80bar 100bar)
◆ No air-lock during operation.
◆ TEST Button feature.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
0.6kg
-
Interval Time:
-
0.5 -45 minutes
-
Discharge Time:
-
0.5 -10 seconds
-
Manual Test Switch:
-
Yes
-
Supply Voltage:
-
24V~240V± 10% 50/60Hz
-
Current Consumption:
-
Max. 4mA
-
Operating Temperature:
-
-40 ℃~ +50 ℃
-
Indicators:
-
Left Yellow,valve open Right Yellow,valve closed
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SUNWIN
-
Product name:
-

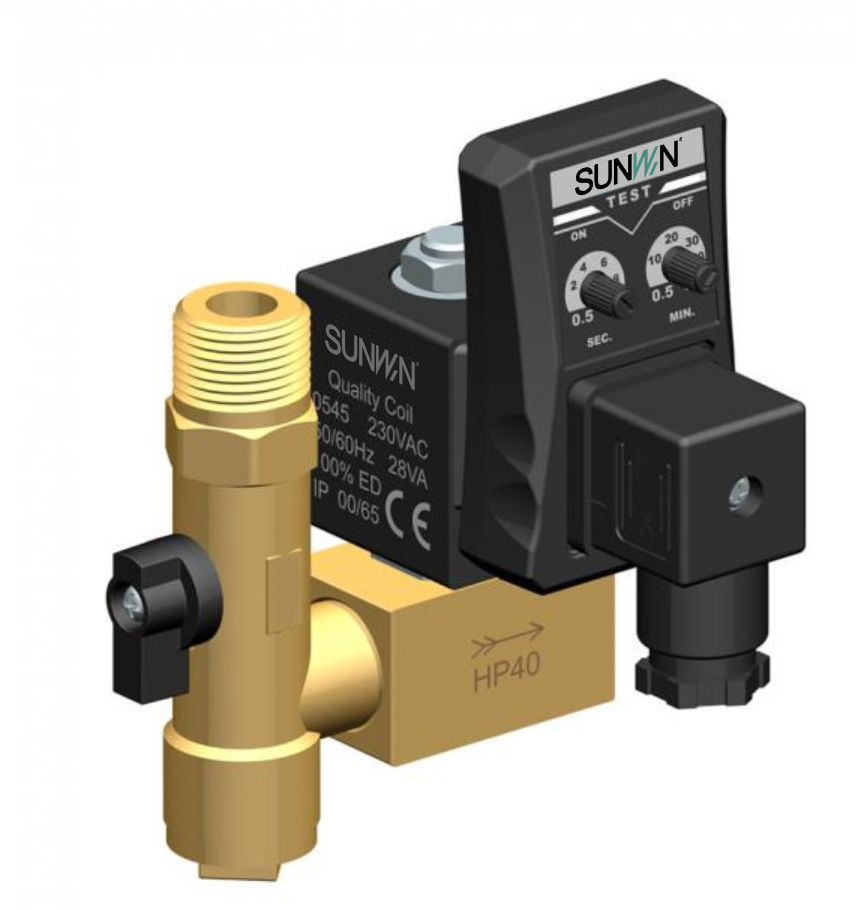

16 Bar Electronic Solenoid Drain Valve For Air Receiver Tank
-
Weight:
-
0.6kg
-
Interval Time:
-
0.5 -45 minutes
-
Discharge Time:
-
0.5 -10 seconds
-
Manual Test Switch:
-
Yes
-
Supply Voltage:
-
24V~240V± 10% 50/60Hz
-
Current Consumption:
-
Max. 4mA
-
Operating Temperature:
-
-40 ℃~ +50 ℃
-
Indicators:
-
Left Yellow,valve open Right Yellow,valve closed
Introduction
The SUNWIN electronic auto drainer-controlled condensate drainer combines an adjustable electronic timer-controlled drain, a ball valve and a mesh strainer into one compact easy to install package.
Suitable for any flow range and pressure up to 16bar (230 PSI), the drainer is perfect for virtually any compressed air application, especially those with solid particulate contaminants.
With a test button, LED on/off indication and a full serviceable direct acting valve, the drainer offers affordable, reliable condensate management without the need to install additional valves and strainers. Use it on any compressor, receiver, filter or refrigerated dryer. The saves installation time and protects against large particles found in condensate, thanks to the integrated ball valve and strainer. The unit can be shut off from the compressed air system, enabling easy and safe work to be carried out.
Features
◆
Integrated mesh strainer, offering valve and orifice protection from larger particles found in condensate.
◆ Integrated shut off valve, offering easy shut off of the valve for routine maintenance.
◆ Correct electronic timer controlled
Product Parameters
|
Product model
|
SRPT-16A
|
SRPT-16B
|
|
|
Product features
|
Split type（L-type）
|
Integrated type（line-type）
|
|
|
Timer cycle range (ON/OFF)
|
ON：0.5 - 10 Sec. OFF：0.5 - 45 Min.
|
|
|
|
Rated working pressure
|
0-1.6Mpa
|
|
|
|
Discharge capacity at 0.8Mpa
|
About 160 ml/s
|
|
|
|
Applicable media
|
Water、Oil-containing condensate
|
|
|
|
Temperature of medium
|
1-60℃
|
|
|
|
Temperature of ambient
|
1-60℃
（Heating model is optional for sub-zero temperature）
|
|
|
|
Inlet/Outlet of ball valve strainer
|
Inlet：Male R1/2’’
Outlet：Male R1/2’’ |
/
|
|
|
Inlet/Outlet of solenoid valve
|
Inlet：Female Rc1/2’’
Outlet：Female Rc1/2’’ |
Inlet: Male R1/2’’
Outlet：Female Rc1/2’’ |
|
|
Type of discharge valve
|
Direct acting solenoid valve
|
|
|
|
Valve orifice
|
3.2 mm
|
|
|
|
Front mesh strainer of discharge valve
|
Yes（Outer set）
|
|
|
|
Material of valve body
|
Brass
|
|
|
|
Manual function
|
Yes
|
|
|
|
Protective class
|
IP65（After correct assembling）
|
|
|
|
Supply voltage options
|
24-380 VAC/DC 50/60Hz Optional
|
|
|
|
Overall dimensions
L* W * H
|
86×90×111
|
92×90×122
|
|
|
N.W.
|
575 g
|
515 g
|
|
|
Product model
|
WK-HP25
|
WK-HP50
|
WK-HP80
|
||
|
Product features
|
① High pressure
② Zero air-loss
③ Innovative modular structure
|
|
|
||
|
Applications
|
High pressure applications
|
|
|
||
|
Working pressure
|
0-2.5Mpa
|
0-5.0Mpa
|
0-8.0Mpa
|
||
|
Max. discharge volume
|
90 L/h
|
44 L/h
|
24 L/h
|
||
|
Applicable media
|
Water、Oil-containing condensate
|
|
|
||
|
Temperature of medium
|
1-60 ℃
|
|
|
||
|
Temperature of ambient
|
1-60℃（Heating bar is optional for sub-zero temperature）
|
|
1-60℃
|
||
|
Inlet
|
2 * G1/2 ’’
|
2 * G1/2’’
|
1 * Rc1/2’’
|
||
|
Outlet
|
G1/2 ’’
|
G1/2 ’’
|
G1/2 ’’
|
||
|
Type of discharge valve
|
Solenoid valve
|
|
|
||
|
Front mesh strainer of discharge valve
|
Yes（Inner set）
|
|
|
||
|
Material of housing
|
Stainless steel
|
|
|
||
|
Manual function
|
Yes
|
|
|
||
|
Protective class
|
IP65
|
|
|
||
|
Supply voltage options
|
24V AC/DC 、110V AC 、220V AC
|
|
|
||
|
Alarm function
|
Two kinds of alarm contacts of normally open (N.O) (switch on when alarm) and normally closed (N.C) (switch off when alarm) are available at the same time
|
|
|
||
|
Load of alarm contacts
|
Max. 62.5VA for alternating current, Max. 60W for direct current
|
|
|
||
|
Overall dimensions
L* W * H (mm)
|
172×110×147
|
161×102×137
|
151×92×137
|
||
|
N.W.
|
3.3 kg
|
2.8 kg
|
2.5 kg
|
||
