Quick Details
-
Brand Name:
-
Omenfirst
-
Model Number:
-
NF1024K-P24-4S-10G-M3
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
24 GE 4 10G SFP L3 Managed PoE Switch
-
Fixed port:
-
24*10/100/1000Base-TX PoE;4*100/1000/2500/10000M SFP
-
Bandwidth:
-
512Gbps
-
Packet Forwarding:
-
95.23Mpps
-
FLASH:
-
512MBytes
-
PoE Bridge:
-
max 400W
-
MAC Address:
-
16K
-
External dimensions:
-
440*290*45mm
-
Power supply:
-
AC:100-240Vac 50-60Hz 5A max 415W
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
512G
-
Brand Name:
-
Omenfirst
-
Model Number:
-
NF1024K-P24-4S-10G-M3
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
24 GE 4 10G SFP L3 Managed PoE Switch
-
Fixed port:
-
24*10/100/1000Base-TX PoE;4*100/1000/2500/10000M SFP
-
Bandwidth:
-
512Gbps
-
Packet Forwarding:
-
95.23Mpps
-
FLASH:
-
512MBytes
-
PoE Bridge:
-
max 400W
-
MAC Address:
-
16K
-
External dimensions:
-
440*290*45mm
-
Power supply:
-
AC:100-240Vac 50-60Hz 5A max 415W
|
Please Inquire For Batch Price
Support customization and overseas order allocation
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||

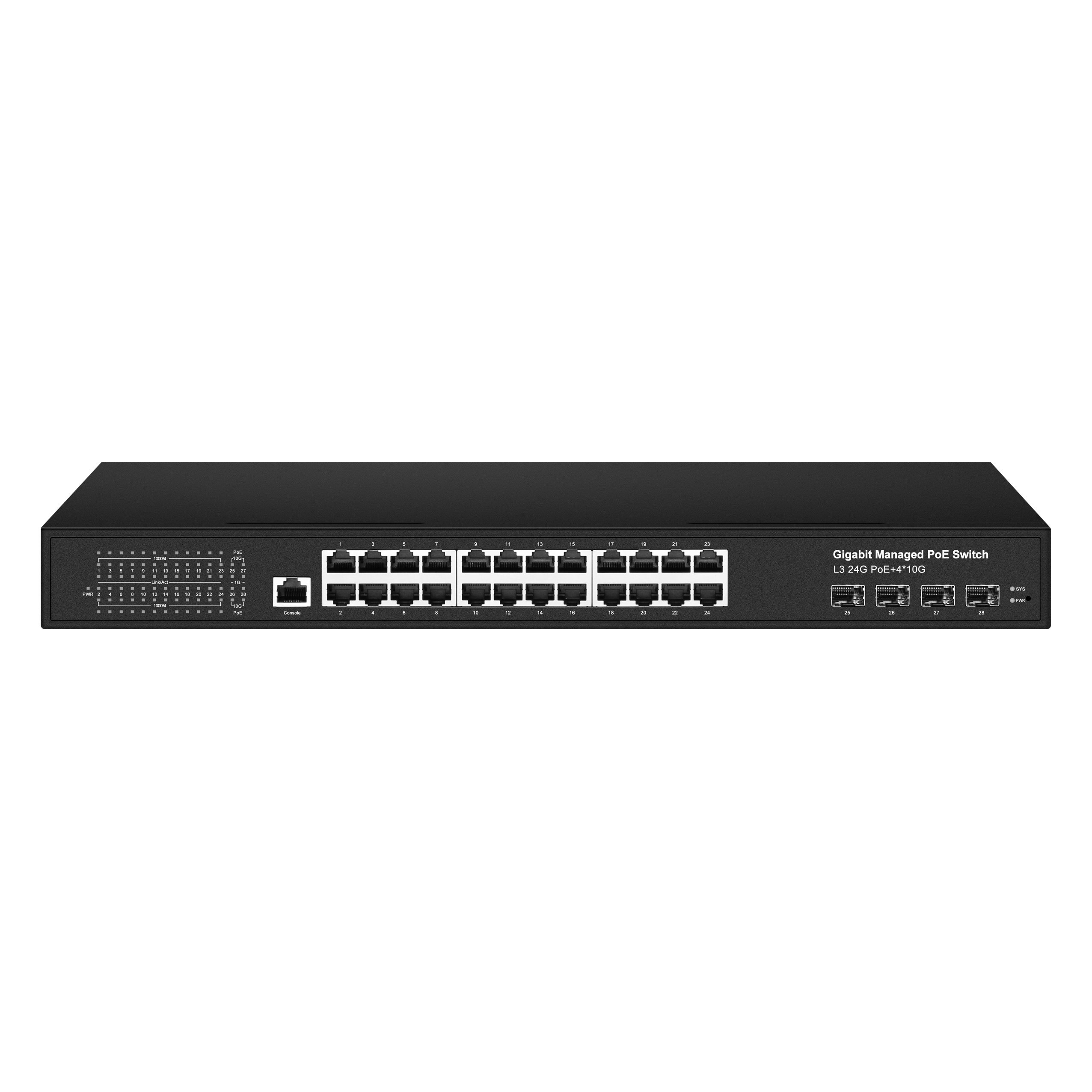

24 GE 4 10G SFP L3 Managed PoE Switch
24*1000Mbps PoE+
4*10G SFP
Product parameters
|
Product name
|
24 GE 4 10G SFP L3 Managed PoE Switch
|
|
Model
|
NF1024K-P24-4S-10G-M3
|
|
Fixed Port
|
24*10/100/1000Base-TX PoE
4*100/1000/2500/10000M SFP |
|
PoE Port
|
1-2 port supports IEEE802.3af/at/poe++/bt, max 90W/port PoE out
3-24 port supports IEEE802.3af/at, max 30W/port, PoE out |
|
PoE type
|
IEEE802.3af/at
|
|
Console Port
|
1*console port
|
|
Reset Key
|
1
|
|
PoE Pin
|
Af/at/bt: 12+ 45+ ; 36- 78-
Af/at: 12+ 36- |
|
PoE Bridge
|
max 400W
|
|
CPU
|
MIPS-34Kc 800GHz
|
|
DDR
|
4G DDR3
|
|
Buffer
|
12Mbit SRAM Packet Buffer
|
|
FLASH
|
512MBytes
|
|
RAM
|
512MBytes
|
|
Bandwidth
|
512Gbps
|
|
Packet Forwarding
|
95.23Mpps
|
|
MAC
|
16K
|
|
Jumbo Frame
|
Jumbo frame up to 12KB
|
|
VLAN Address
|
4K
|
|
Link Aggregation
|
Supports 128 trunk groups with up to 8 members per group
|
|
L3 Routing
|
IPV4 supports 6K; IPV6 supports 2K；
|
|
QoS Queue
|
8
|
|
Transmission Distance
|
10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) SFP: 100M/1G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module) |
|
LED Indicator
|
PWR:Power LED
SYS:System LED 1-24:10/100/1000M Network connection indicator 25-28:10G SFP connection indicator |
|
Power
|
Built-in power AC：100-240Vac 50-60Hz 5A max 415W
|
|
Operating Temperature/Humidity
|
-10～+55°C；5%～90% RH Non coagulation
|
|
Storage Temperature/Humidity
|
-40～+75°C；5%～95% RH Non coagulation
|
|
Product /Packing size（L*W*H）
|
440*290*45mm 515*375*95mm
|
|
N.W/G.W（kg）
|
3.5kg/4.2kg
|
|
Lightning Protection level
|
6KV 8/20us；IP30
|
|
Installation
|
Rack-mount (optional machine hanger spare parts)
|
|
Certificate
|
CE-EMC EN55032；CE-LVD EN62368；FCC Part 15 Class B；RoHS；
|
Metal case Bilateral heat dissipation
Efficient heat resistance and anti-interference
