Quick Details
-
Model Number:
-
13K
-
Certificate:
-
CE ROHS
-
Product Name:
-

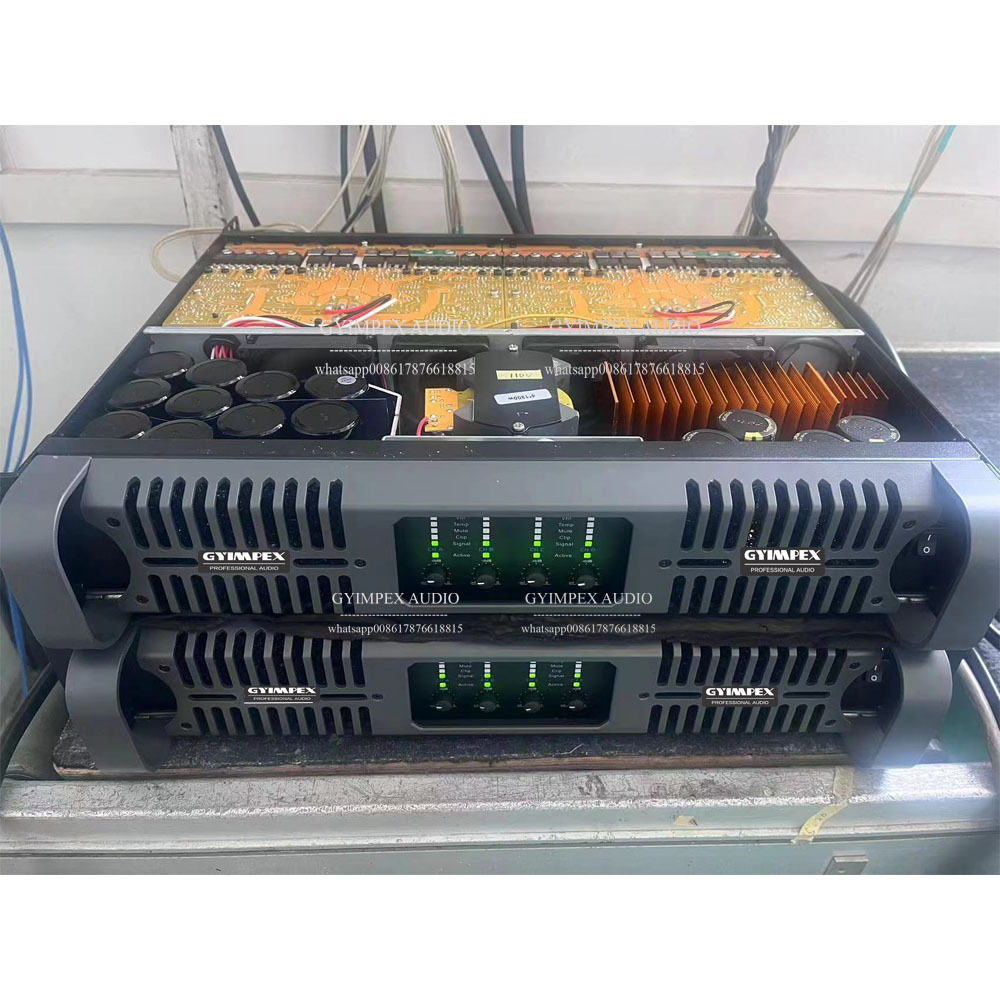

4 channel power amplifier 700w*4 amp for mid high frequency driver
-
8 Ω stereo power:
-
1300w*4
-
4 Ω stereo power:
-
2200w*4
-
2Ω Stereo Power:
-
2500W*4
-
Input connector:
-
female XLR
-
Input impedance:
-
20 k Ω balance
-
THD:
-
<0.05%(1KHZ AND 1dB below clipping)
-
Damping coefficient:
-
>500
-
System Type:
-
class td 2 u digital power amplifier
Quick Details
-
Warranty:
-
3years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
gyimpex
-
Model Number:
-
13K
-
Certificate:
-
CE ROHS
-
Product Name:
-
4 channel power amplifier 700w*4 amp for mid high frequency driver
-
8 Ω stereo power:
-
1300w*4
-
4 Ω stereo power:
-
2200w*4
-
2Ω Stereo Power:
-
2500W*4
-
Input connector:
-
female XLR
-
Input impedance:
-
20 k Ω balance
-
THD:
-
<0.05%(1KHZ AND 1dB below clipping)
-
Damping coefficient:
-
>500
-
System Type:
-
class td 2 u digital power amplifier
Specification
|
MODEL: 13K
4 channel power amplifier for line array system, 18 inch 21inch 15inch subwoofer and monitor full range speakers
4 channels Class TD Switch power amplifier
8ΩStereo Power(RMS): 1300WX4 4ΩStereo Power(RMS): 2200WX4 2ΩStereo Power(RMS): 2500WX4 8ΩBridged Power(RMS): 4400WX2 4ΩBridged Power(RMS): 5000WX2
Frequency Response(+o/-0.3dB,1W/8Ω): 20 Hz - 34 kHz
Output Power: 20-20kHz, 1W with 1 khz THD 20 Hz - 20 kHz for 1 W: <0.1% Signal-to-Noise Ratio: >112 dBA Channel separation (Crosstalk) at 1 kHz: >70 dB Input Connectors (per channel): 3-pin XLR, electronically balanced Output Connectors (per channel): Binding Posts 2-pole Tour Class Protection: ACL,IGM, Auto Ramp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input Operating voltage, 230 V / 115 V nominal: 130-265 V / 65-135 V selectable Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable Input impedance: 20 kOhm Level adjustment (perch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB Dimensions (W×H×D): 483×88×377mm Net weight(kg): 13kg Packing dimension: 575×140×555mm Gross weight(kg): 16kg |
Product Description
More about US: Our Main Products: Line Array, Subwoofer, Stage Monitor, PA Speaker, Amplifier, Active Speaker, Active Line Array, Passive Speaker, Bass Bin, Coaxial Monitor ,digital power amplifier, fp power amplifier series, amplifier module(amp board plate). about crossover frequency , we have pro audio frequency divider passive filter network crossover and and also have dsp processor speaker management system. and also quick release pins and all kind of rigging for speakers and line array systems.we manufacture top end quality and economic class to meet different market customer needs.we also produce speaker subwoofer rain cover protective speaker covers and subwoofer dolly , flying frame bumper for line array, About the packing, can use carton packing or flightcase(roadcase) packing. About the shipment: shipment by air,by express, by sea, by railway to door, and also you can pick up from us.
Applications
Live performance for both indoor and outdoor.
Drum monitor.
Nightclub installations
High-level music palyback.
Reinforcement of music and speech in entertainment or AV applications
High-performance satellite speaker for use with subwoofers
