As a professional project-base structure designed hd cctv camera manufacturer, GWSecu had passed ISO9001-14001 quality management system authentication, all products have been successfully certificated by CE, FCC, ROHS.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DH original
-
Model Number:
-
IPC-HFW2431DG-4G-SP-EAU-B
-
Image Sensor:
-
1/3" CMOS
-
Effective Pixels:
-
2688(H) x 1520(V), 2 MP
-
Minimum Illumination:
-
0.01LuxF1.6(Color,30IRE) 0.001 LuxF1.6(B/W,30IRE)
-
IR Distance:
-
50 m (273 ft) (IR)
-
Focal Length:
-
2.8mm; 3.6mm; 6mm
-
IVS:
-
Intrusion, tripwire
-
4G:
-
4G_LTE: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 3G_WCDMA : B1/B5/B8
-
Casing:
-
Metal, plastic
-
Protection Grade:
-
IP67
-
Management Software:
-
Smart PSS, DSS, DMSS
Quick Details
-
Special Features:
-
NIGHT VISION, Motion Detection, Waterproof / Weatherproof, Built-in Siren, People Counting, Two-way Audio
-
Function:
-
Two-way Audio, Alarm I/O, RESET, Built-in Mic, NIGHT VISION, Waterproof / Weatherproof, Wide Angle
-
Customized support:
-
Online technical support
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DH original
-
Model Number:
-
IPC-HFW2431DG-4G-SP-EAU-B
-
Image Sensor:
-
1/3" CMOS
-
Effective Pixels:
-
2688(H) x 1520(V), 2 MP
-
Minimum Illumination:
-
0.01LuxF1.6(Color,30IRE) 0.001 LuxF1.6(B/W,30IRE)
-
IR Distance:
-
50 m (273 ft) (IR)
-
Focal Length:
-
2.8mm; 3.6mm; 6mm
-
IVS:
-
Intrusion, tripwire
-
4G:
-
4G_LTE: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 3G_WCDMA : B1/B5/B8
-
Casing:
-
Metal, plastic
-
Protection Grade:
-
IP67
-
Management Software:
-
Smart PSS, DSS, DMSS
Product Description
IPC-HFW2431DG-4G-SP-EAU-B

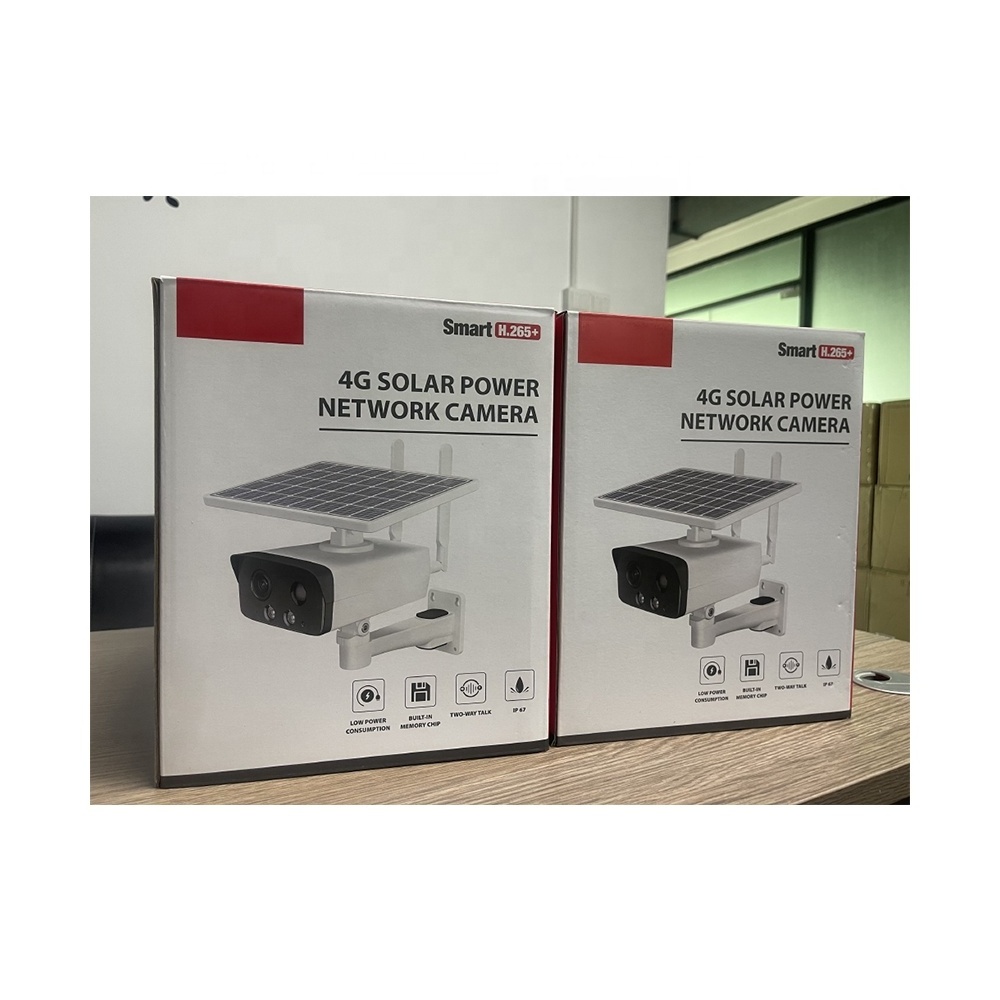

4MP IR Fixed-focal Bullet 4G Solar Power Network Camera
> 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED.
> Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
> Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks. Please
test the local 4G network with the camera before use.
> Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature.
> Built-in 8 GB eMMC memory chip that protects key records from being lost.
> Supports solar power, making it ideal for use in locations that have exposure to sunlight.
> Standalone with built-in solar panel and battery, battery cycle life can last up to 10 days at the rate of 1-hour remote live
view per day.
> Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection,
IP conflict and illegal access.
> Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk.
> IP67 protection.
With a built-in high-performance 4G mobile network module, the camera can be directly registered to cloud platforms after a 4G SIM
card has been inserted into it. It can be installed anywhere without the hassle of network cables. Users can perform real-time
monitoring and remote control of the camera from a mobile client through 4G network
> Outputs max. 4 MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED.
> Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
> Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks. Please
test the local 4G network with the camera before use.
> Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature.
> Built-in 8 GB eMMC memory chip that protects key records from being lost.
> Supports solar power, making it ideal for use in locations that have exposure to sunlight.
> Standalone with built-in solar panel and battery, battery cycle life can last up to 10 days at the rate of 1-hour remote live
view per day.
> Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection,
IP conflict and illegal access.
> Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk.
> IP67 protection.
With a built-in high-performance 4G mobile network module, the camera can be directly registered to cloud platforms after a 4G SIM
card has been inserted into it. It can be installed anywhere without the hassle of network cables. Users can perform real-time
monitoring and remote control of the camera from a mobile client through 4G network
Tech Specification
|
Camera
|
|
|
|
|
|
|||||
|
Image Sensor
|
1/3" CMOS
|
|
|
|
|
|||||
|
Max. Resolution
|
2688 (H) × 1520 (V)
|
|
|
|
|
|||||
|
ROM
|
128MB
|
|
|
|
|
|||||
|
RAM
|
256MB
|
|
|
|
|
|||||
|
Scanning System
|
Progressive
|
|
|
|
|
|||||
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
|
|
|
|||||
|
Min. Illumination
|
0.01 Lux@F1.6 (Color,30IRE)
|
|
|
|
|
|||||
|
|
0.001 Lux@F1.6 (B/W,30IRE)
|
|
|
|
|
|||||
|
|
0 lux (Illuminator on)
|
|
|
|
|
|||||
|
S/N Ratio
|
>56 dB
|
|
|
|
|
|||||
|
Illumination Distance
|
IR: 50 m (164.04 ft)
|
|
|
|
|
|||||
|
|
Warm light: 30 m (98.43 ft)
|
|
|
|
|
|||||
|
Illuminator On/Off Control
|
Auto;Manual
|
|
|
|
|
|||||
|
Illuminator Number
|
1 (IR LED); 1 (Warm light)
|
|
|
|
|
|||||
|
Angle Adjustment
|
Pan: 0°–360°
|
|
|
|
|
|||||
|
|
Tilt: –60°–0°
|
|
|
|
|
|||||
|
|
Rotation: 0°–360°
|
|
|
|
|
|||||
|
Built-in Battery
|
Support 10000 mAh rechargeable lithium battery
|
|
|
|
|
|||||
|
PIR Sensor Distance
|
10 m (the height of device is 2.5 m, placed horizontally)
|
|
|
|
|
|||||
|
|
5 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal)
|
|
|
|
|
|||||
|
Battery
|
|
|
|
|
|
|||||
|
Battery Type
|
Lithium-ion
|
|
|
|
|
|||||
|
Capacity
|
10 Ah
|
|
|
|
|
|||||
|
Max. Charging Voltage
|
4.2 V
|
|
|
|
|
|||||
|
Operating Temperature
|
0 °C to +50 °C (+32 °F to +122 °F)
|
|
|
|
|
|||||
|
Battery Voltage
|
3.0 V to 4.2 V
|
|
|
|
|
|||||
|
Cycle Lifetime
|
Sleep Mode(Recommend): About 10 days (at the rate of 1-hour remote live view per day)
|
|
|
|
|
|||||
|
|
General Mode: About 15 hours(when the battery is fully charged)
|
|
|
|
|
|||||
|
Battery Life
|
More than 500 cycles
|
|
|
|
|
|||||
|
Battery Weight
|
Approx. 190 g (0.42 lb)
|
|
|
|
|
|||||
|
Solar Module
|
|
|
|
|
|
|||||
|
Maximum Power
|
5 W
|
|
|
|
|
|||||
|
Cell type
|
Monocrystalline
|
|
|
|
|
|||||
|
Operating Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
|
|
|
|||||
|
Dimensions
|
230 mm × 150 mm × 2 mm (9.1" × 5.9" × 0.1") (L × W × H)
|
|
|
|
|
|||||
|
Standard testing condition
|
AM = 1.5, 25 °C (77 °F), 1000 W/m², SMQ + 12%
|
|
|
|
|
|||||
|
Lens
|
|
|
|
|
|
|||||
|
Lens Type
|
Fixed-focal
|
|
|
|
|
|||||
|
Lens Mount
|
M12
|
|
|
|
|
|||||
|
Focal Length
|
2.8 mm; 3.6 mm; 6 mm
|
|
|
|
|
|||||
|
Max. Aperture
|
2.8 mm: F1.6
|
|
|
|
|
|||||
|
|
3.6 mm: F1.6
|
|
|
|
|
|||||
|
|
6 mm: F1.6
|
|
|
|
|
|||||
|
Field of View
|
2.8 mm: H: 102°; V: 54°; D:121°
|
|
|
|
|
|||||
|
|
3.6 mm: H: 84°; V: 42°; D:101°
|
|
|
|
|
|||||
|
|
6 mm: H: 52°; V: 48°; D:61°
|
|
|
|
|
|||||
|
Iris Control
|
Fixed
|
|
|
|
|
|||||
|
Close Focus Distance
|
2.8 mm: 0.9 m (2.95 ft)
|
|
|
|
|
|||||
|
|
3.6 mm: 1.7 m (5.58 ft)
|
|
|
|
|
|||||
|
|
6 mm: 3.2 m (10.50 ft)
|
|
|
|
|
|||||
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|||||
|
|
2.8 mm
|
63.6 m (208.66 ft)
|
25.4 m
|
12.7 m
|
6.4 m
|
|||||
|
|
|
|
(83.33 ft)
|
(41.67 ft)
|
(21.00 ft)
|
|||||
|
|
3.6 mm
|
85.4 m (280.18 ft)
|
34.2 m (112.20 ft)
|
17.1 m
|
8.5 m
|
|||||
|
|
|
|
|
(56.10 ft)
|
(27.89 ft)
|
|||||
|
|
6 mm
|
124.0 m (406.82 ft)
|
49.6m (162.73 ft)
|
24.8m
|
12.4m
|
|||||
|
|
|
|
|
(81.36 ft)
|
(40.68 ft)
|
|||||
|
Video
|
|
|
|
|
|
|||||
|
Video Compression
|
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
|
|
|
|
|
|||||
|
Video Frame Rate
|
Main stream: 2688 × 1520 @(1–25/30 fps )
|
|
|
|
|
|||||
|
|
sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
|
|
|
|
|
|||||
|
Stream Capability
|
2 streams
|
|
|
|
|
|||||
|
Resolution
|
4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 ×960 ); 720p (1280 × 720); D1 (704 × 576/704
× 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|
|
|
|
|||||
|
Bit Rate Control
|
CBR/VBR
|
|
|
|
|
|||||
|
Video Bit Rate
|
H.264: 32 kbps–8192 kbps
|
|
|
|
|
|||||
|
|
H.265: 32 kbps–8192 kbps
|
|
|
|
|
|||||
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
|
|
|
|||||
|
BLC
|
Yes
|
|
|
|
|
|||||
|
HLC
|
Yes
|
|
|
|
|
|||||
|
WDR
|
120 dB
|
|
|
|
|
|||||
|
Scene Self-adaptation (SSA)
|
Yes
|
|
|
|
|
|||||
|
White Balance
|
Auto; natural; street lamp; outdoor; manual; regional custom
|
|
|
|
|
|||||
|
Gain Control
|
Auto
|
|
|
|
|
|||||
|
Noise Reduction
|
3D NR
|
|
|
|
|
|||||
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
|
|
|
|||||
|
Region of Interest (RoI)
|
Yes (4 areas)
|
|
|
|
|
|||||
|
Smart Illumination
|
Yes
|
|
|
|
|
|||||
|
Mirror
|
Yes
|
|
|
|
|
|||||
|
Privacy Masking
|
4 areas
|
|
|
|
|
|||||
|
Audio
|
|
|
|
|
|
|||||
|
Built-in MIC
|
Yes
|
|
|
|
|
|||||
|
Built-in Speaker
|
Yes
|
|
|
|
|
|||||
|
Audio Compression
|
G.711a;G.711Mu; G.726; PCM
|
|
|
|
|
|||||
|
Alarm
|
|
|
|
|
|
|||||
|
Alarm Event
|
SD card error; SD card full; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception;
PIR alarm; low battery alarm; light alarm; sound alarm |
|
|
|
|
|||||
|
Network
|
|
|
|
|
|
|||||
|
Network Port
|
RJ-45 (10/100 Base-T)
|
|
|
|
|
|||||
|
Frequency
|
4G:
|
|
|
|
|
|||||
|
|
FDD-LTE: B1/3/5/7/8/20/28
|
|
|
|
|
|||||
|
|
TDD-LTE: B38/40/41
|
|
|
|
|
|||||
|
|
Applicable regions: Europe, Asia-Pacific, Africa
|
|
|
|
|
|||||
|
|
3G:
|
|
|
|
|
|||||
|
|
WCDMA: B1/5/8
|
|
|
|
|
|||||
|
|
Applicable regions: Europe, Asia-Pacific, Africa
|
|
|
|
|
|||||
|
|
2G:
|
|
|
|
|
|||||
|
|
GSM/GPRS/EDGE: B3/5/8
|
|
|
|
|
|||||
|
|
Applicable regions: Europe, Asia-Pacific, Africa
|
|
|
|
|
|||||
|
SDK and API
|
Yes
|
|
|
|
|
|||||
|
Cyber Security
|
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering;
generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
|
|
|
|
|||||
|
Network Protocol
|
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP;
NFS; SAMBA; PPPoE; SNMP; P2P |
|
|
|
|
|||||
|
Interoperability
|
ON VIF (Profile S/Profile G); CGI
|
|
|
|
|
|||||
|
User/Host
|
20 (Total bandwidth: 80 M)
|
|
|
|
|
|||||
|
Storage
|
Bulit in eMMC (8 GB); FTP;SFTP; Micro SD card (support max. 256 GB); NAS
|
|
|
|
|
|||||
|
Browser
|
IE: IE8,9,11
|
|
|
|
|
|||||
|
|
Chrome
|
|
|
|
|
|||||
|
|
Firefox
|
|
|
|
|
|||||
|
Management Software
|
DSS; DMSS
|
|
|
|
|
|||||
|
Mobile Client
|
iOS; Android
|
|
|
|
|
|||||
|
Certification
|
|
|
|
|
|
|||||
|
Certifications
|
CE-LVD: EN62368-1;
|
|
|
|
|
|||||
|
|
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
|
|
|
|
|
|||||
|
|
CE-RED: Radio Equipment Directive 2014/53/EU;
|
|
|
|
|
|||||
|
|
FCC: 47 CFR FCC Part 15; Subpart B
|
|
|
|
|
|||||
|
Port
|
|
|
|
|
|
|||||
|
USB
|
1 Micro USB Port
|
|
|
|
|
|||||
|
Power
|
|
|
|
|
|
|||||
|
Power Supply
|
MicroUSB/5 VDC
|
|
|
|
|
|||||
|
Power Consumption
|
Sleep Mode: 0.03 W
|
|
|
|
|
|||||
|
|
General Mode: 2.6 W
|
|
|
|
|
|||||
|
|
Max. (4G pulling stream+IR+speaker+warning light): 4.9 W
|
|
|
|
|
|||||
|
Environment
|
|
|
|
|
|
|||||
|
Operating Temperature
|
0 °C to +50 °C (+32 °F to +122 °F)
|
|
|
|
|
|||||
|
Operating Humidity
|
≤ 95%
|
|
|
|
|
|||||
|
Storage Temperature
|
0 °C to +50 °C (+32 °F to +122 °F)
|
|
|
|
|
|||||
|
Protection
|
IP67
|
|
|
|
|
|||||
|
Structure
|
|
|
|
|
|
|||||
|
Casing
|
Metal + plastic
|
|
|
|
|
|||||
|
Product Dimensions
|
247 mm × 219 mm×179 mm (9.72" × 8.62" × 7.05")
|
|
|
|
|
|||||
|
|
(L × W × H)
|
|
|
|
|
|||||
|
Packaging Dimensions
|
238 mm×181 mm×296 mm (9.37"×7.13"×11.65")
|
|
|
|
|
|||||
|
|
(L × W × H)
|
|
|
|
|
|||||
|
Net Weight
|
1250 g (2.80 lb)
|
|
|
|
|
|||||
|
Gross Weight
|
1610 g (3.50 lb)
|
|
|
|
|
|||||
