Pure Aluminum (ADC12) to keep fast heat dissipation;
Large Heat cooling area;
Air path inside keeping air comming through;
Smooth touching area to keep heat fully dissipated.
- Product Details
- {{item.text}}
Quick Details
-
Lamp Body Material:
-
Aluminum Alloy
-
Color Temperature(CCT):
-
/
-
Color Rendering Index(Ra):
-
/
-
Support Dimmer:
-
/
-
Lifespan (hours):
-
/
-
Working Time (hours):
-
/
-
LED Light Source:
-
C REE/CITIZEN COB
-
Input Voltage(V):
-
220-240V AC
-
Lamp Luminous Flux(lm):
-
3500-3800lm
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/CAROL LIGHTING
-
Model Number:
-
CR-TL0916M-C35
-
Product name:
-

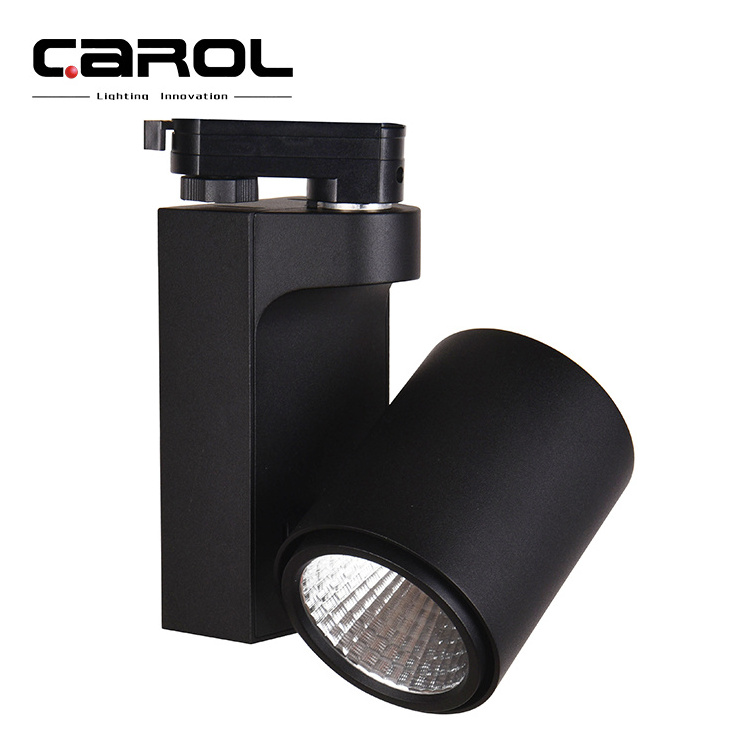

square led track light
-
Working Temperature(℃):
-
-20 - 45
-
Wattge:
-
30W 35W
-
CRI:
-
Ra>80 Ra>90 Ra>95
-
Driver Brand:
-
Tridonic/Lifud
-
Dimming Method:
-
Dali Triac 0-10V
-
Beam Angle:
-
15°/24°/36°
-
Finishing:
-
White/Black/Siliver
-
Weight:
-
1.0kg
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
/, 110
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Lamp Body Material:
-
Aluminum Alloy
-
Color Temperature(CCT):
-
/
-
Color Rendering Index(Ra):
-
/
-
Support Dimmer:
-
/
-
Lifespan (hours):
-
/
-
Working Time (hours):
-
/
-
LED Light Source:
-
C REE/CITIZEN COB
-
Input Voltage(V):
-
220-240V AC
-
Lamp Luminous Flux(lm):
-
3500-3800lm
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/CAROL LIGHTING
-
Model Number:
-
CR-TL0916M-C35
-
Product name:
-
square led track light
-
Working Temperature(℃):
-
-20 - 45
-
Wattge:
-
30W 35W
-
CRI:
-
Ra>80 Ra>90 Ra>95
-
Driver Brand:
-
Tridonic/Lifud
-
Dimming Method:
-
Dali Triac 0-10V
-
Beam Angle:
-
15°/24°/36°
-
Finishing:
-
White/Black/Siliver
-
Weight:
-
1.0kg
Specification
China low price no flickering triac dimmable square 3phase led cable track light 4 wire 30w 35w track lighting pendant adapter
|
Electrical and Optical Parameters
|
|
|
|
|||
|
Model No:
|
CR-TL0916M-C35
|
Input Voltage:
|
220-240V AC ;square led track light
|
|||
|
Power:
|
30W, 35W.
|
CCT(K):
|
2700K/3000K/3500K/4000K/5000K
|
|||
|
Light Efficiency:
|
90-100 lm/w
|
CRI:
|
Ra>80, Ra>90, Ra>95, Ra>97
|
|||
|
LED Chip:
|
CITIZEN/C REE/Luminus COB
|
LED Driver:
|
Tridonic/Lifud
|
|||
|
Track Adaptor:
|
2 wires; 3 wires; 4 wires 3 phase
|
Beam Angle:
|
15° 24° 36°
|
|||
|
Weight:
|
1.0kg
|
Warranty:
|
5 Years
|
|||
|
Aluminum Alloy:
|
ADC 12
|
Light Decay:
|
LM79, 50000H
|
|||
|
Addition:
|
|
|
|
Finishing
|
Black White Grey
|
|
|
Voltage
|
220-240V AC, 50/60Hz
|
|
|
Wattage:
|
35W
|
|
|
LED:
|
CITIZEN 1206; C REE CXA2530
|
|
|
Lumen:
|
3500-3800lm
|
|
|
TC :
|
<70 Degree
|
|
|
IP Grade
:
|
IP22
|
|
|
Size:
|
Φ90mm×160mm
|
|
Product Description
Heat Dissipation:
LED Chip
Suitable LED Holder for
C REE CXA 1830
CITIZEN 1206
Luminous
PC Material reflector for better heat resistant
and high light effect.
Thermal Grease
Superior Heat Transfer
Low Thermal Resistance
High Stability and Reliability
Thermal conductivity> 5.0
L ED Driver
Tridonic DALI Driver avaliable; 100000 Hours Life Span
Xitanium Driver for 5 Years Wanrranty
Different Dimmable method: DALI; Trailing-edge; 1-10V
High Efficiency Reflector
PC Material for good stability and high efficiency
Reflector efficiency above 93%
Good Light Effect for commercial stores
More Choice Beam Angles:12°/24 °/ 38 °/60 °
