Quick Details
-
Dimension(L*W*H):
-
1250*640*1265mm
-
Weight:
-
615 KG
-
Drilling Diameter:
-
45mm
-
Mobility:
-
Yes
-
Product name:
-
Coal mine drilling machine
-
Feature:
-
small,light and easy to move
-
Keyword:
-
Drilliing Rig
-
After-sales Service Provided:
-
yes
-
Function:
-
anchor drilling
-
Drilling method:
-
Rotating Hydraulic
-
Application:
-
coal mine, tunnel,subway,slope support grouting hole
-
Rotate speed:
-
1460r/min
-
Spring chuck release pressure:
-
8Mpa
-
Oil pump rated flow:
-
16L/min
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOGROUT
-
Voltage:
-
380/660V
-
Dimension(L*W*H):
-
1250*640*1265mm
-
Weight:
-
615 KG
-
Drilling Diameter:
-
45mm
-
Mobility:
-
Yes
-
Product name:
-
Coal mine drilling machine
-
Feature:
-
small,light and easy to move
-
Keyword:
-
Drilliing Rig
-
After-sales Service Provided:
-
yes
-
Function:
-
anchor drilling
-
Drilling method:
-
Rotating Hydraulic
-
Application:
-
coal mine, tunnel,subway,slope support grouting hole
-
Rotate speed:
-
1460r/min
-
Spring chuck release pressure:
-
8Mpa
-
Oil pump rated flow:
-
16L/min

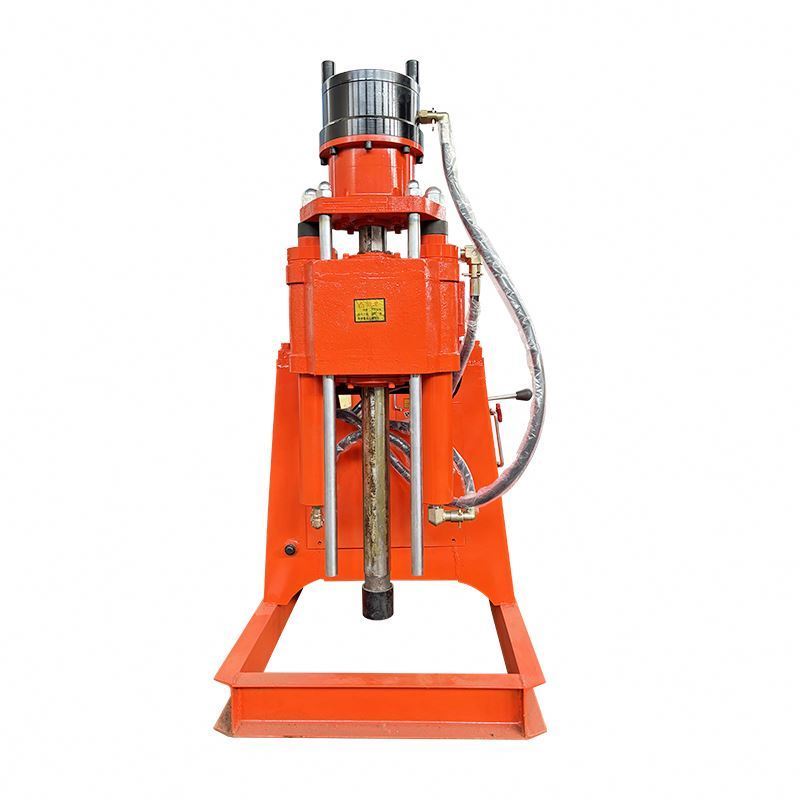

GD1000 Drilling Rig
The GD1000 grouting drilling rig is mainly used for grouting reinforcement drilling at different angles in coal mines, tunnels, subways, and slope support. The drilling rig adopts mechanical transmission and hydraulic feed and has the characteristics of small size, light weight, easy operation and convenient maintenance.
Product Details
Technical Parameter
Performance Features
1. Gyrator assembly: It is formed in one step by the machining center to ensure coaxiality.
2. The semi-ring TQPEA-0015 is processed through multiple processes of straightening, quenching, plane grinding and wire cutting to ensure product reliability and interchangeability.
3. Gear: The bite gap is guaranteed to be less than 10um.
4. Relief valves, multi-way reversing valves, and throttle valves are all provided by major domestic manufacturers.
5. Slips: Made of bearing steel, the quenching hardness reaches more than 60Hrc, which improves resistance and has a longer service life.
6. Hose are provided by brand manufacturers that have coal mine safety standards.
7. The drilling rig chassis can be customized according to the actual needs of customers.
Custom design
