Quick Details
-
Color:
-
Red
-
Panel Size:
-
320x160mm
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
p10 led stock market ticker
-
Usage:
-
Outdoor
-
Tube Chip Color:
-
Red
-
Pixels:
-
10mm
-
Item:
-
1R
-
Brightness:
-
≥1800cd/m2
-
Led Lamp:
-
DIP Oval546/346,1R/1G/1B/1W
-
Weight:
-
0.55kg
-
Max Power Comsuption:
-
333W/m2
-
Screen Dimension:
-
320mmx160mm
-
Driving method:
-
1/4s
-
Pixel Pitch:
-
10
Quick Details
-
Application:
-
Outdoor
-
Type:
-
LED
-
Brand Name:
-
HOOSHINE
-
Color:
-
Red
-
Panel Size:
-
320x160mm
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
p10 led stock market ticker
-
Usage:
-
Outdoor
-
Tube Chip Color:
-
Red
-
Pixels:
-
10mm
-
Item:
-
1R
-
Brightness:
-
≥1800cd/m2
-
Led Lamp:
-
DIP Oval546/346,1R/1G/1B/1W
-
Weight:
-
0.55kg
-
Max Power Comsuption:
-
333W/m2
-
Screen Dimension:
-
320mmx160mm
-
Driving method:
-
1/4s
-
Pixel Pitch:
-
10
|

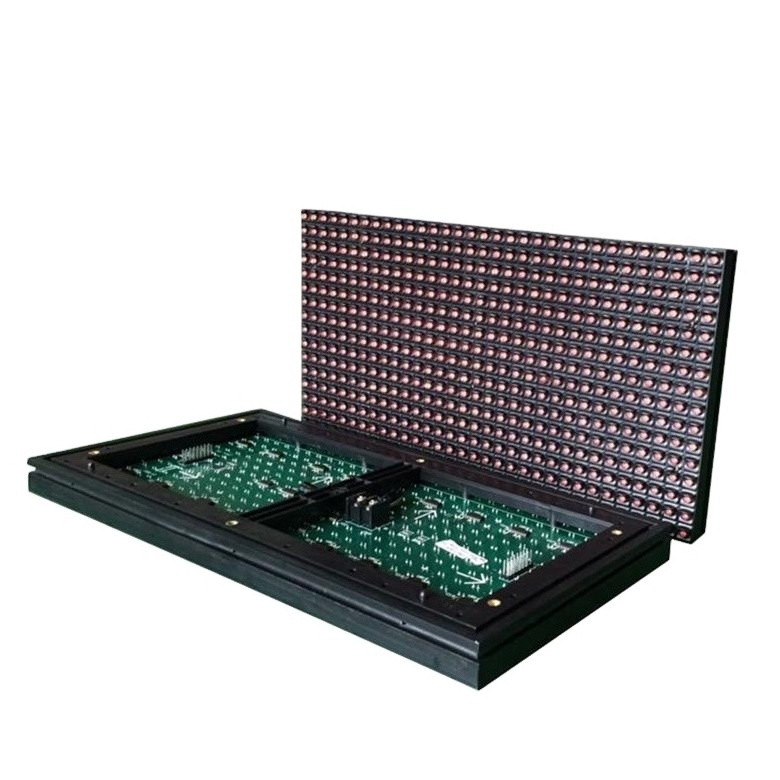

p10 outdoor single red led display parameter
|
||
|
Number |
Item |
P10 Single Red Module |
|
1 |
Pixel pitch |
10mm |
|
2 |
Size of module (wxh) |
320mm X160 mm |
|
3 |
Resolution of module (wxh) |
32 dots X16 dots |
|
4 |
Pixel Density |
10,000dots/m² |
|
5 |
Pixel configuration |
1R or 1G or 1B or 1W |
|
6 |
Red wavelength |
625±2nm |
|
7 |
Green wavelength |
525±2nm |
|
8 |
Blue wavelength |
470±2nm |
|
9 |
Colors |
Red |
|
10 |
Best viewing distance |
10-100m |
|
11 |
Horizontal viewing angle |
120° |
|
12 |
Power consumption |
333w/m² |
|
13 |
Brightness |
>1800cd /m2 |
|
14 |
Gray scale |
16bits per color |
|
15 |
Color temperature |
5500k |
|
16 |
Control method |
Synchronization & Asynchronization |
|
17 |
Driving method |
1/4 scanning |
|
18 |
Frame frequency |
60Hz |
|
19 |
Refresh frequency |
>300Hz |
|
20 |
Working voltage |
AC220V/110V±10% |
|
21 |
IP grade |
IP65 |
|
22 |
Working temperature |
-20°C~80°C |
|
23 |
MTBF |
>10000 hours |
|
24 |
Life span |
>100,000 hours |
|
25 |
Defects rate. |
≤ 0.00001(Led display line standard<0.0001) |
1.
Help you design OEM&ODM or any your customized lightings and put into production
2. The price depends on the quantity.We can offer you the most competitive price with the same and even better quality.
3. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
4.
Your sales area, ideas of design and all your private information would be well-protected.
5.
Good after-sale service: We can response in time if customers have questions about the installation , usage and maintenance ect.
6. Distributorship are offered for your unique design and some of our current models.
Q1: Where is your nearest Sea Port?
Q2: What's the brand of your diode chip?
Q3. Can I order a sample for led display screen?
Q4. How do you ship the goods and how long does it take to arrive?
Q5. Is it OK to print our logo on led screen product?
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.002%.
Secondly, during the guarantee period, we will send new parts with new order for small quantity.
If the screen has serious damaged ( e.g. The whole cabinet couldn’t work normally) caused by human, we would mend it with charge based on the cost .
