Quick Details
-
Place of Origin:
-
Hunan, China
-
Pressure:
-
Standard
-
Structure:
-
Standard
-
Weight:
-
0.25
-
Power:
-
Standard
-
Dimension(L*W*H):
-
5*5*10
-
Maximum pressure:
-
standard
-
Maximum Flow Rate:
-
5 L/Min
-
After Warranty Service:
-
Technical Support/on line support
-
Material:
-
Aluminum/Stainless steel/Ductile Iron
-
MOQ:
-
5 PCS
-
Voltage:
-
Standard
Quick Details
-
Warranty:
-
1 Year
-
Valve type:
-
Proportional Valve
-
Brand Name:
-
OEM/ODM/Kai enli
-
Place of Origin:
-
Hunan, China
-
Pressure:
-
Standard
-
Structure:
-
Standard
-
Weight:
-
0.25
-
Power:
-
Standard
-
Dimension(L*W*H):
-
5*5*10
-
Maximum pressure:
-
standard
-
Maximum Flow Rate:
-
5 L/Min
-
After Warranty Service:
-
Technical Support/on line support
-
Material:
-
Aluminum/Stainless steel/Ductile Iron
-
MOQ:
-
5 PCS
-
Voltage:
-
Standard
PRODUCT SPECIFICATIONS
Product name

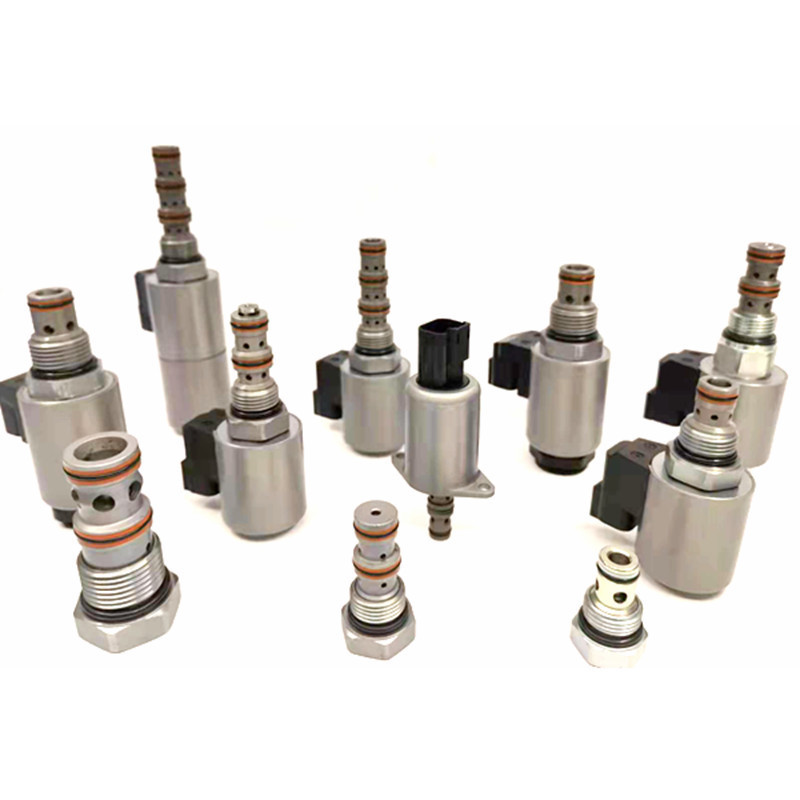

proportional pressure control valve, Mobile operated Hydraulic Relief valves, machinery parts hydraulic valves
Item NO
KPPCD04
(Standard) ( other similar items are available, Please see the below for more order details.)
technical data
Item No:
KPPCD04
|
Item
|
Data
|
|
|
|
Cavity
|
TC06025
|
|
|
|
Rated Working Pressure
|
P:50 Bar T:30 Bar
|
|
|
|
Rated flow
|
5 L/Min
|
|
|
|
Flow
|
Please see the Pressure Drop VS flow Curve Graph
|
|
|
|
Internal Leakage
|
Max 60 ml/min for P=50 bar with electricity Max 30 ml/min (without electricity)
|
|
|
|
Working Temperature
|
(-20°C to +90°C)
|
|
|
|
Connector
|
DT04-2P
|
|
|
|
Seal Kits
|
Standard Buna Seals
|
|
|
|
Voltage
|
12V
|
24V
|
|
|
Max Control Current
|
1500 mA
|
750 mA
|
|
|
Response time
|
50 s
|
|
|
|
working frequency
|
100HZ
|
|
|
|
Fluid
|
Mineral-based fluids or Synthetic lubricating oil with viscosities of 7.4 to 420 cSt.(矿物油粘度)
|
|
|
|
Coil
|
Use metal shell material , good heat dissipation performance, The maximum continuous charging temperature is up to 90℃
|
|
|
Working Principle
The valve
KPPCD04
will allow the oil flow freely from
①
to
③
in the absence of current from the coil.
When the coil is energized, ② will be connected to ①. The control (decompression) pressure will increase proportionally as the current in the coil increases. If the pressure at port ① exceeds the set value generated by the coil, then overflow injection from ① to ③ . back pressure at the oil port ③ will be added 1:1 to the pressure set value
Dimension
0
How to Order
Please see the below order details for more information, Special design are availble welcome to contact us !
