Quick Details
-
Product name:
-

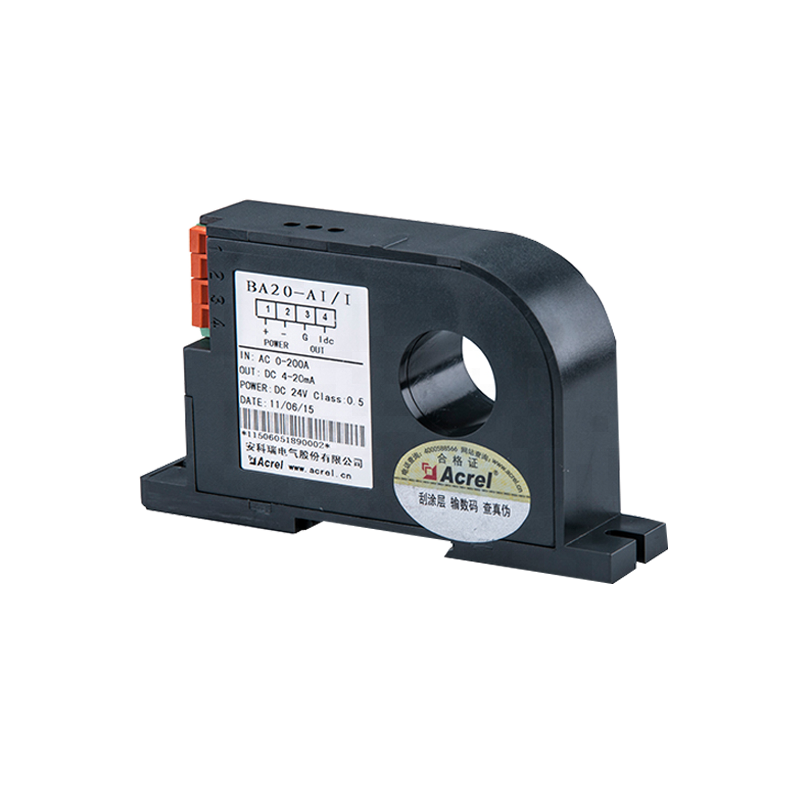

ac 0-200A input electromagnetic current transducer / current sensor
-
Application:
-
Industrial automation
-
Measure range:
-
AC0~(40~200)A
-
Power consumption:
-
≤1W
-
Accuracy:
-
0.5
-
output:
-
4~20mA
-
power supply:
-
DC 12v or DC 24v
-
Weight:
-
0.3kgs
-
Warranty:
-
2 years
-
Working temperature:
-
-25~70℃
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ACREL
-
Model Number:
-
: BA20-AI/V
-
Product name:
-
ac 0-200A input electromagnetic current transducer / current sensor
-
Application:
-
Industrial automation
-
Measure range:
-
AC0~(40~200)A
-
Power consumption:
-
≤1W
-
Accuracy:
-
0.5
-
output:
-
4~20mA
-
power supply:
-
DC 12v or DC 24v
-
Weight:
-
0.3kgs
-
Warranty:
-
2 years
-
Working temperature:
-
-25~70℃
Product Description
BA ac current sensor can measure ac current in power grid in real time by theory of electromagnetic induction,and adopts
precise constant current and linear compensation technology converting ac current or voltage into standard dc output
signal.
Functions and parameters
AC current transmitter parameters
*Input:AC0-200A
*Output:DC0-5V or DC0-10V
*Power supply:DC12V or DC24V
*CE approval
|
BA20-AI ACREL AC current transducer transmitter
|
|
|
|
|
|
|
||||||
|
Cable diameter
|
|
φ20mm
|
|
|
|
|
||||||
|
input measure range
|
|
AC 0~(40~200)A
|
|
|
|
|
||||||
|
nominal value output
|
|
DC 4~20mA,DC 0~20mA,DC 0~5V or DC 0~10V
|
|
|
|
|
||||||
|
overload protection
|
|
Max output ≤135%
|
|
|
|
|
||||||
|
load resistance
|
|
output is voltage≥1000Ω；output is current(power supply-4)/0.02Ω
|
|
|
|
|
||||||
|
power consumption
|
|
≤1W
|
|
|
|
|
||||||
|
Accuracy
|
|
0.5
|
|
|
|
|
||||||
|
temperature drift
|
|
≤200ppm/℃
|
|
|
|
|
||||||
|
response time
|
|
average value ≤350ms real value ≤100ms
|
|
|
|
|
||||||
|
Mount way
|
|
TS35 mm din rail or can be screw mounted on the cabinet
|
|
|
|
|
||||||
|
Power supply
|
|
DC12V 10~15V DC24V 18~30V
|
|
|
|
|
||||||
|
Environment
|
temperature
|
working temperature:-25℃+70℃；storage temperature:-40~+80℃
|
|
|
|
|
||||||
|
|
humidity
|
≤90% RH,non-condensing and non-corrosive enviroment
|
|
|
|
|
||||||
|
|
altitude
|
≤2500m
|
|
|
|
|
||||||
Dimensions and wirings
