Quick Details
-
Brand Name:
-
GANDIAN
-
Model Number:
-
GDV2-2-40A
-
Type:
-
GDV2-2
-
Rated Working Voltage:
-
110V
-
Operation Voltage Range:
-
AC80V-400V(Single Phase)
-
Rated Frequency:
-
50/60Hz
-
Rated Working Current:
-
40A/63A
-
Over-voltage Protection Value:
-
AC230V-AC300V
-
Under-voltage Protection Value:
-
AC140V-AC210V
-
Voltage Power Off Time:
-
1-400s
-
Over current Protection Value:
-
1-40A/1-63A
-
Over current Power Off Time:
-
1-30s
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GANDIAN
-
Model Number:
-
GDV2-2-40A
-
Type:
-
GDV2-2
-
Rated Working Voltage:
-
110V
-
Operation Voltage Range:
-
AC80V-400V(Single Phase)
-
Rated Frequency:
-
50/60Hz
-
Rated Working Current:
-
40A/63A
-
Over-voltage Protection Value:
-
AC230V-AC300V
-
Under-voltage Protection Value:
-
AC140V-AC210V
-
Voltage Power Off Time:
-
1-400s
-
Over current Protection Value:
-
1-40A/1-63A
-
Over current Power Off Time:
-
1-30s
Products Description
Product Introduction
Voltage protector is a multifunctional three-phase three-wire power supply system or monitoring and protection instrument for three-phase electrical equipment. It integrates three-phase voltage display, overvoltage protection, undervoltage protection, phase failure protection (phase failure protection), three-phase voltage imbalance protection, and phase sequence protection (phase dislocation protection). It can be used to monitor the important parameters (voltage, phase sequence, phase loss, phase balance) in the three-phase power supply system. It can send alarm signals in time for the abnormal conditions of the three-phase power supply that may endanger the safe and reliable operation of the power supply system and equipment, so that the control system can properly handle before the machine equipment is further damaged,
Product Features
1.
Overvoltage and overcurrent protection
2.
Flame retardant material,
3.
Automatic reset
5.
Over current Power Off Time
: 1-30s/1-400s
此处添加文字标题
|
Type
|
GDVX-2
|
GDVX-4
|
GDVAX-2
|
GDVAX-4
|
|||
|
Number of Poles
|
2P（36mm）
|
|
4P（72mm）
|
|
|||
|
Rated Voltage (VAC)
|
110/220V,220/230/240V AC
|
|
110/220V,220/230/240V AC
|
|
|||
|
Rated Working Current(A)
|
40A/63A/80A
|
|
63A/80A/90A/100A
|
|
|||
|
Over-Voltage Cut-Off Value (VAC)
|
230-300V adjustable
|
|
390-500V adjustable
|
|
|||
|
Under-voltage Protection Value
|
110-210V adjustable
|
|
140-370V adjustable
|
|
|||
|
Voltage Power Off Time
|
1-500s
|
|
|
|
|||
|
Over current Protection Value
|
/
|
|
1-40A/1-63A/1-80A/1-100A
|
|
|||
|
Over current Power Off Time
|
/
|
|
1-30s
|
|
|||
|
Recover time (Starting Delay Time)
|
/
|
|
1-500s
|
|
|||
|
Own Power Consumption
|
≤2W
|
|
|
|
|||
|
Motor Mechanical Life
|
≥100,000 Times
|
|
|
|
|||
|
Connections
|
Cables or pin/fock type busbar
|
|
|
|
|||
|
Functions
|
Over voltage,Under voltage,Time delay,Auto reconnect
|
|
Over voltage,Under voltage,Over current,Time delay,Auto reconnect
|
|
|||
Product Paramenters

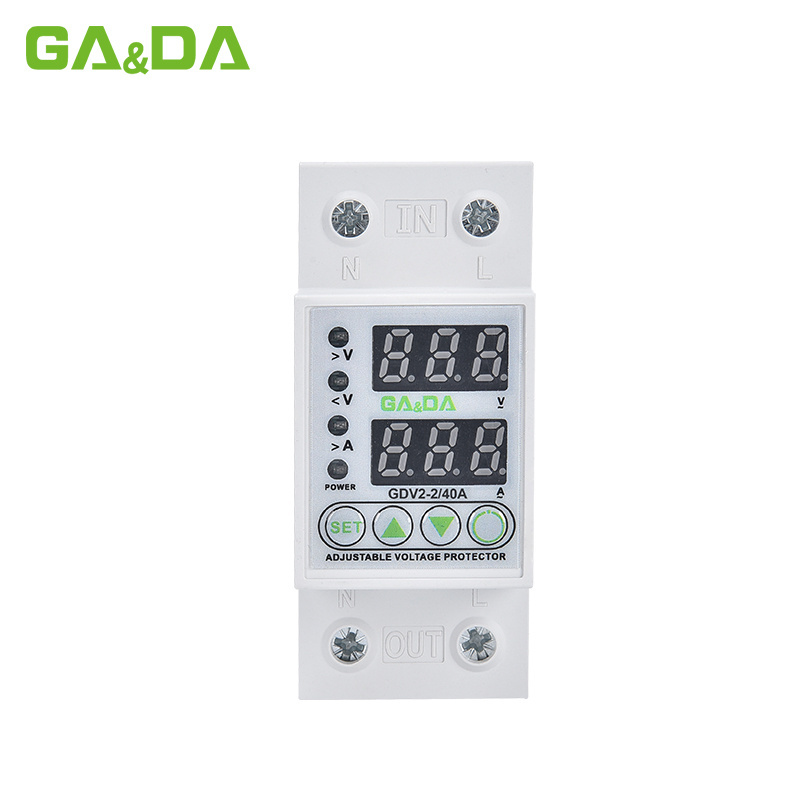

Auto-recovery adjustable voltage current protector
It can be matched with 35mm guide rail and installed in all distribution boxes
Excellent chips make product performance more stable
Recommend Products
Certifications
Manufacturing Technique
Professional Electrical Equipment Laboratory
Our company attaches great importance to technological research and development, and strives to build an automated electrical equipment and digital production line base that enhances traditional industries through automation, gathering a highly skilled technical team; Committed to building a professional lightning protection electrical laboratory. Ensuring the stability and innovation of Gandian products.
---Lightning Impact Test Room: Conduct various waveform impact tests on lightning protection devices, such as 8/20, 10/350, and 1.2/50us;
---SPD safety laboratory: Conduct thermal stability and TOV fault tests, with a test current of 1A-300A;
---Environmental laboratory: salt spray, vibration, high and low temperature tests;
---Physical and chemical laboratory: material metallographic analysis, spectral analysis, RoHs analysis;
---Low voltage test room: leakage marking index, withstand voltage test, flame retardant level;
---Mechanics laboratory: pendulum impact, tensile force, pressure, torsion, hardness, and transportation vibration tests.
Specialized production process technology
Our company independently develops multiple advanced automatic production and processing lines, plastic injection molding lines,hardware stamping lines, and multiple assembly lines; Integrating automatic equipment such as automatic gluing, automatic soldering, automatic film pressing, transfer printing, laser marking, automatic detection and uploading of data, and automatic sealing and packaging into one; Form a fully automated production line, create a process technology that conforms to Gandian Lightning Protection's own technology, lean production management, and rigorous craftsmanship spirit, which runs through every
link of our production and manufacturing. Carefully control every production process, strictly implement every standard specification, and achieve controllable and traceable quality of each product.
link of our production and manufacturing. Carefully control every production process, strictly implement every standard specification, and achieve controllable and traceable quality of each product.
